5.5.4. Turnout frog polarization
With the SwitchPilot Extension Module turnout frog polarization
can be set very easy.
Wiring the outputs
5.5.3. LGB® Turnout drive
The wiring is as shown in Fig. 11. Unless reprogrammed, the mo-
tors are supplied with electricity for approx. 520 msec and are then
switched off to prevent overheating of the drive.

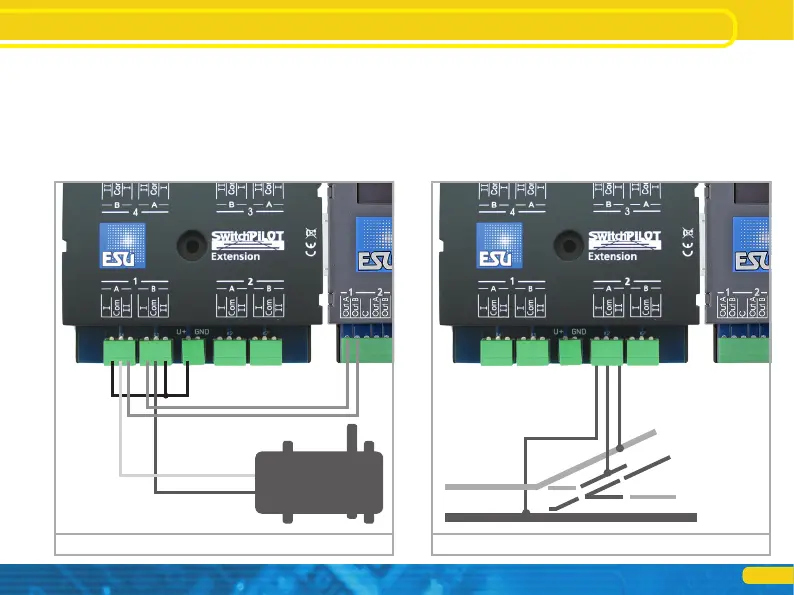

Figure 11: LGB® Turnout drive
Figure 12: Polarization with SwitchPilot Extension
OutA OutB
