8
4.4.4. K84 Operation (Bistable continuous operation)
In K84 mode, the two outputs are alternately switched on and
off: When pressing the first button (red) on the command station,
the Output Out A is turned on. It remains active until pressing the
assigned button (green) activates the output Out B of the same
output group. Out A and Out B behave like a change-over switch.
Optionally, the output can also be slowly dimmed up and dimmed
down (so-called „zoom” for incandescent lamp simulation).
The K84 operation is well suited for lighting applications or twoa-
spect daylight signals.
The logic of this mode of operation corresponds to the Märklin®
k84 decoder.

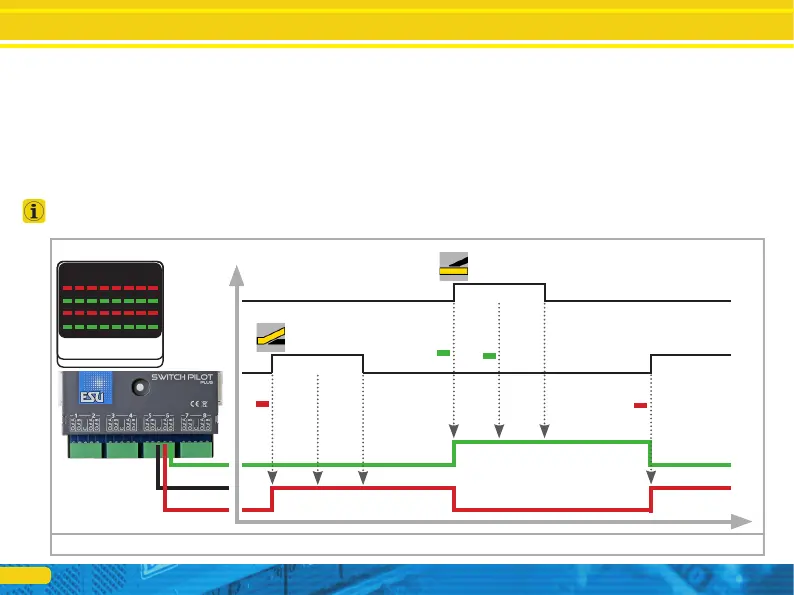

Figure 3: K84 operation (Bistable continuous operation)
keyboard
1 2 3 4 5 6 7 8
9 10 11 12 13 14 15 16
time
on
off
1
RED
ON
1
RED
OFF
1
(RED
ON)
(Lenz)
1
GREEN
ON
1
(GREEN
ON)
(Lenz)
1
GREEN
OFF
1
RED
ON
Operating modes
