GB
MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

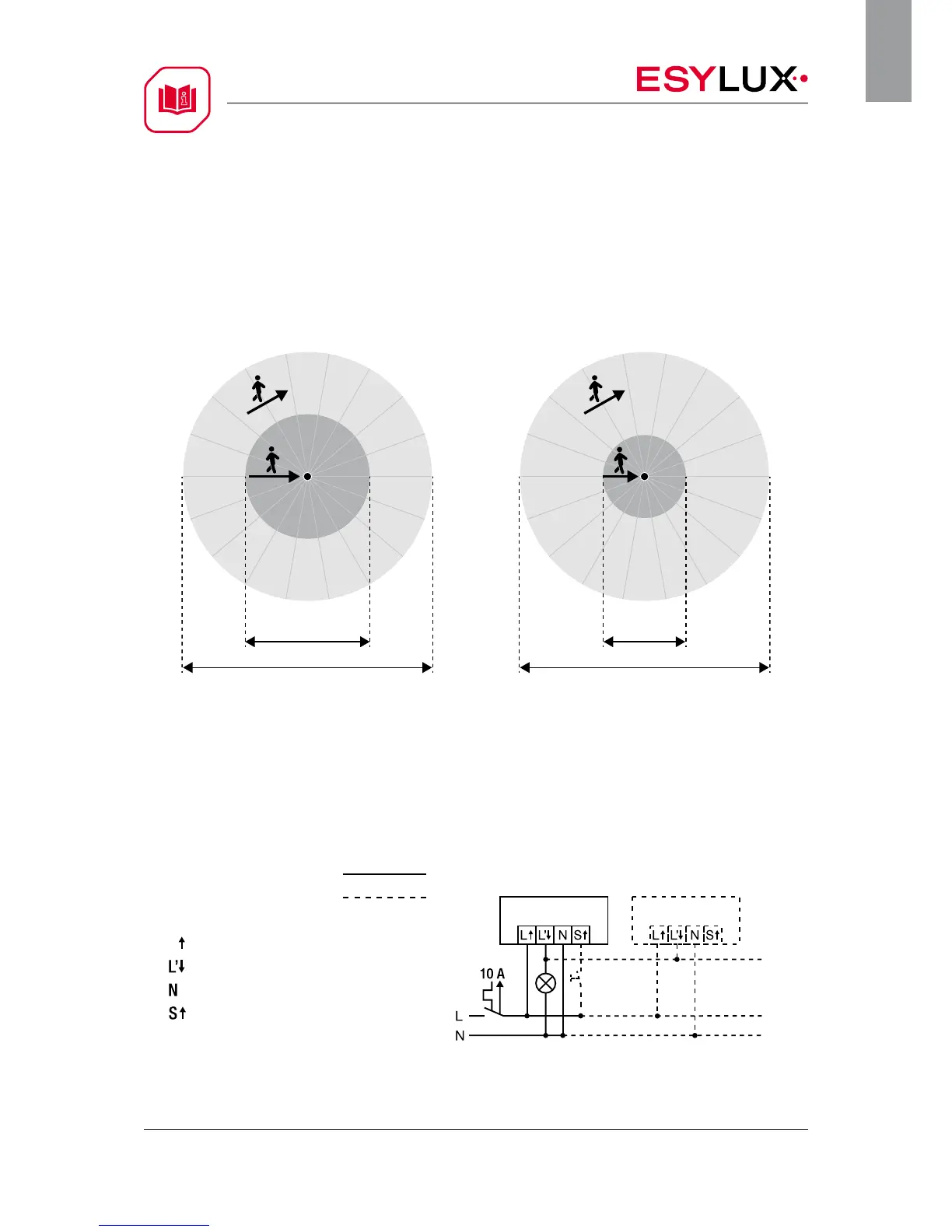

• Specifications regarding the range of the detector relate to an ambient temperature
of approx. 20°C
• Movement crossways to the detector is optimal for triggering the detector; head-on
approaches to the detector are more difficult to detect and therefore the range of
the detector is significantly reduced
• The detector should be positioned depending on the available space and usage
requirements
• Make sure that the detector has a clear line of sight, as infrared beams cannot
penetrate solid objects
• Connect the detector in accordance with the circuit diagram
Single connection
Parallel connection
L Phase, 230 V
Lighting
Neutral conductor
Push button
24 m
8 m
