ESYLUX MD 360i/24 Basic - Masking the Field of Detection; 5 Activation; Overview of Factory Settings

OPERATING INSTRUCTIONS
7 / 17
GB
MD 360/8 Basic MD 360i/24 Basic MD 360/24 Basic SMB
MD 360i/8 Basic MD 360/8 Basic SMB MD 360i/24 Basic SMB
MD 360/24 Basic MD 360i/8 Basic SMB

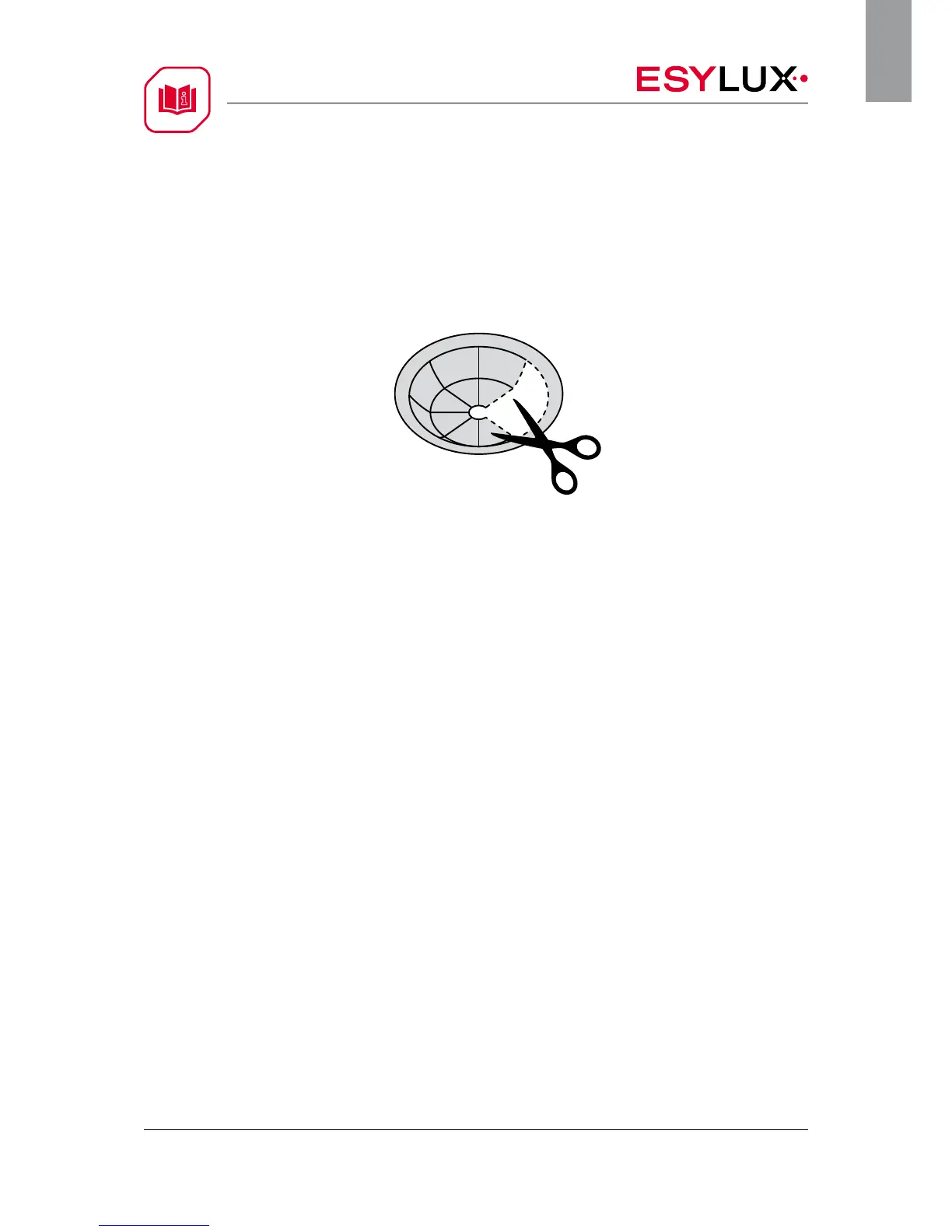

4.1 Masking the field of detection
Use the lens mask provided to mask out specific areas of detection.
5 Activation
Connect the power supply.
A warm-up phase of 25seconds is initiated. The red LED flashes.
During this time, the lighting is switched on.
5.1 Overview of factory settings
Factory settings
Light value approx. 100lux
Switch-off delay time 5 min.
Sensitivity 100 %
The manual setting element values are active on delivery. The values can be
overridden at any time by programming the detector using one of the optional remote
controls.
