Never sit or stand
on the amputee leg
support. When lift-
ing the wheelchair,
remove the amputee
leg support, swing
the other legrest in
under the seat (or
remove it) and lift us-
ing the frame (lower
or upper part).
The amputee legrest is settable
in height, It can also be adjusted
forwards, sideways and in angle.
It can be used both on the left
and right side of the chair.
- Angle and sideways: loosen
the lever under the plate.
- Forwards/backwards: loosen
the knobs under the plate.
- Height: use the Allen key
provided.
Tools: 4 mm Allen key
(provided).
9 Settings legrests
9:4 Continuously angle-adjustable legrest (option)

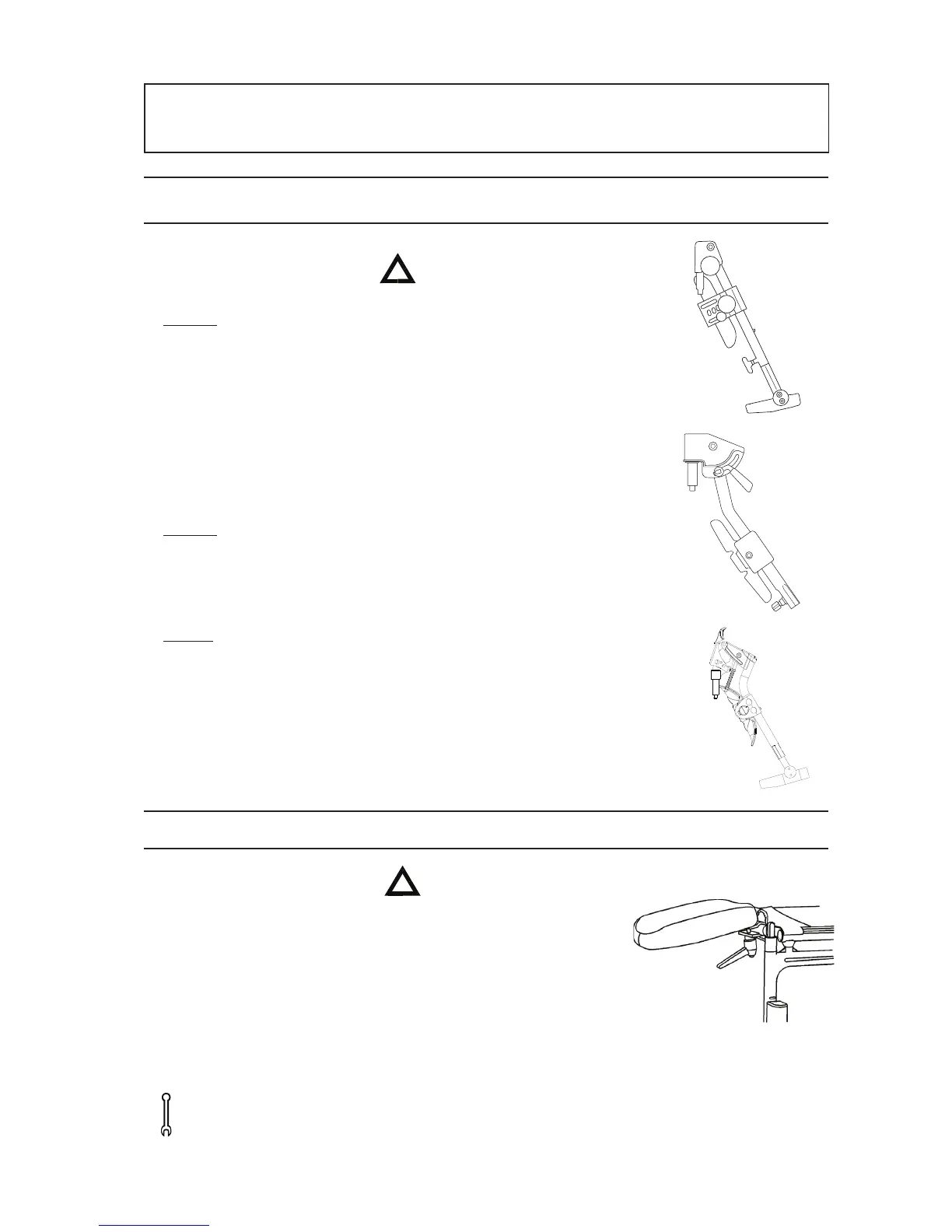

There are three types of angle
adjustable legrests.
Mod. 1: With or without plush
covered calf support which
is adjustable in height, depth
and angle. The calf support
can also be mounted as a knee
stop.
(!) See assembly instructions
supplied for mounting the calf
support.
Mod. 2: With foldable calf
support which is adjustable in
angle, height and sideways
Calf support in polyurethane.
Mod. 3: With polyamide or
plush calf support that is
hinged and angle-adjustable.
The calf support can be fitted
at 2 different heights on the
legrest tube. With seat width
35 and 37,5 calf support of
polyamide can only be used on
one side.
9:5 Amputee legrest (option)
Never stand on the footrests
as you may tip the chair. When
lifting a wheelchair, remove the
legrests and lift using the frame
(lower or upper part).
