Page 6 of 20 BM15101 Molift NOMAD English - Rev. M 23-08-2013
Technical data
Weight, total:
6,8 kg
Material:
Fibre armoured plastic and aluminium
Motor:
24 VDC
Battery:
26,4 V NiMH 2,2 Ah (Type EMP 2200CS)
Art.no 1221115
Battery charger:
Type 2215 10-20 cells
Protection:
IP24
Lifting capacity, SWL (Safe Working Load):
255 kg (560 lbs), adjustable to lower loads
Lifting height:
2 meters
Lifting Speed:
23 mm/sec w/load,
26 mm/sec without/load
Number of lifts with fully charged battery:
approx 60 (standard lifts 75 kg, 50 cm)
Sound level, max. A-weighted sound power level:
L
WA
= 68,8 dB
Operating forces:
Buttons on hand control: 3,4 N
Buttons on lifter: 1,3 N
Measurements:
522 x 200 x 330 mm (LxBxH)

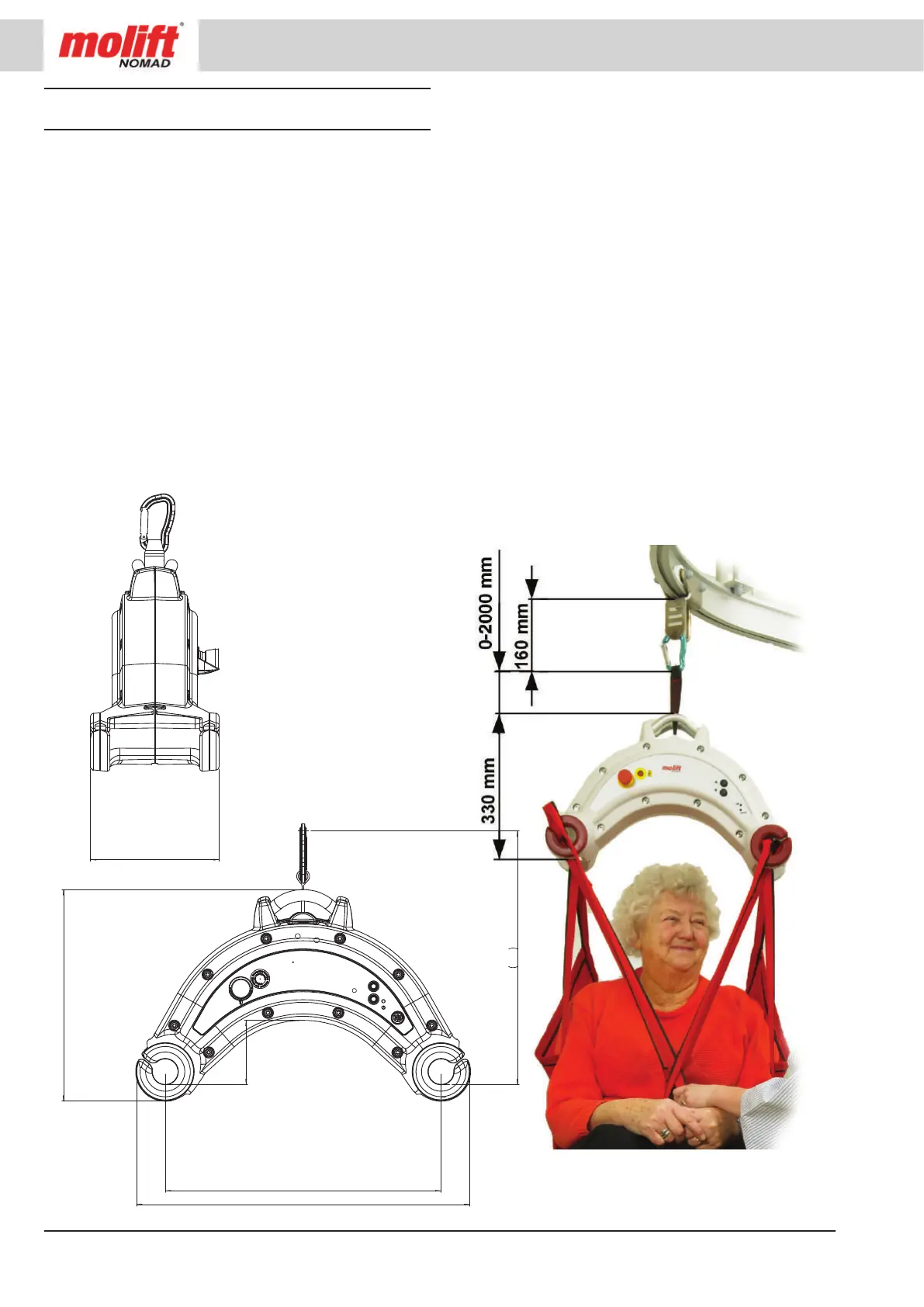

Measurements in illustrations below are in milli-
metres.
Draw. no.
Description.Qty.
Bill of materials:1
Material.
Comment.
Dimension/
Pos.
14-001 BOM.xls
Drawing number:
Drawing name:
Size
Designed/Drawn: Date:
Scale:
Projection:
E
C
B
Procedures:
D
- 14-P02 Control scheme
All bolts to be tightened with 2,5Nm (10x),
- 14-P01 Assembly instructions
Apply LOCTITE 243 on 5 bolts.
(Bolts secure the frame)
Draw. no.
Description.Qty.
Bill of materials:1
Material.
Comment.
Dimension/
Pos.
14-001 BOM.xls
Drawing number:
Drawing name:
Size
Designed/Drawn: Date:
Scale:
Projection:
E
C
B
Procedures:
D
- 14-P02 Control scheme
All bolts to be tightened with 2,5Nm (10x),
- 14-P01 Assembly instructions
Apply LOCTITE 243 on 5 bolts.
(Bolts secure the frame)
