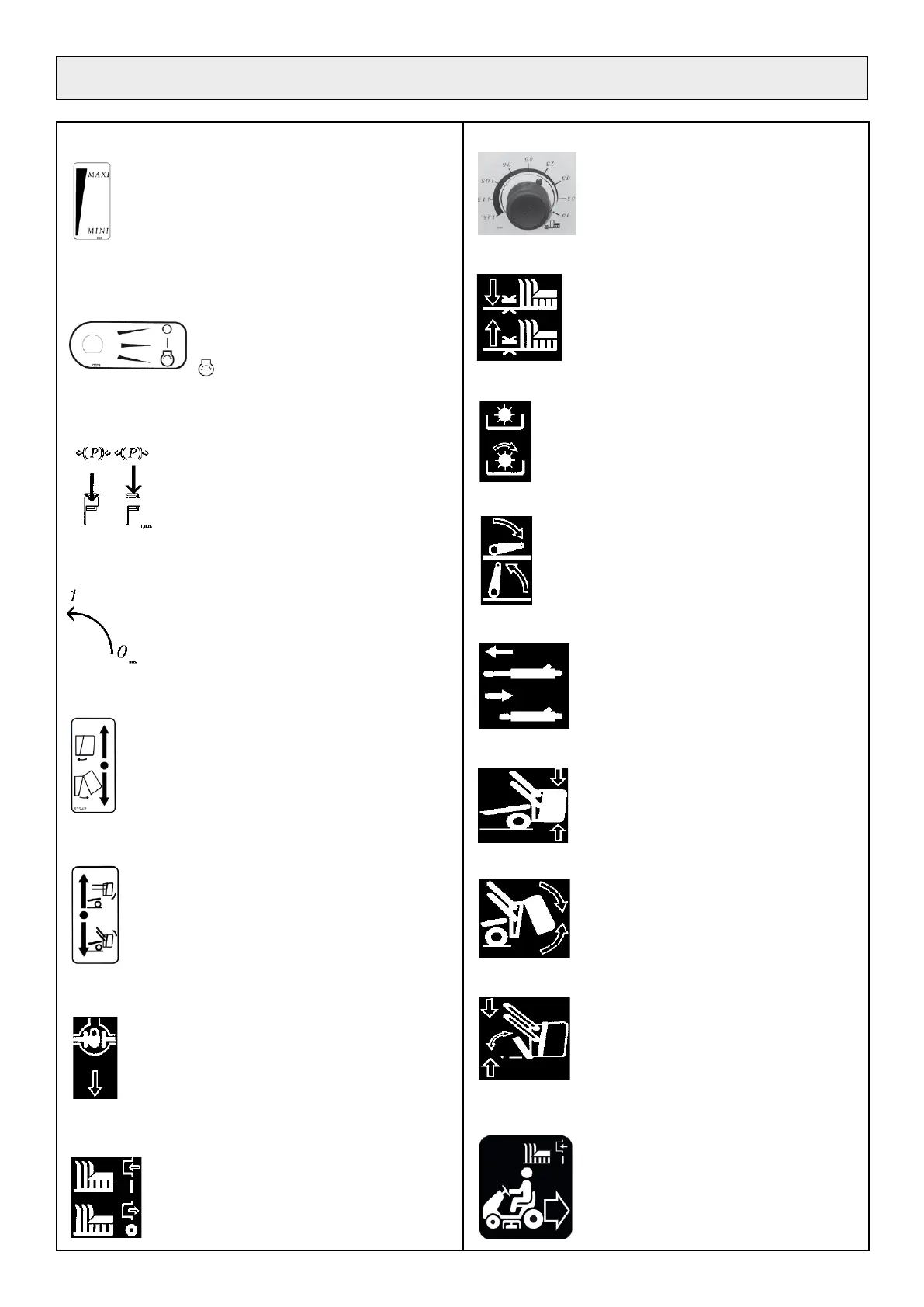

ENGINE SPEED
Indications for the control of the engine speed
MAXI : Engine at full throttle
MINI : Engine at idling speed
STARTING THE ENGINE
0 : Engine off, power switched off
I : Power switched on, pre-heating
Starting the engine
PARKING BRAKE
=>((P))<= The arrow indicates the direction of
movement of the brake lever in order to
engage the parking brake
=>((P))<= The arrow indicates the direction of
movement of the brake lever in order to
disengage the parking brake
BY PASS
1 : Hydraulic transmission engaged
0 : Hydraulic transmission released
OPENING / CLOSING THE GRASSBOX
Lever up : the grassbox opens
Lever down : the grassbox closes
RAISING / LOWERING THE GRASSBOX
Lever up: the grassbox goes up
Lever down: the grassbox goes down
DIFFERENTIAL
The arrow indicates the locking position of
the differential.
OPERATING THE CUTTER
I : Cutter switched on
0 : Cutter switched off
CUTTING HEIGHT
Indicates the cutting height in mm (measured on
hard and flat ground)
CUTTING HEIGHT ADJUSTMENT
= Cutting deck goes down
= Cutting deck goes up
FRONT POWER OUTLET
Hydraulic circuit of front power outlet disengaged.
Hydraulic circuit of front power outlet engaged.
HYDRAULIC POWER LIFT
Slow down of power lift
Power lift goes up
ACCESSORY RAM
Double acting displacement up
Double action displacement down
GRASSBOX HIGH LIFTING
Grassbox goes down
Grassbox goes up
GRASS BOX EMPTYING
Closing the box
Opening the box
CHANNEL EMPTYING
Opening
Closing
CONTROL SWITCH « MOW IN REVERSE »
