Mounting

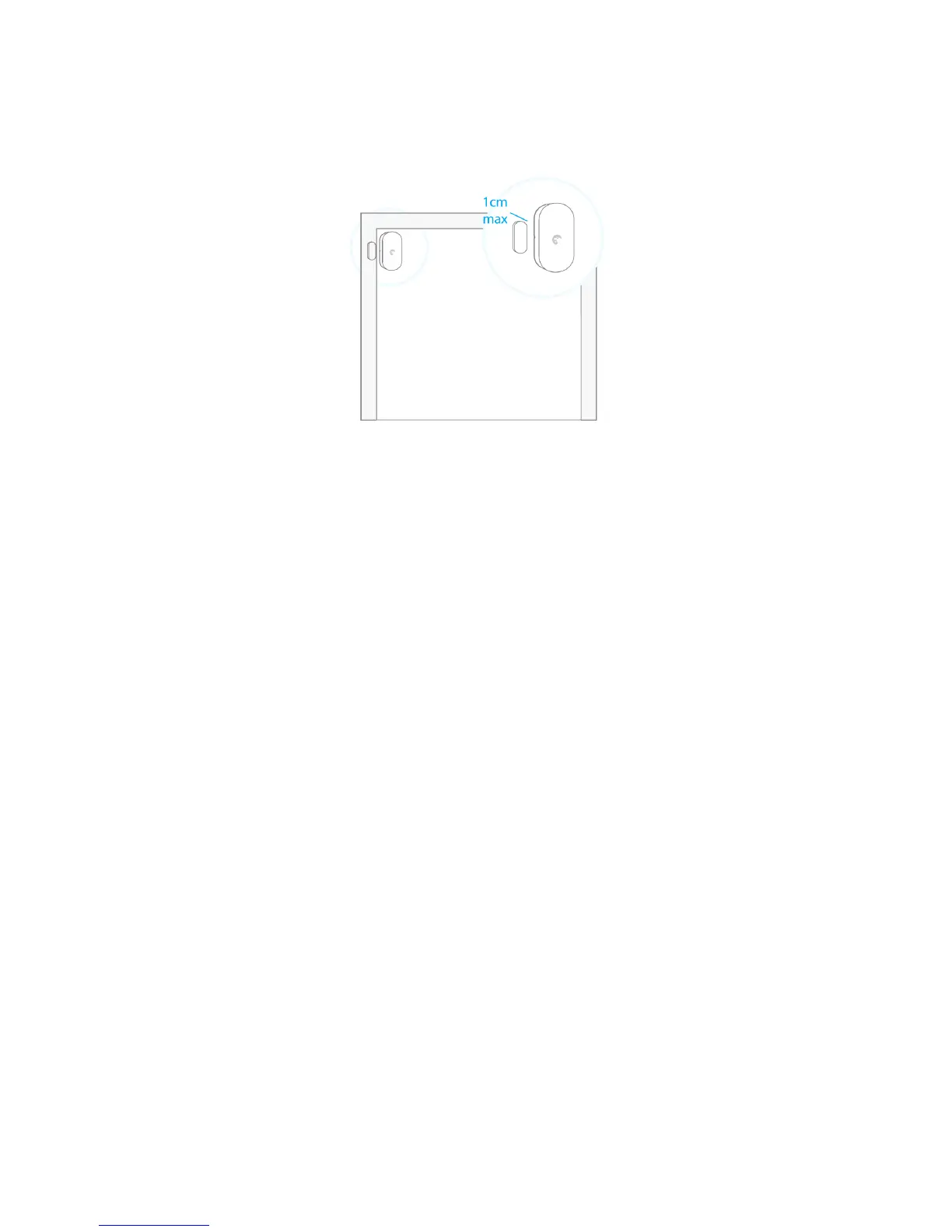

Mount the magnet 1 cm away from the transmitter and secure the transmitter and magnet
with double-sided tape on the door and the door frame respectively.
Connection to your alarm system
The detectors in your kit are already connected and ready to use. If you have deleted the
detector from the control panel, you can reconnect it as follows:
1.Press once on the Connection button located on the control panel.
2.Separate the magnet of the detector from its transmitter. The control panel will beep
once acknowledging the connection. If the control panel beeps twice, the detector was
already connected.
Specifications
Power supply: CR2477 3 V Battery x1
Static current: ≤ 10 uA
Alarm current: ≤ 15 mA
Transmitting distance: ≤80 m (in open area)
Radio-frequency: 433.92 MHz (±75 KHz)
Housing material: ABS plastic
Operating conditions: Temparature: -10°C~55°C, Relative humidity: ≤ 80%
(noncondensing)
Dimensions (LxWxH): Transmitter: 55.7 x 30.3 x 16 mm, Magnet: 25 x 10 x 9 mm
LED indications
Blinks once: The door or window is open/close and the transmitter sends a signal to the
control panel.
Blinks quickly: Low power indication: the batteries must be replaced.
