ETQ DG4LN - Page 32

32

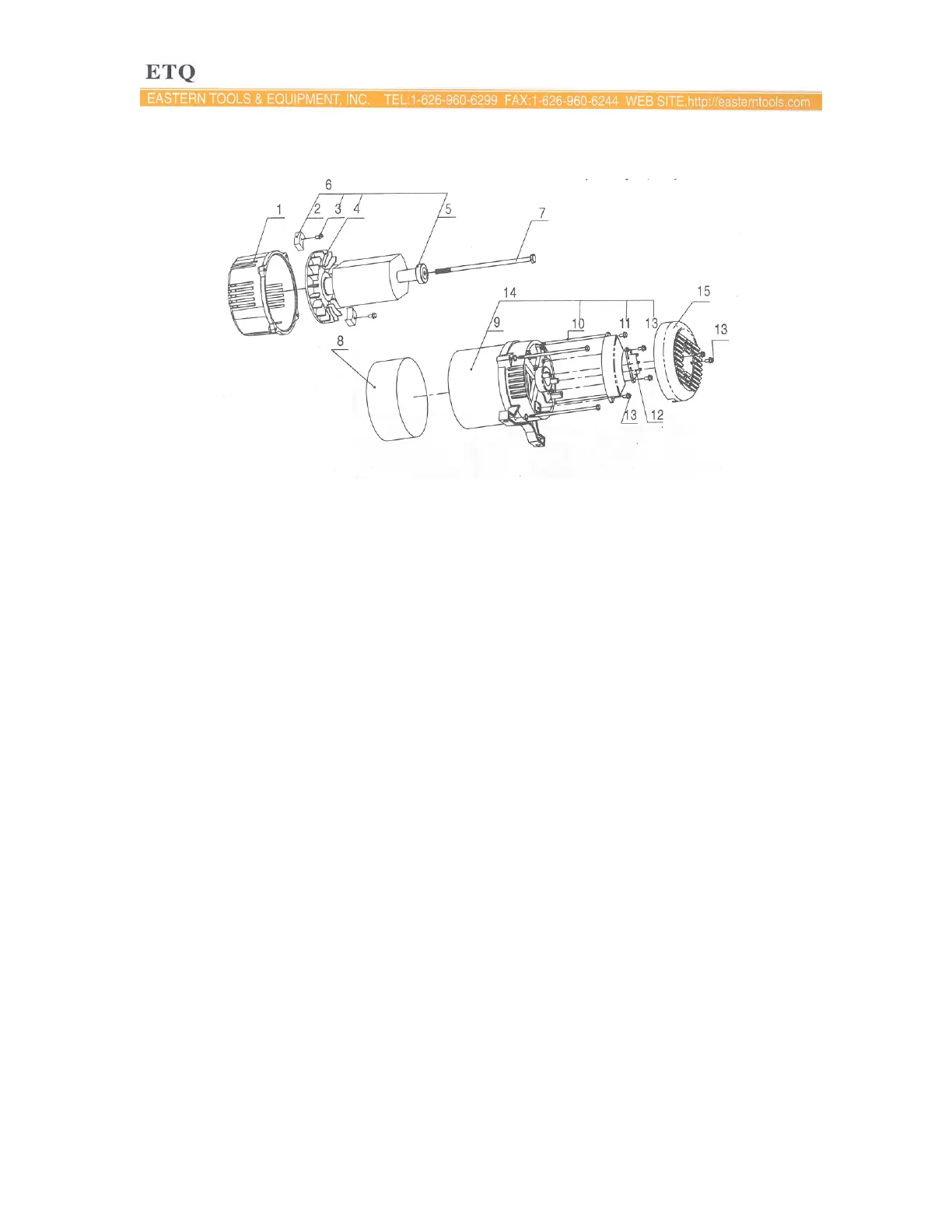

Figure 5-5. Generator head assembly
Table 5-4. Please refer to figure 5-5
Number Part Description Quantity Part Number (4LN / 6LN)
1 Front end cover 1 ETQ4LN64 / ETQ6LN64
2 Diode 2 ETQ4LN65 / ETQ6LN65
3 M4 x 8 Bolt 2 ETQ4LN66 / ETQ6LN66
4 Fan Blade 1 ETQ4LN67 / ETQ6LN67
5 Bearing 1 ETQ4LN68 / ETQ6LN68
6 Rotor Unit 1 ETQ4LN69 / ETQ6LN69
7 Center bolt 1 ETQ4LN70 / ETQ6LN70
8 Motor cover 1 ETQ4LN71 / ETQ6LN71
9 Stator 1 ETQ4LN72 / ETQ6LN72
10 Long bolt 4 ETQ4LN73 / ETQ6LN73
11 Capacitor 1 ETQ4LN74 / ETQ6LN74
12 Wiring Seat 1 ETQ4LN75 / ETQ6LN75
13 M5 x 15 Bolt 6 ETQ4LN76 / ETQ6LN76
14 Stator Unit 1 ETQ4LN77 / ETQ6LN77
15 Dust Cover 1 ETQ4LN78 / ETQ6LN78
