ETQ DG4LN - Page 33

33

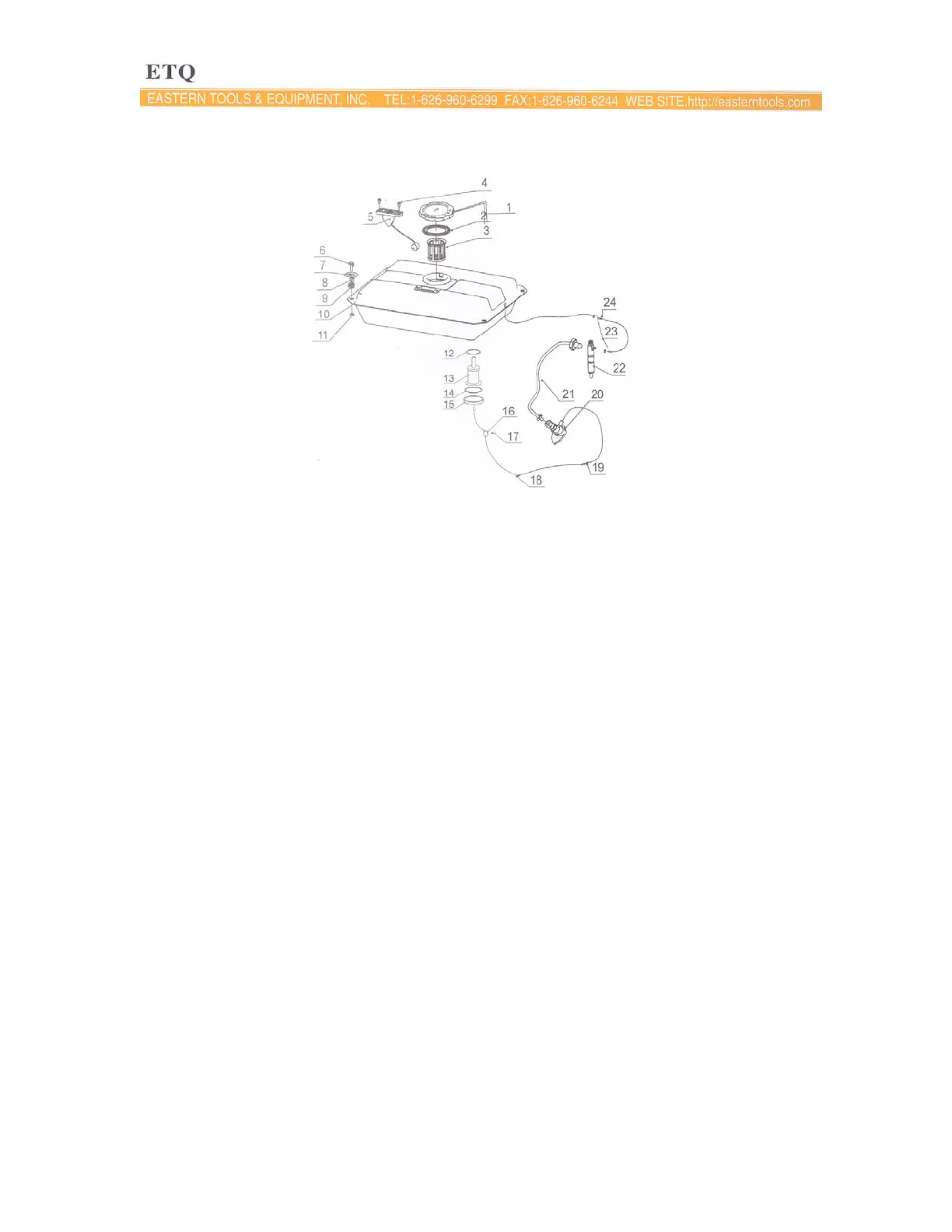

Figure 5-6. Fuel system components
Table 5-5. Please refer to figure 5-6.
Number Part Description Quantity Part Number (4LN / 6LN)
1 Fuel Cap 1 ETQ4LN79 / ETQ6LN79
2 Seal 1 ETQ4LN80 / ETQ6LN80
3 Filtering cup 1 ETQ4LN81 / ETQ6LN81
4 M5 x 10 screw 2 ETQ4LN82 / ETQ6LN82
5 Fuel lever indicator 1 ETQ4LN83 / ETQ6LN83
6 M6 x 25 Bolt 4 ETQ4LN84 / ETQ6LN84
7 Large flat washer 6 4 ETQ4LN85 / ETQ6LN85
8 Fuel tank lining 4 ETQ4LN86 / ETQ6LN86
9 Shock absorbing gasket 4 ETQ4LN87 / ETQ6LN87
10 Fuel tank 1 ETQ4LN88 / ETQ6LN88
11 M6 Nut 4 ETQ4LN89 / ETQ6LN89
12 O ring seal 1 ETQ4LN90 / ETQ6LN90
13 Fuel tank filter 1 ETQ4LN91 / ETQ6LN91
14 O ring gasket 1 ETQ4LN92 / ETQ6LN92
15 Fuel filter cover 1 ETQ4LN93 / ETQ6LN93
16 Cover 1 ETQ4LN94 / ETQ6LN94
17 Wing nut 1 ETQ4LN95 / ETQ6LN95
18 Fuel line 2 ETQ4LN96 / ETQ6LN96
19 Fuel inlet pipe 1 ETQ4LN97 / ETQ6LN97
20 High pressure fuel pump 1 ETQ4LN98 / ETQ6LN98
21 High pressure fuel pipe 1 ETQ4LN99 / ETQ6LN99
22 Fuel injector 1 ETQ4LN100 / ETQ6LN100
23 Overfill tube 2 ETQ4LN101 / ETQ6LN101
24 Fuel overfill pipe 1 ETQ4LN102 / ETQ6LN102
