HANDLE AND WHEEL KIT ASSEMBLY
The wheel kit mist be assembled when there are
no liquids in the generator.

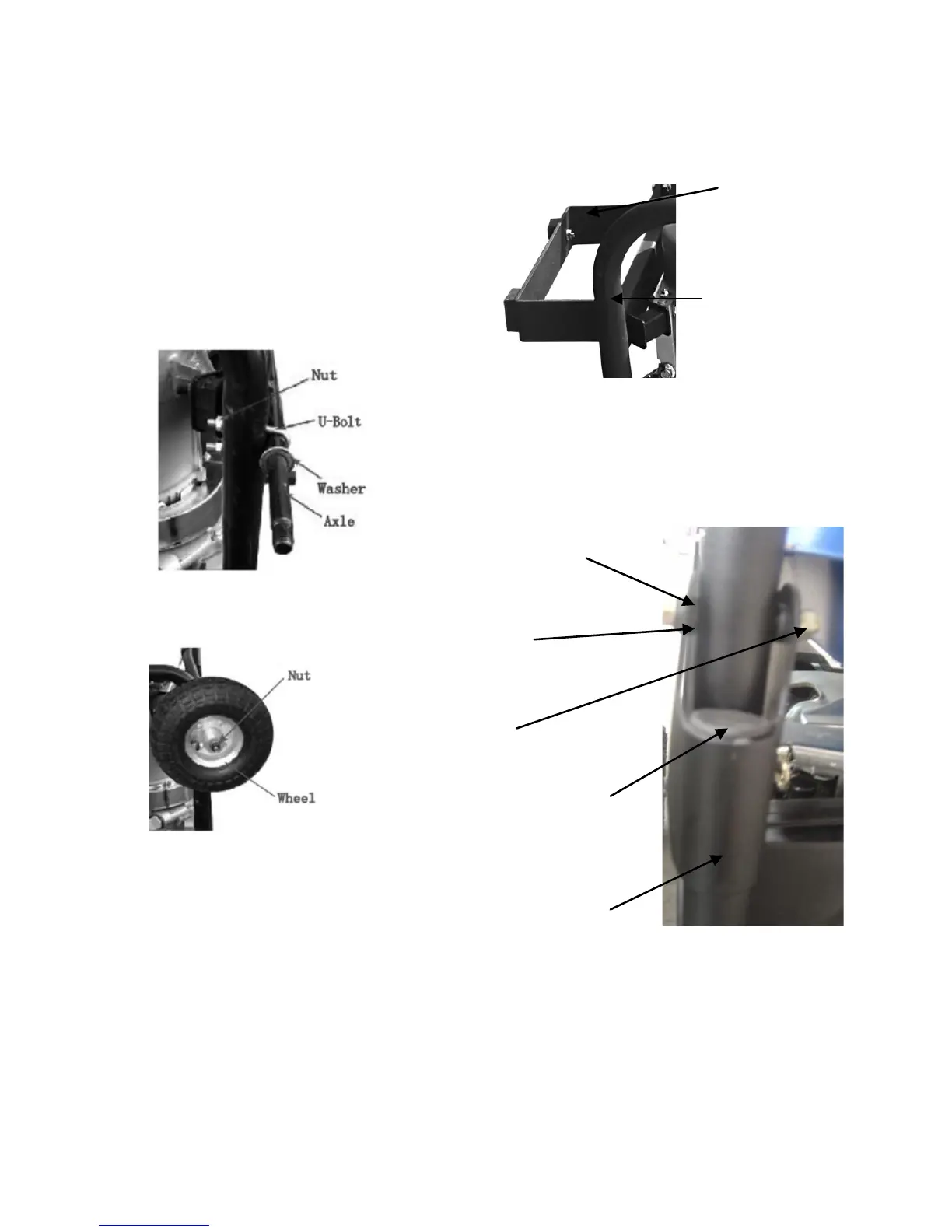

1. Place the generator on its side. (engine side
down).
2. Secure the axle with two u bolts.
3. Screw on the nuts onto the u-bolts to secure
the axle.
4. Place the washer onto the axle.
Place the wheel onto the axle.
Tighten down the wheel securely with a bolt.
1. Use the bolt and nut provided to secure the
foot tightly onto the frame of the generator.
2. Flip the generator back to its normal upright
position.
3. Now you are ready to install the handle bars.
1. Put the grips onto the handle bars.
2. Secure the bracket bolt and nut.
3.Make sure that the bracket is nicely tightened
down.
4. Place the handle bar into the bracket.
5. Secure with a bolt and nut
