• Parking garage placement
In the parking garage placement, the specific installation of supply cables needs to be
considered. These cables are usually routed on the ceiling of the parking garage. A wall mount
charging station is also available from the manufacturer. It can be equipped with one charging
socket and mounted directly to a concrete wall or column.
3.4.3 Possible parking arrangements
The charging station enables two vehicles to charge at the same time, one on each charging
spot. Accordingly, an appropriate number of parking places need to be maintained in the direct
vicinity of the station.

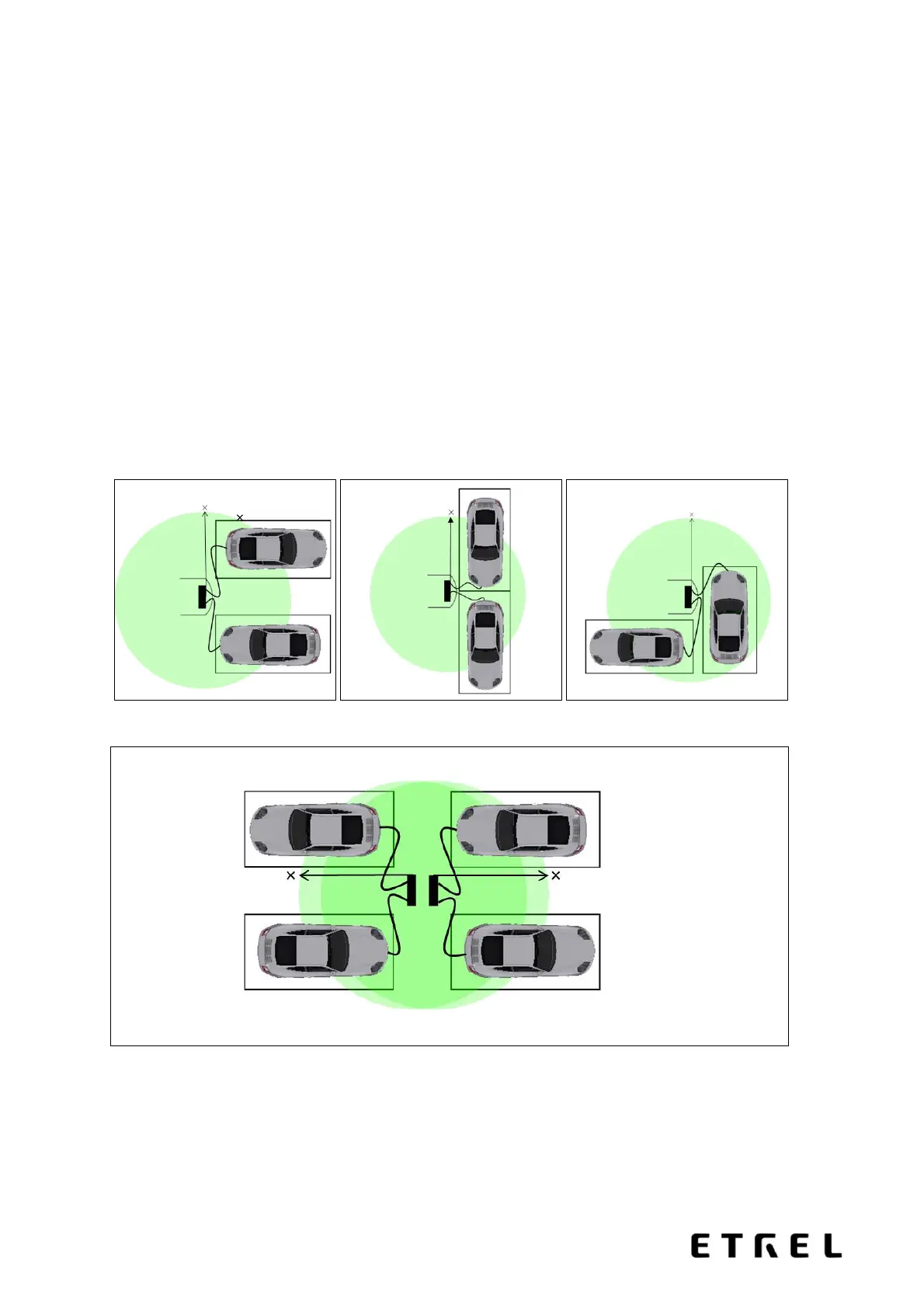

Figure 3: Possible parking arrangements
X = min. 2,5 m (standard cable length).
