accordingly, so that the rear side of the charging station (anchoring element) is aligned with the
front side of the rear arches of the safety arches.
4.5 Cabling
4.5.1 Insertion of cables through the installation pipe
After the installation pipe is built into the concrete foundation, it is used for cabling and
connection of the charging station. The concrete foundation must be left to dry for at least two
days before the cables can be inserted in the installation pipe.

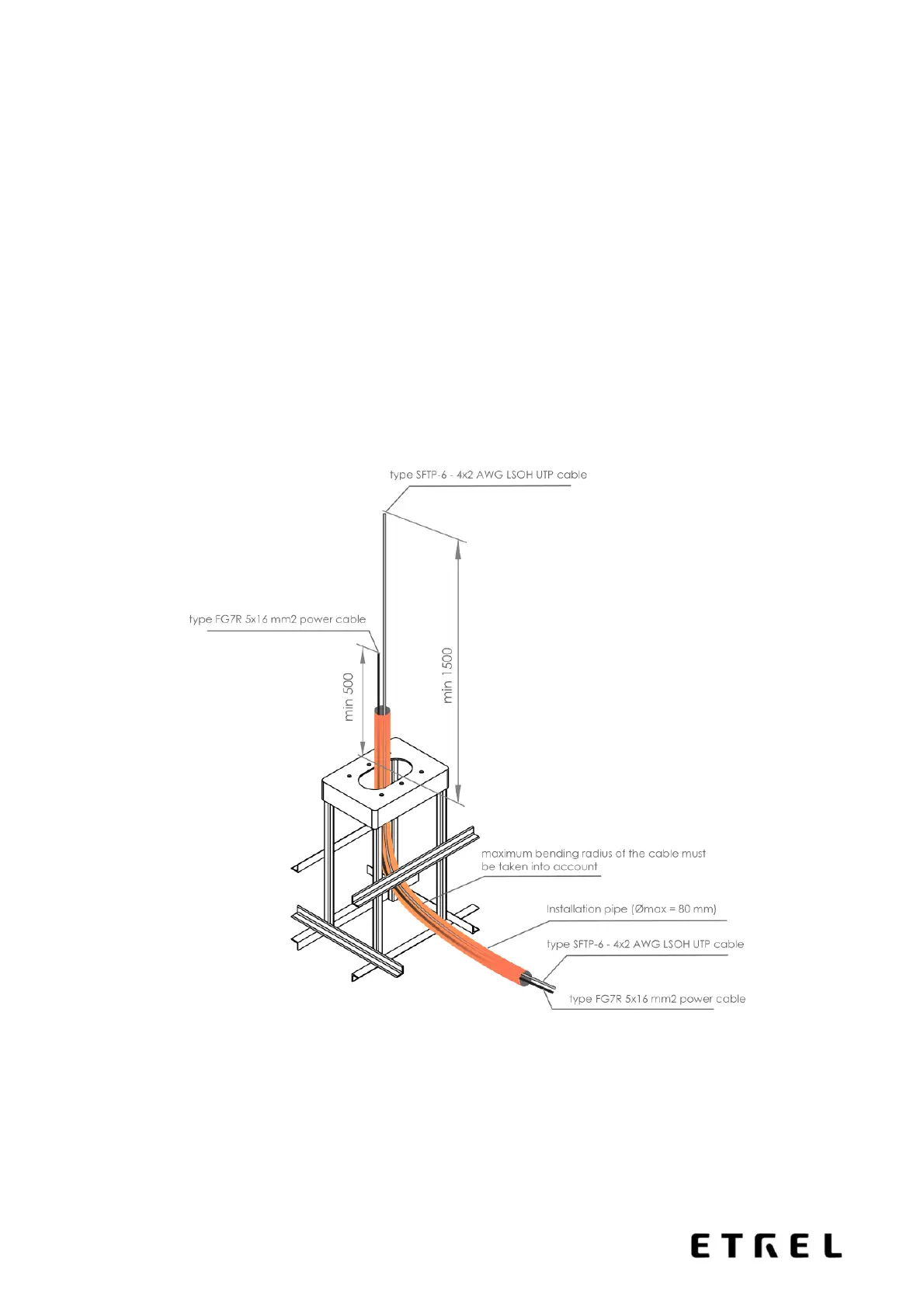

Figure 15: Placing of installation pipe and insertion of cables
Supply cables are routed through the underground anchoring structure with the use of
installation pipe as shown in the figure above. The exact way of cable routing depends on the
