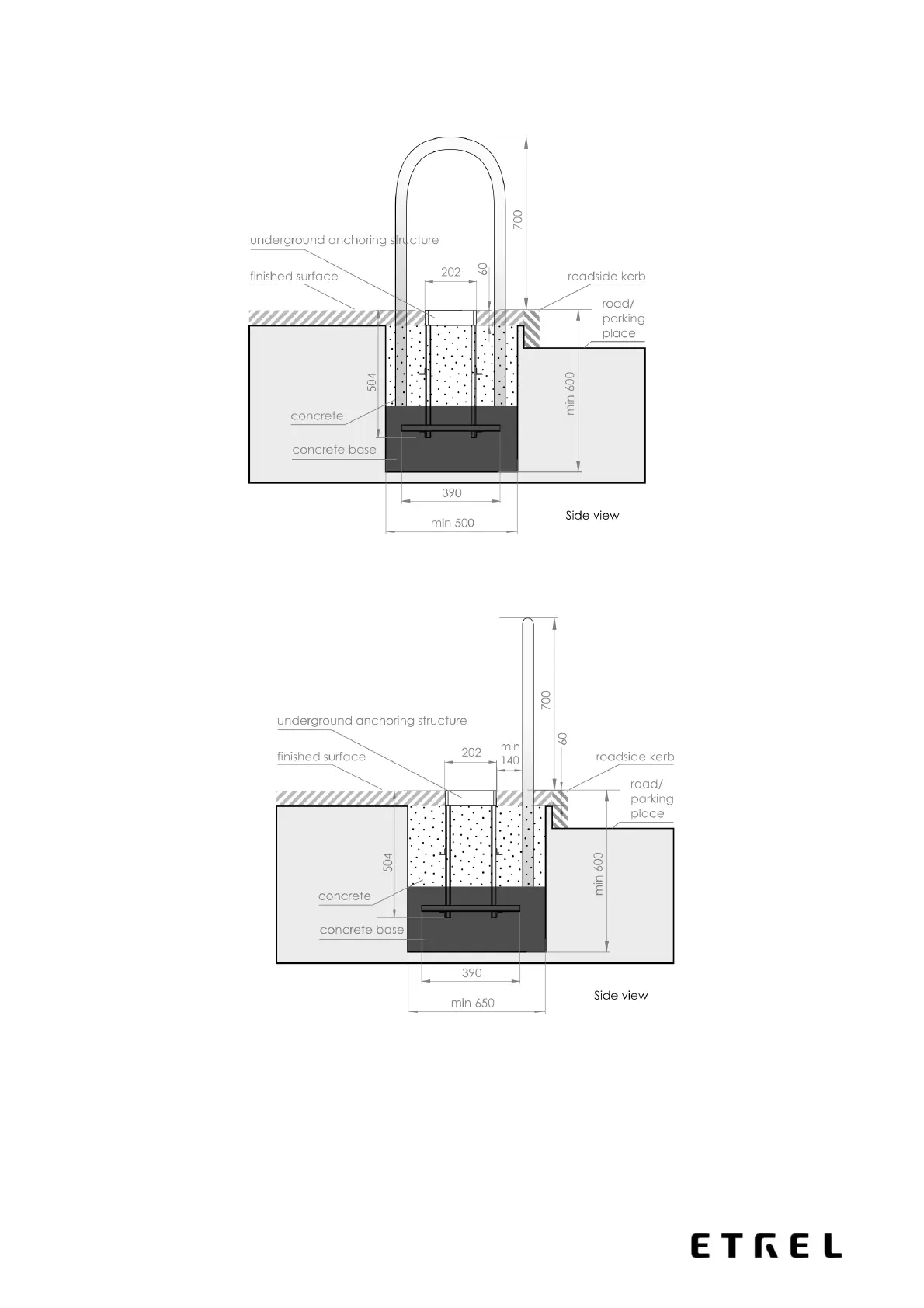

Figure 13: Transversal section of the excavation and safety arches on the kerb with two safety arches
Figure 14: Transversal section of the excavation and safety arches on the kerb with one safety arch
The figures above show a transversal section of the excavation when the charging station is
placed on the pavement and combined with safety arches. The safety arches need to be placed
as close to the roadside kerb as possible. The underground anchoring element is moved back
