4 Construction works before installation
4.1 Underground anchor

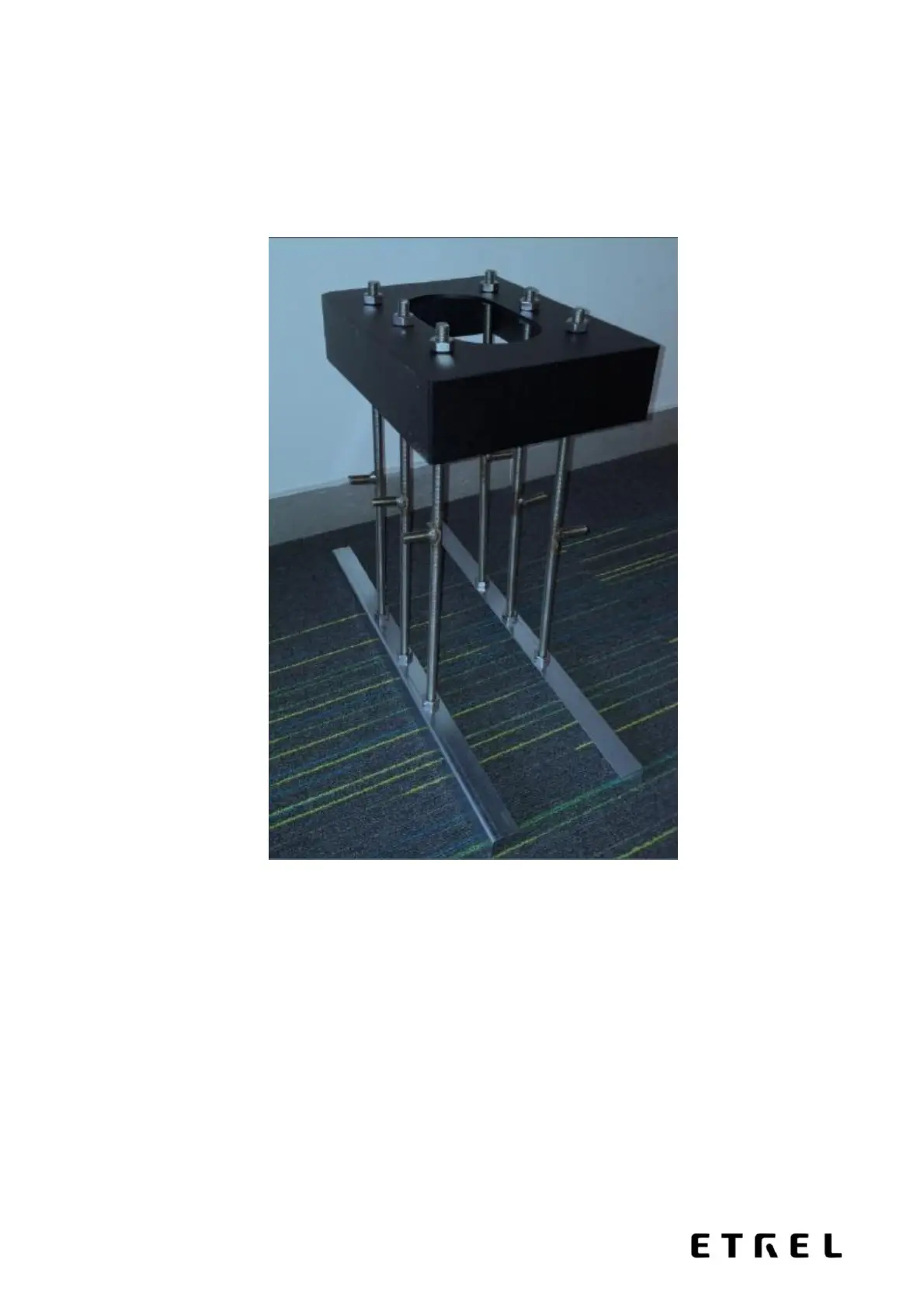

Figure 5: Assembled underground anchoring element
The self-standing charging station set contains an underground anchoring element which has a
double function:
• it supports the weight of the charging station, and
• it prevents any vertical incline of the charging station.
The dimensions of the underground anchoring element are:
• Width: 190 mm,
• Length: 470 mm,
