18
• Basic depth without reinforcing steel: 380 mm.
The underground anchoring element is made of stainless steel.
The underground anchor is optimised for shipping and needs to be assembled before
construction by following the steps below:
1. Screw nuts on each anchor rod. You have six (6) rods in the anchor package. Be careful
to observe the nut positions on the rod as pictured below:

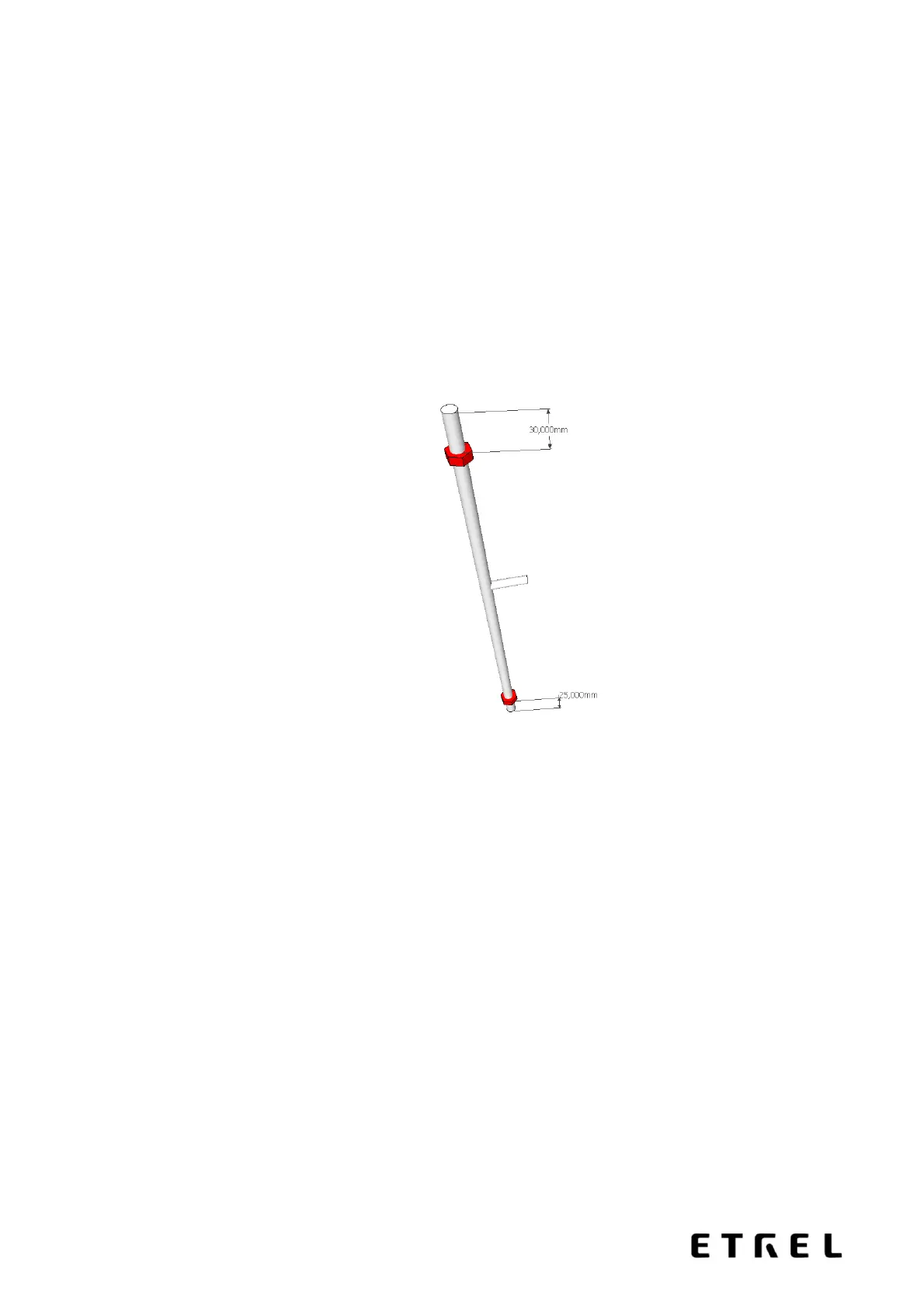

Figure 6: Anchor rod with initial screw positions
2. Place the rods into the anchor frame holes. Screw nuts on the other side at the top of
the frame, where the rod enters through the frame. Tighten upper and lower nut firmly.
Repeat for all 6 rods.
