19

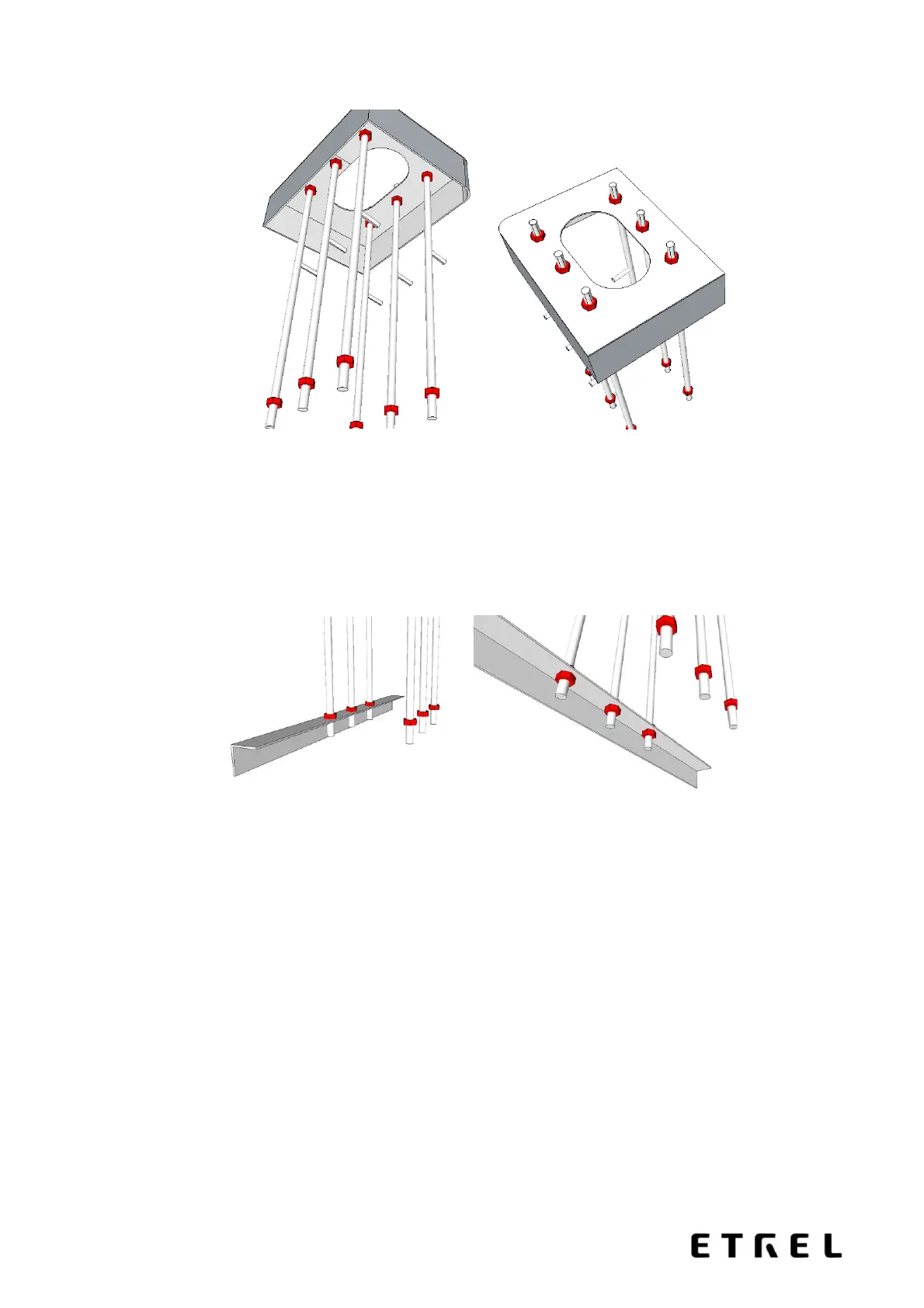

Figure 7: Insertion of anchor rods into the upper frame
3. Place the L profile on the bottom of the anchor. Place all tree rods in one line into the L
profile holes and screw nuts also on the bottom of the L profile, where the rod enters
through the L profile. Tighten upper and lower nut firmly. Repeat for the second L
profile.
Figure 8: Insertion of anchor rods into the bottom L profile
The underground anchoring element is built into concrete foundation. The preparation of the
foundation (its dimensions) depends on the structure of the ground on the designated location.
The underground anchoring element can be combined with reinforcing steel. It is
recommended to add construction steel into the L profile side holes to strengthen the anchor.
You can use up to FI 12 construction steel.
Please note that the upper part of the underground anchoring element has a rounded corner at
its front left side. It should therefore be installed so that this round corner is matched by the
front left side of the charging station in final installation set-up.
