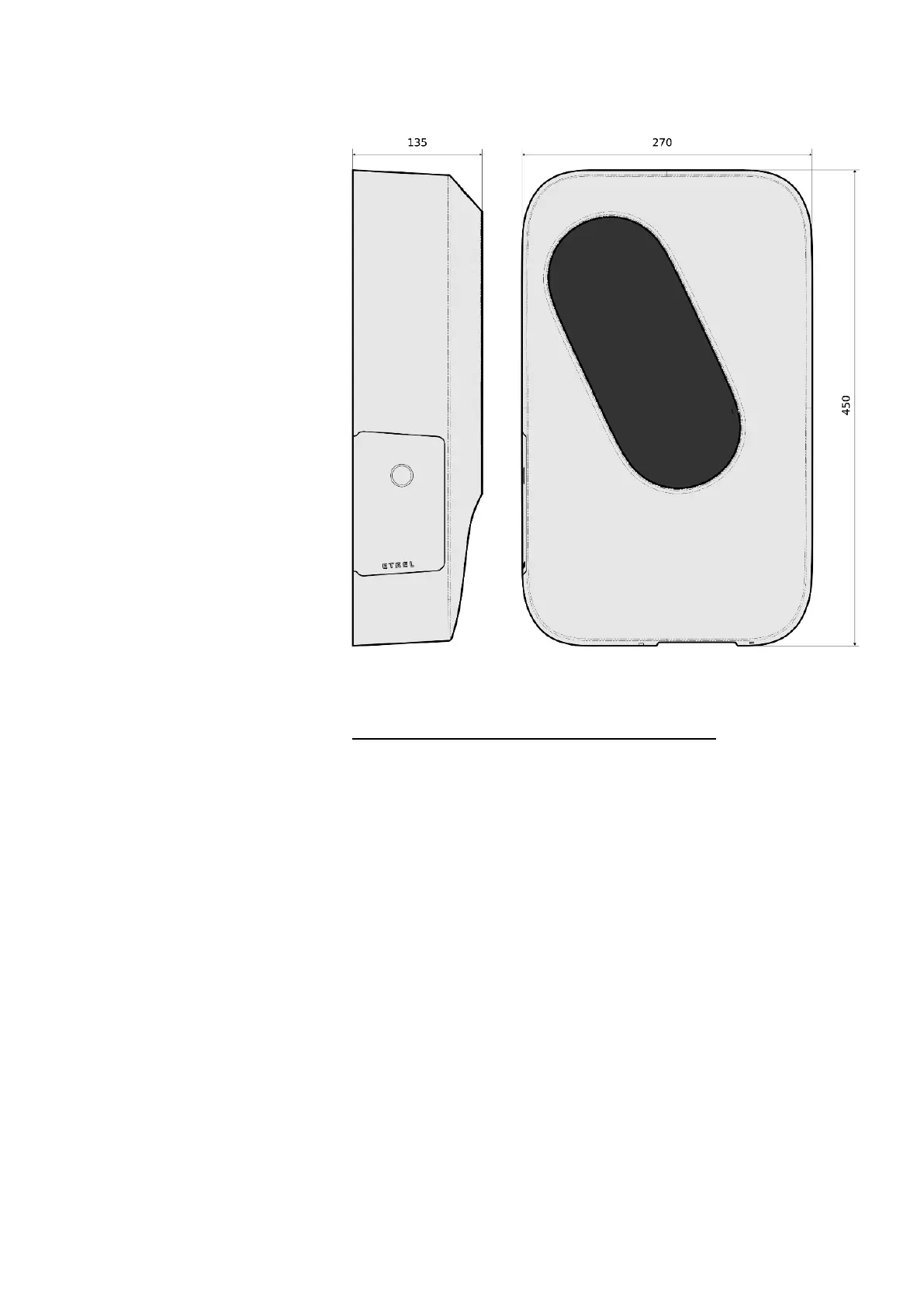

Figure 4: Dimensions of the charging station
OPTIONAL AND EXTRA EQUIPMENT
CONTENT AND ACCESSORIES
• Charging station (with Type 2 cable or Type 2 socket),
• Wall mounting bracket,
• 9 × wall plugs for securing the mounting bracket using screws to the
wall,
• 9 × screws to mount the bracket to the wall,
o Screws dimensions: 4.5 x 40 and 4.5 x 60 [mm],
• Cable gland rubber seal for smaller cable dimensions
• *9 × wall spacers
• *2 × keys to open charging station service doors,
• *Hex key to open charging station maintenance doors,
o Hex key dimensions: 2.5
• *Load Guard device,
• *Magnetic cable holder (different version for longer cables > 3 m).
*Optional depending on the purchased model.
