Assembly and Installation | 23

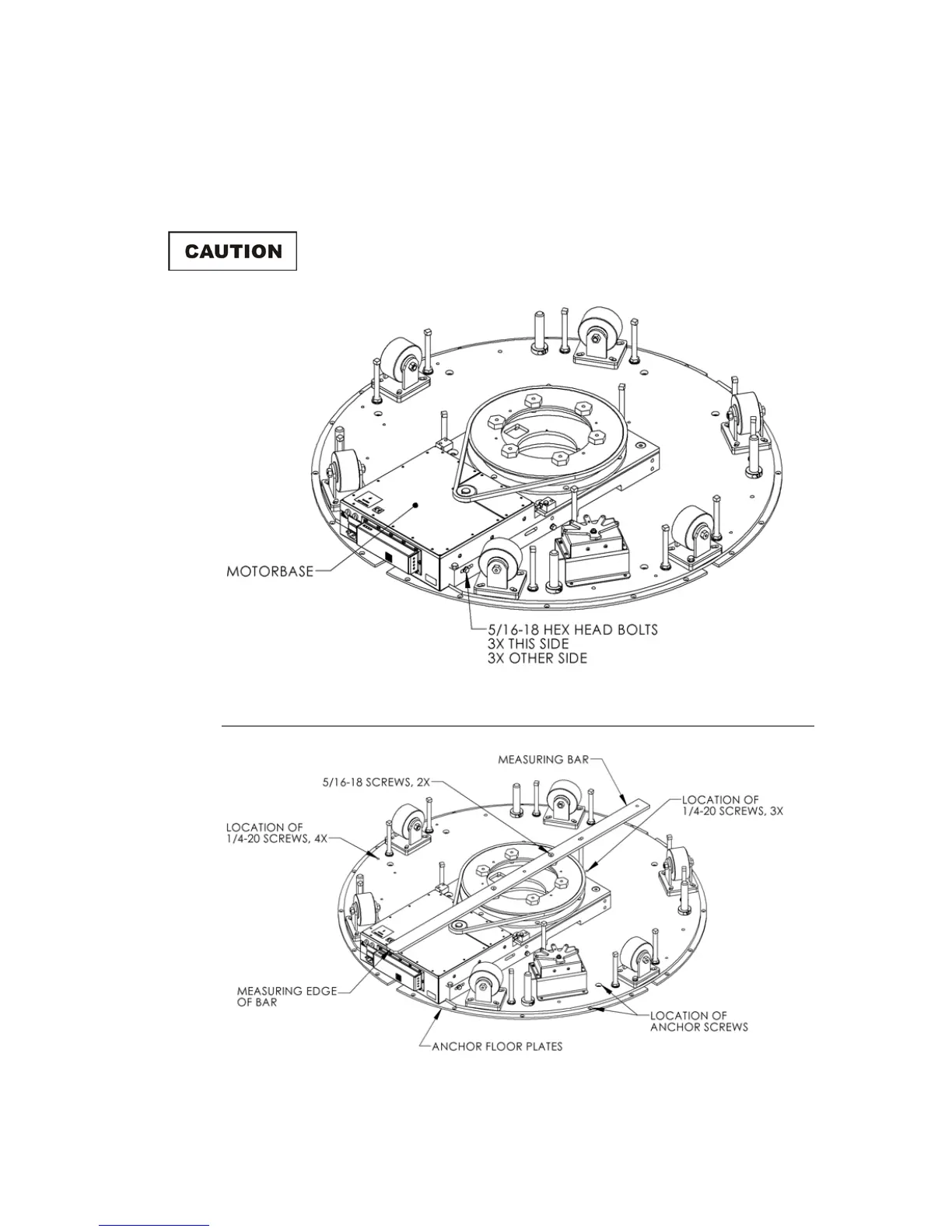

6. Using a forklift or other appropriate lifting machinery, place the turntable
bottom into position. The motor base with the fiber optic connectors
should point in the direction that the fiber optic cable will be installed.
This position will reduce the chance of the cable being kinked or twisted.
Make sure power is off and secured before proceeding.
Interior Design
Pit Locator Detail
