Assembly and Installation | 27
These tools are required for the next stage of installation:
1/2-in hammer drill
3/16 x 3 1/2-in hammer drill bit, at minimum
Vacuum to clean inside the drilled holes for maximum thread
engagement
When drilling holes, be aware of buried conduit and pit drainpipes. Drill 3/16-in
holes, two inches minimum depth.
Motor Base Attachment
Turntable Motor Base
1. Locate the box that contains the motor base. The box also includes the
hardware needed to attach the motor base to the turntable. See the

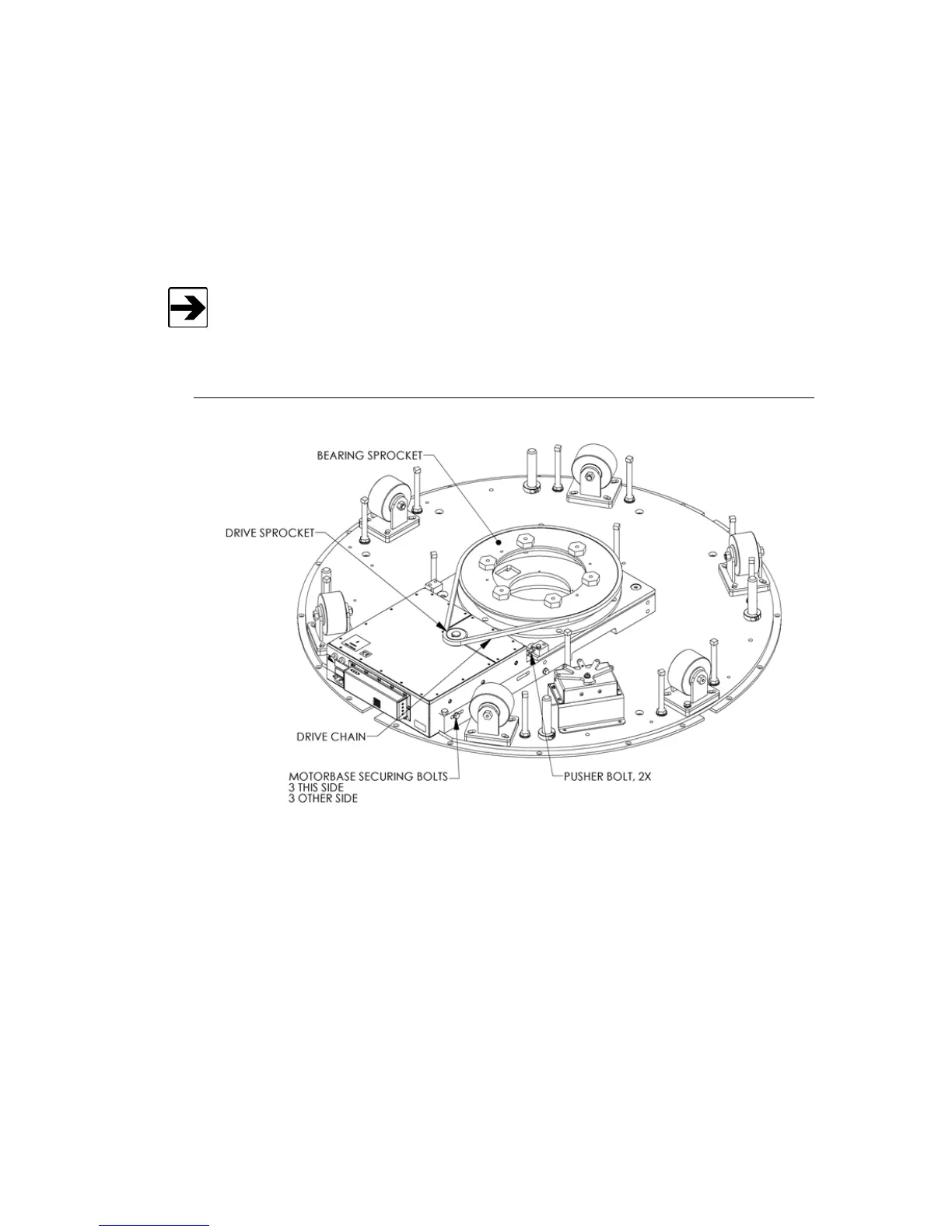

illustration, Turntable Motor Base, to locate the drive chain and bolts to
secure the motor base. Slide the motor base between the two rails
provided.
2. Attach three bolts, flat and lock washers (provided) on each side of the
motor base. Do not tighten them completely at this time.
