Installation - Assembly Procedures
Stand Upright Assembly
1. Place the bench approximately where
it will remain, leaving room to work
behind it.
2. Make sure the clevis forks are pointed
up and secure each stand upright to
the rear of the bench pedestals using
four 1/4-20 x 1/2” machine screws
and four locknuts.

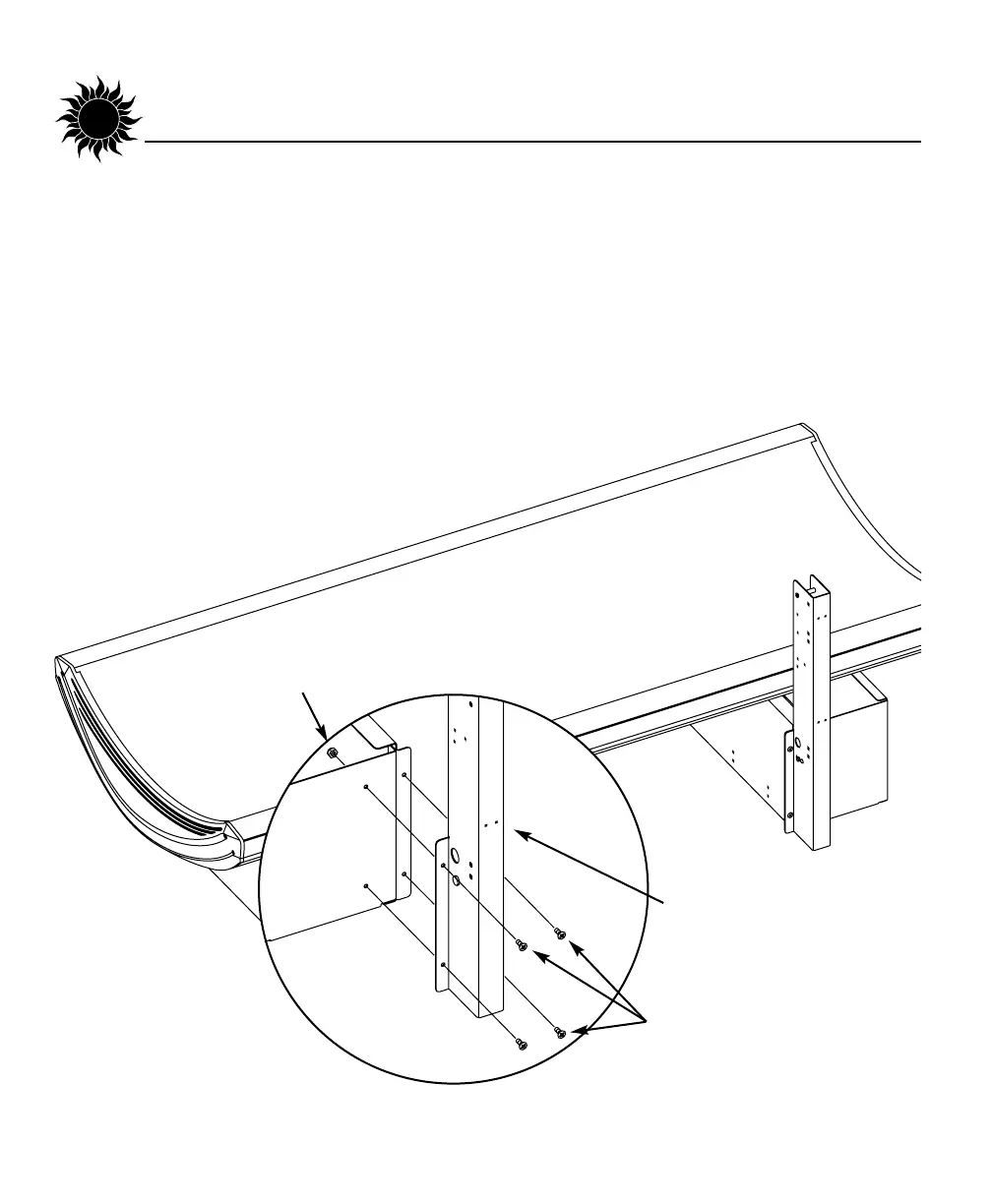

LOCKNUT
(others hidden)
MACHINE SCREWS
STAND UPRIGHT
