Installation - Assembly Procedures

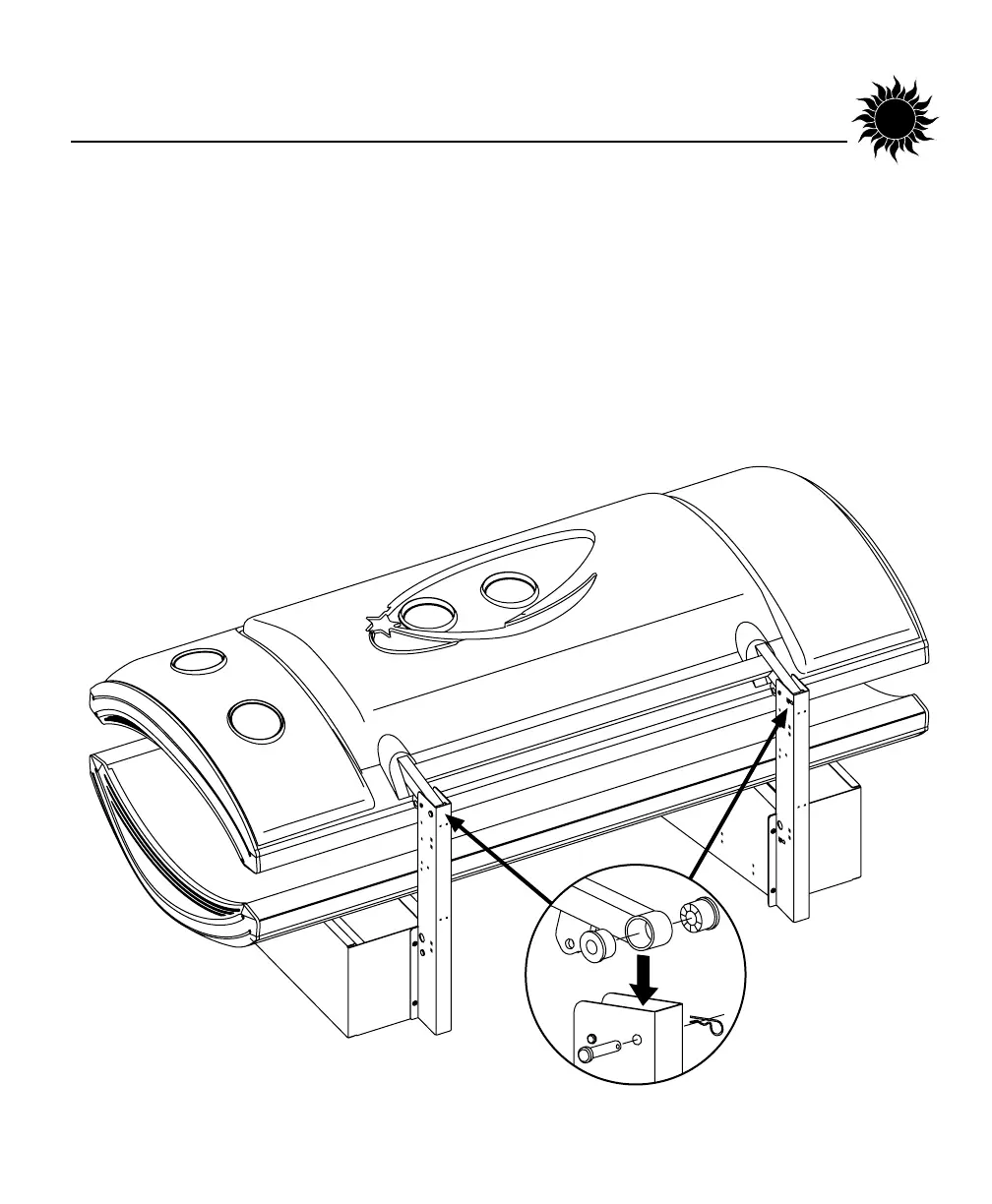

Canopy Installation
1. Place two nylon floating bearings into
each canopy arm.
2. Holding the canopy over the bench,
with the canopy arms inside the stand
uprights, insert clevis pins (5/16” x 2
1/32”) through the uprights and nylon
floating bearings to attach the canopy.
3. Secure the clevis pins by inserting the
straight portion of a bridge pin through
the small hole in the end of the clevis
pin.
