37
Appendix – Plug assignment
Plug assignment
The bicycle carrier is equipped with a lighting system. This
is connected to the socket on the trailer coupling with a13-
pin plug. If your vehicle has a 7-pin connection instead of
a
13-pin one, the corresponding assignments are listed
below. This information is only for the retrofitting by
a
specialised dealer. A retrofitting by non-trained persons is
not permitted.

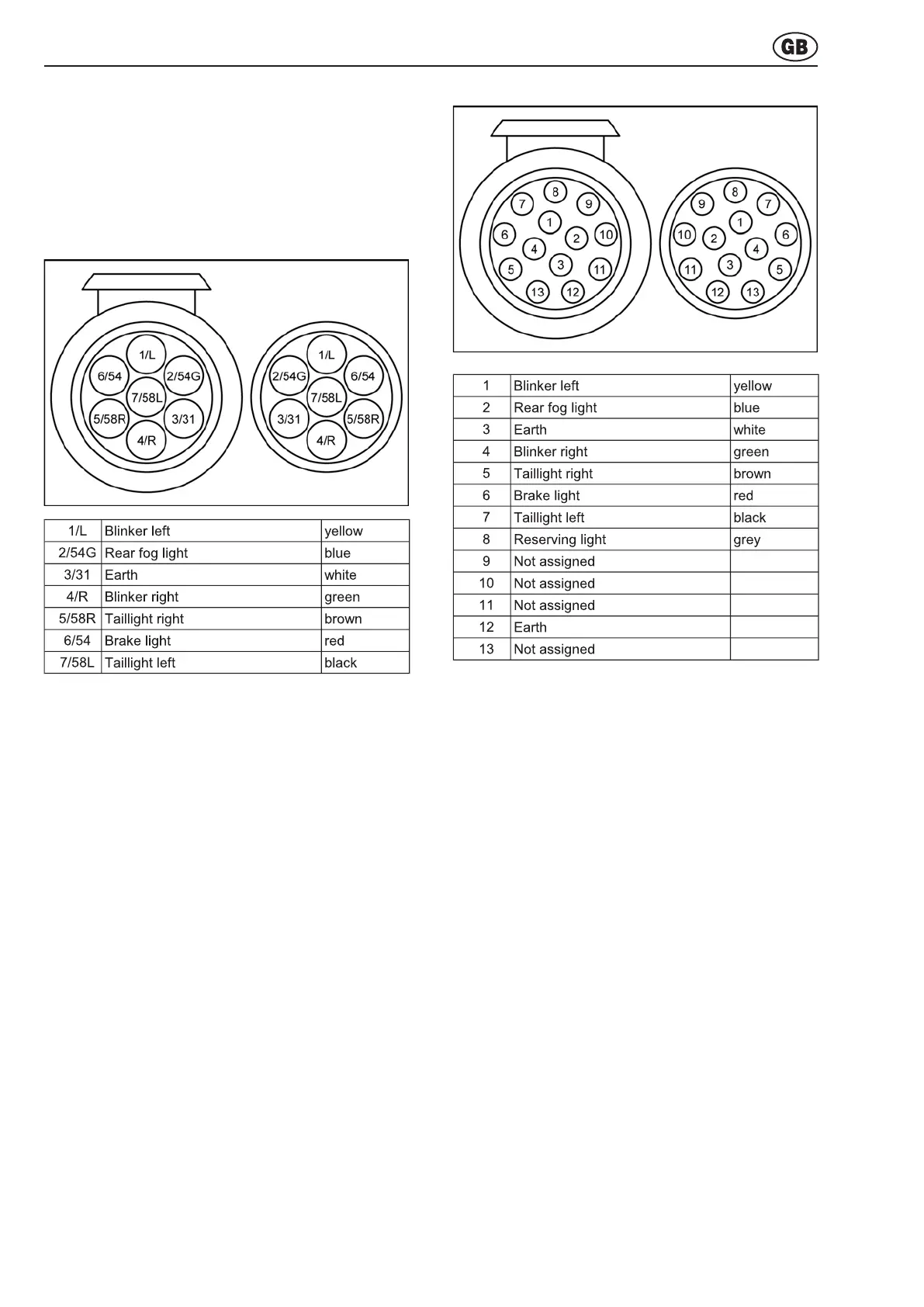

7 Pin
13 Pin
