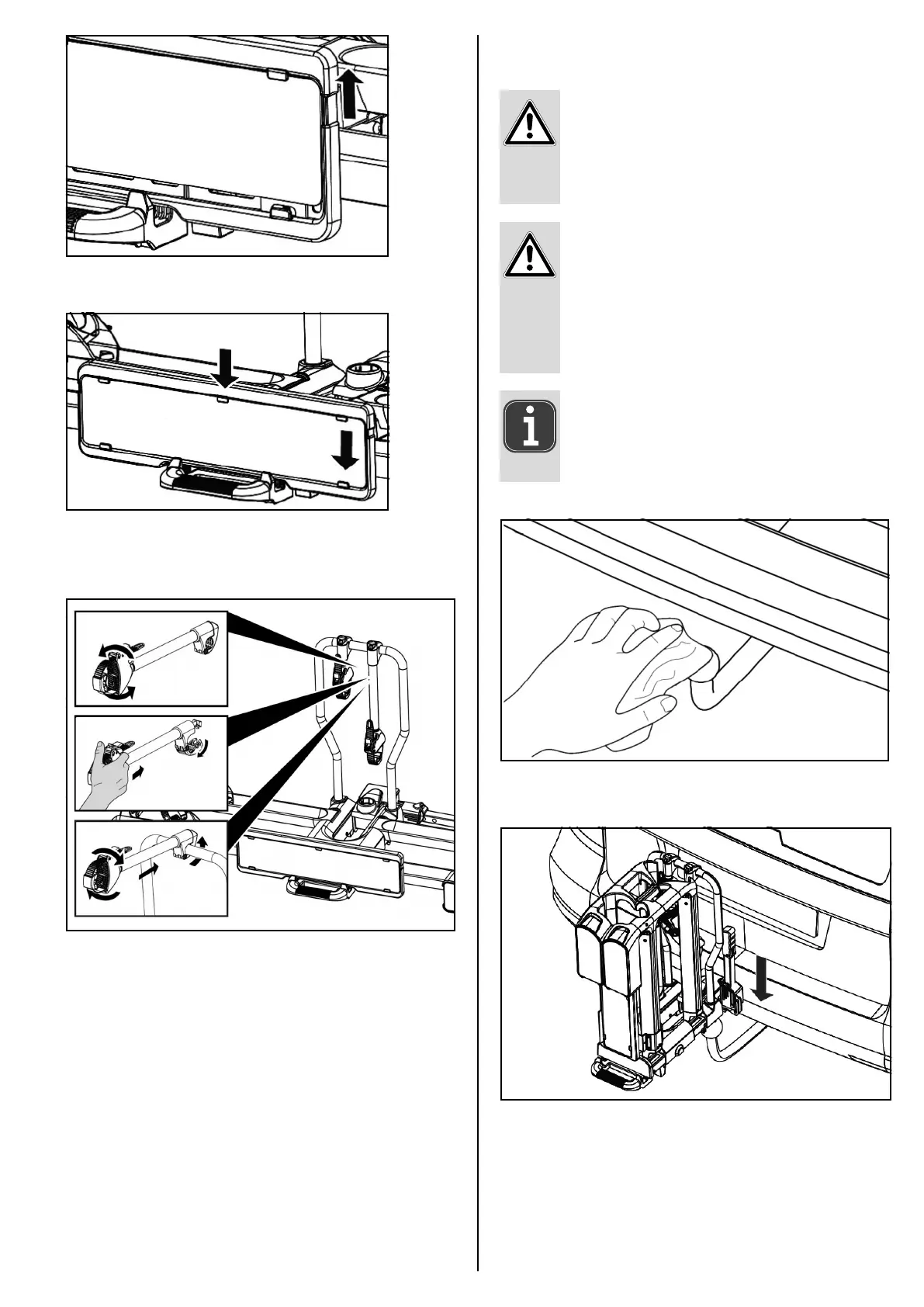

Figure 7: Raise the upper frame section
Figure 8: Press in the licence plate and the upper frame section
5.2 MOUNTING THE FRAME HOLDER
Figure 9: Assembly of frame holder
1.
2.
4.
5.
6.
3.
Figure 10: Cleaning the coupling ball
Figure 11: Mounting the bicycle carrier onto the trailer tow bar
Park your vehicle on a level surface. Apply the handbrake.
5.3 MOUNTING THE BICYCLE CARRIER ONTO THE TRAILER TOW BAR
• Do not attach the bicycle carrier if it is damaged in any way.
WARNING!
Personal injury or property damage possible due to a
damaged bicycle carrier.
Damage to the carrier, e.g. bent parts, cracks or scratches,
prevents the safe operation of the carrier.
• Replace a defective trailer tow bar.
• Clean the trailer tow bar of dirt, dust and grease.
WARNING!
Personal injury or property damage due to loss of the
bicycle carrier while driving.
A loose or faulty connection between the bicycle carrier and
trailer tow bar can lead to the detachment of the bicycle
carrier.
NOTE
There is often a layer of paint on new coupling balls.
For the best possible mounting of the bicycle carrier, this paint
coating must be carefully removed. Observe the instructions
from the tow bar manufacturer.
