20
NOTE
Slight signs of pressure on the tow bar ball are normal and do
not inuence the functionality.
5.4 ADJUSTMENT OF THE QUICK LOCK
• Remove the bicycle carrier from the trailer tow bar as described in Section
5.8, “Removing the bicycle carrier from the trailer tow bar”
• Loosen the lock nut a little (Figure 15).
• Screw in the setting screw one quarter of a turn (Figure 15).
• Tighten the locking nut (Figure 16).
• Check that the carrier is now rmly positioned on the trailer tow bar, as
described in “Mounting the bicycle carrier onto the trailer tow bar”. If not,
repeat steps described above.
Only do this if the bicycle carrier cannot be mounted rmly to the trailer
tow bar, as described in section 5.3, “Mounting the bicycle carrier onto the
trailer tow bar”.
5.5 CONNECTING THE ELECTRICAL CABLE
Insert the plug of the electrical cable of the bicycle carrier into the mains
socket of your vehicle. Read the instructions for your vehicle or tow bar.
• Check the correct operation of the lighting system before
each trip.
• Replace any defective bulbs if necessary.
• Check the connection between the plug and tow bar.
WARNING!
Personal injury due to not being seen by other road
users.
Driving without a functioning lighting system can lead to
accidents.

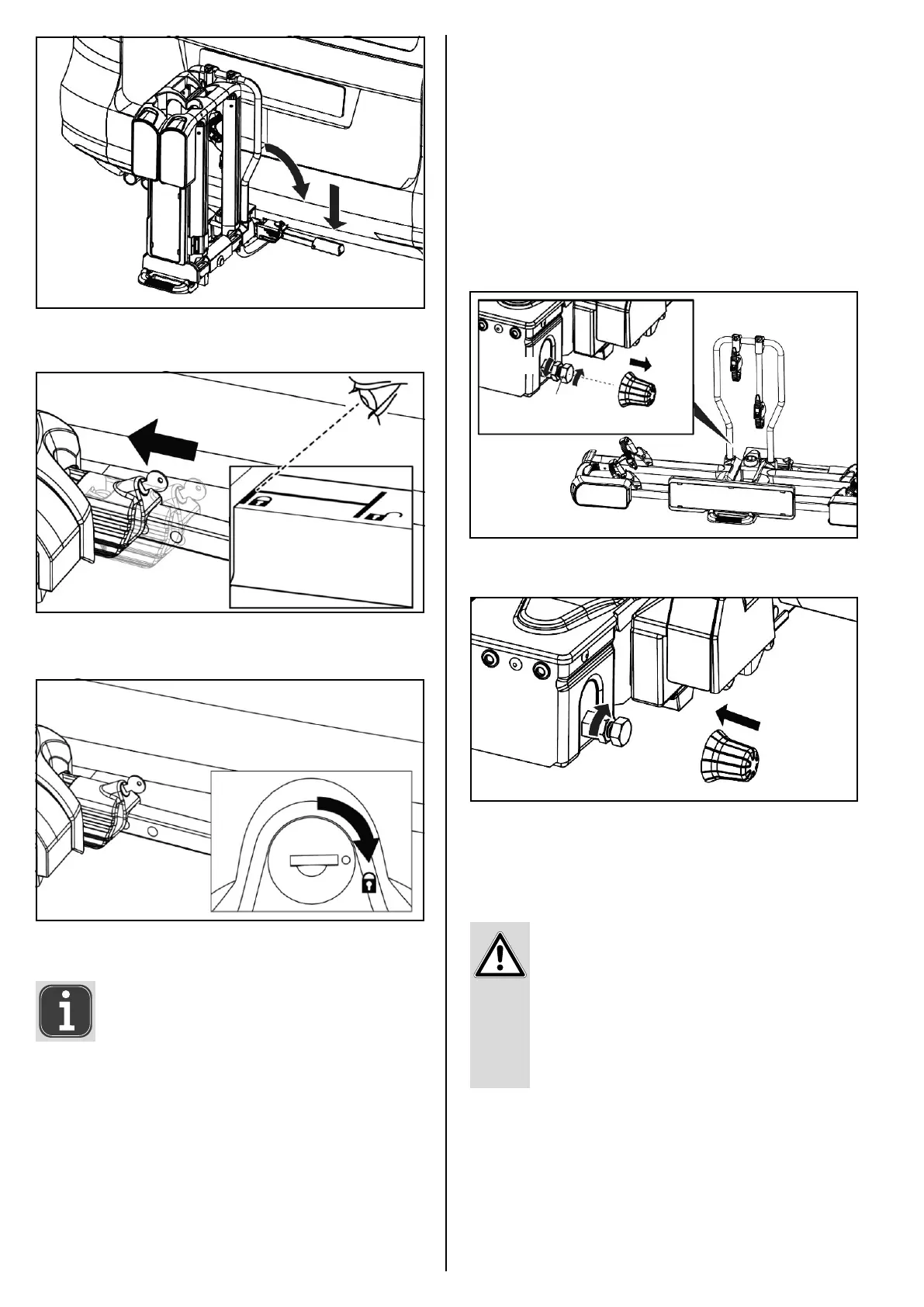

Figure 13: Locking the quick lock
Figure 14: Fastening the quick lock
Figure 12: Closing the quick lock
400N~
40 kg
Figure 15: Adjustment of the quick lock
Figure 16: Adjustment of the quick lock
2.
3.
SW18
1.
1.
2.
