7. NOTES REGARDING ENVIRONMENTAL PROTECTION
Due to its lighting system, the bicycle carrier is an electrical
device.
Do not dispose of electrical appliances in household waste!
Discarded electrical and electronic equipment must be
collected separately and recycled in an environmentally
sound manner.
Contact your municipal or city government on how to dispose
of old electronic equipment.
The materials are recyclable. You are making an important
contribution to protecting our environment through
recycling, material recycling or other forms of re-utilising old
appliances!
Dispose of the bicycle rack in accordance with the laws and
conditions in your country.
9. CONTACT INFORMATION
EAL GmbH
Otto-Hausmann-Ring 107
42115 Wuppertal, Germany
+49 (0)202 42 92 83 0
+49 (0) 202 42 92 83 – 160
info@eal-vertrieb.com
www.eal-vertrieb.com

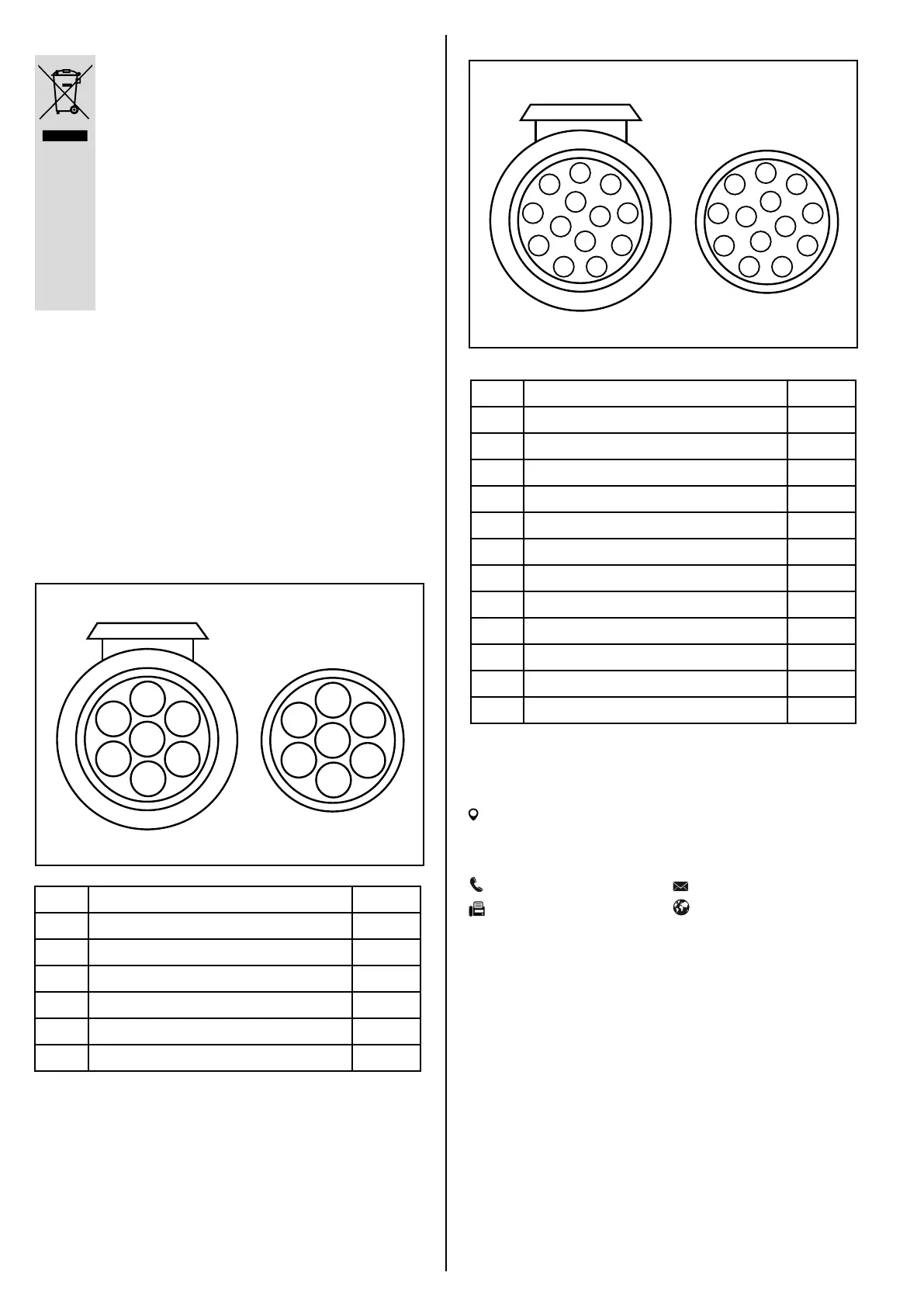

8. TIPS AND TRICKS
Plug assignment
• The bicycle carrier is equipped with a lighting system. This is
connected to the socket on the trailer coupling with a 13-pin plug.
• If your vehicle has a 7-pin connection instead of a 13-pin one, the corre-
sponding assignments are listed below.
• This information is only for the retro tting by a specialised dealer. A re-
tro tting by non-trained persons is not permitted.
7 Pin
13 Pin
1/L Turn signal light, left
yellow
2/54G Rear fog light
blue
3/31 Earth
white
4/R Turn signal light, right
green
5/58R Taillight , right
brown
6/54 Brake light
red
7/58L Taillight , left
black
1 Turn signal light, left
yellow
2 Rear fog light
blue
3 Earth
white
4 Turn signal light, right
green
5 Taillight , right
brown
6 Brake light
red
7 Taillight , left
black
8 Reserving light
grey
9 Not assigned
10 Not assigned
11 Not assigned
12 Earth
13 Not assigned
1/L
6/54 2/54G
5/58R
7/58L
4/R
3/31
1/L
2/54G 6/54
5/58R
7/58L
4/R
3/31
8
9
10
1
2
7
6
4
3
5
11
1213
9
8
7
6
1
4
5
13
3
2
10
11
12
