22

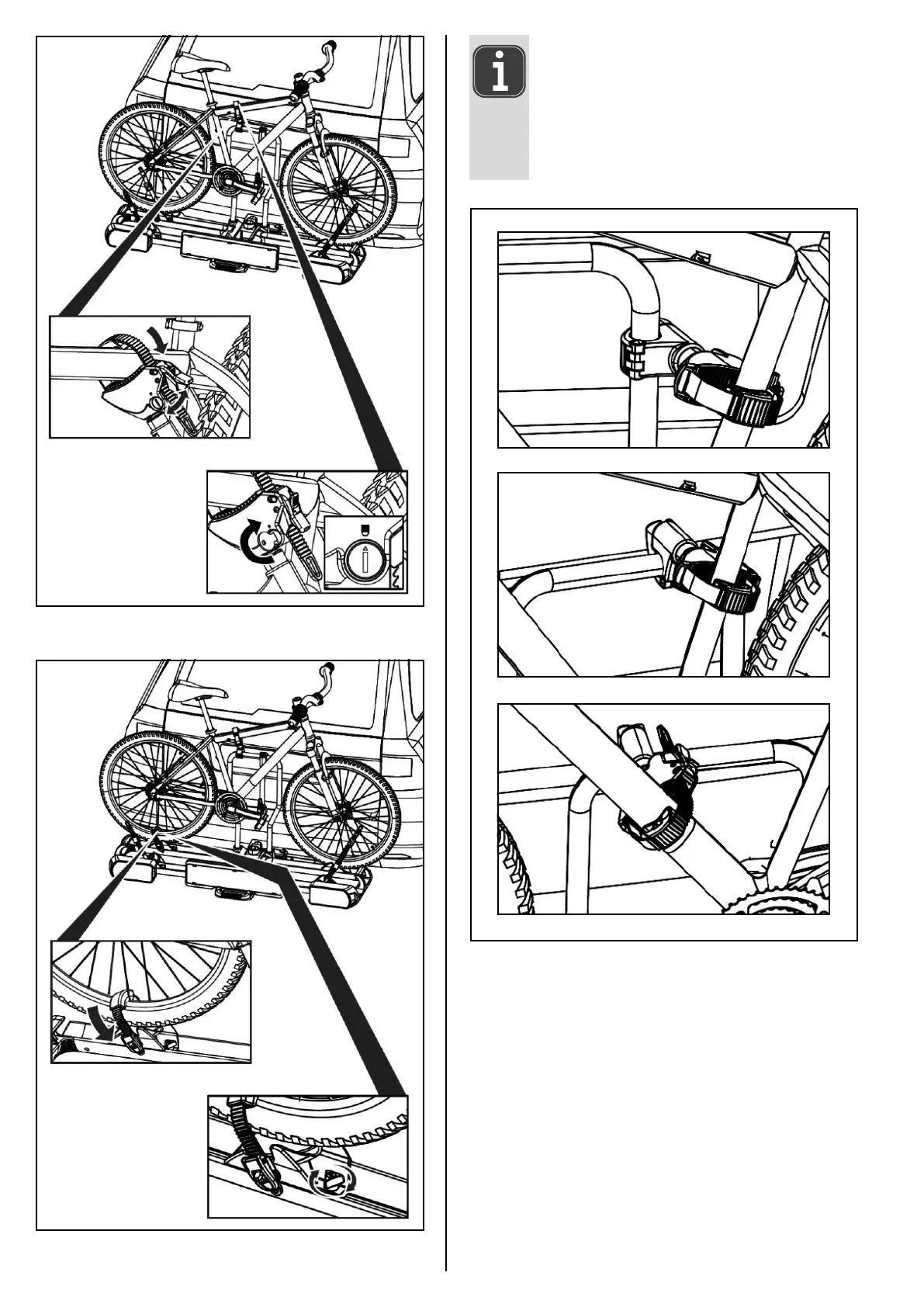

Figure 21: Attaching the rst bicycle to the frame holder
Figure 22: Putting on the tensioning straps
1.
3.
2.
NOTE
The frame holders can be placed anywhere on the bike or
on the U-shaped bracket. Since the frame holders are not
tied to any specic position, you may try out a number of
positions. During initial assembly, take time to nd the best
and most stable position. It is important to attach the frame
holder as high up as possible, so that maximum stability can be
achieved.
Figure 23: Adjusting the frame holder
