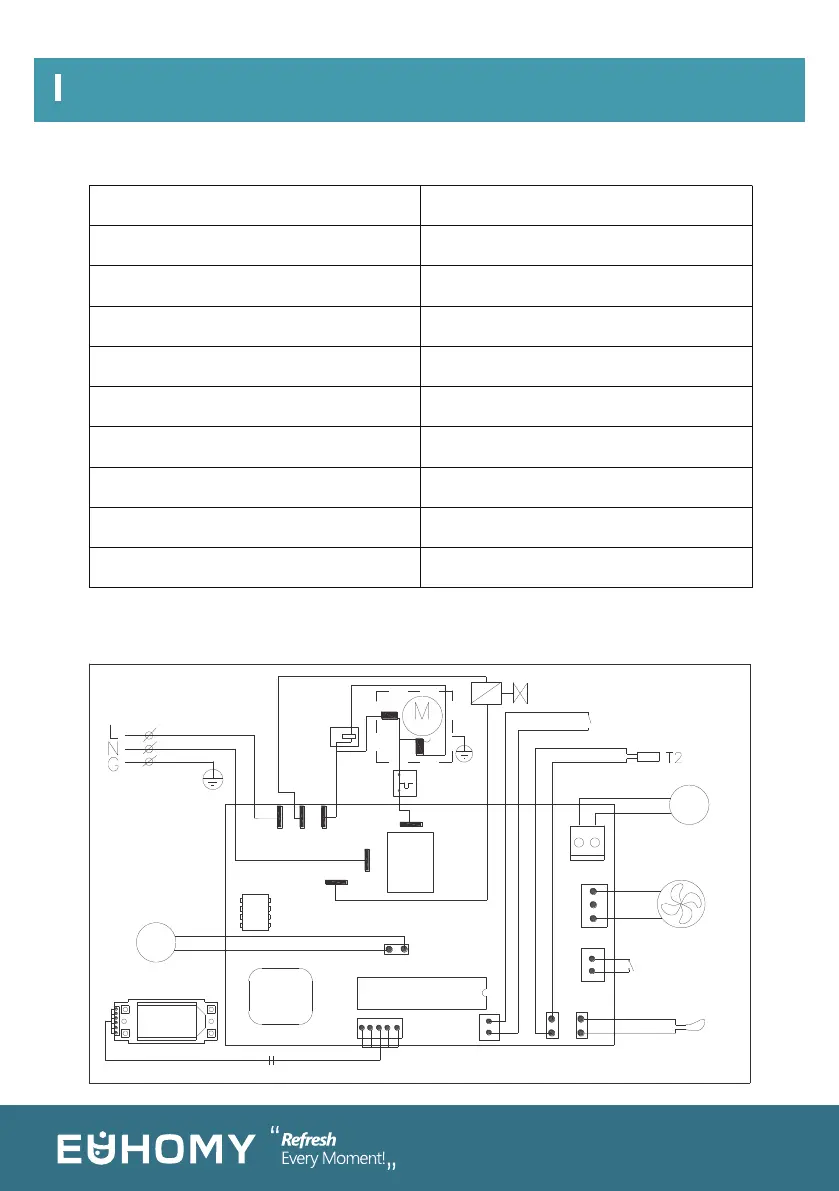

Euhomy IM-FP - Specifications; Technical Parameters; Circuit Diagram

09
Specifications
TECHNICAL PARAMETERS
CIRCUIT DIAGRAM
SKU
Protection Type
Climate Type
Power
Ice-Making Current
Ice-Harvest Current
Refrigerant
Net Weight
Vesicant
Enclosure
IM-FP
I
SN/N/ST
115V/60Hz
2.2A
2.5A
R290/32g
9.5kg
C5H10
Plastic
Relay
MCU
-PUMP+
-
FAN
+
DC Fan Motor
DC
VALVE
Solenoid Valve
AW
MW
Start
Relay
Overload
Protector
COMPRESSOR
COMP
AC-L
POWER SUPPLY
for water temp
for room temp
AC-N 1 2
Liquid Level
Switch
WATERV
CKKG
ROOM
LNSR
CN6
ELECTRICAL DIAGRAM
FOR ICE-MAKER
T1
DC valve
T1
water
1
6C
panel
LCD
magneticcontrol
switch
