APOLLO Windows XP Embedded Quickstart Unpacking and connecting up
© 2007 Eurotech Ltd Issue E 12
Using a flat panel monitor

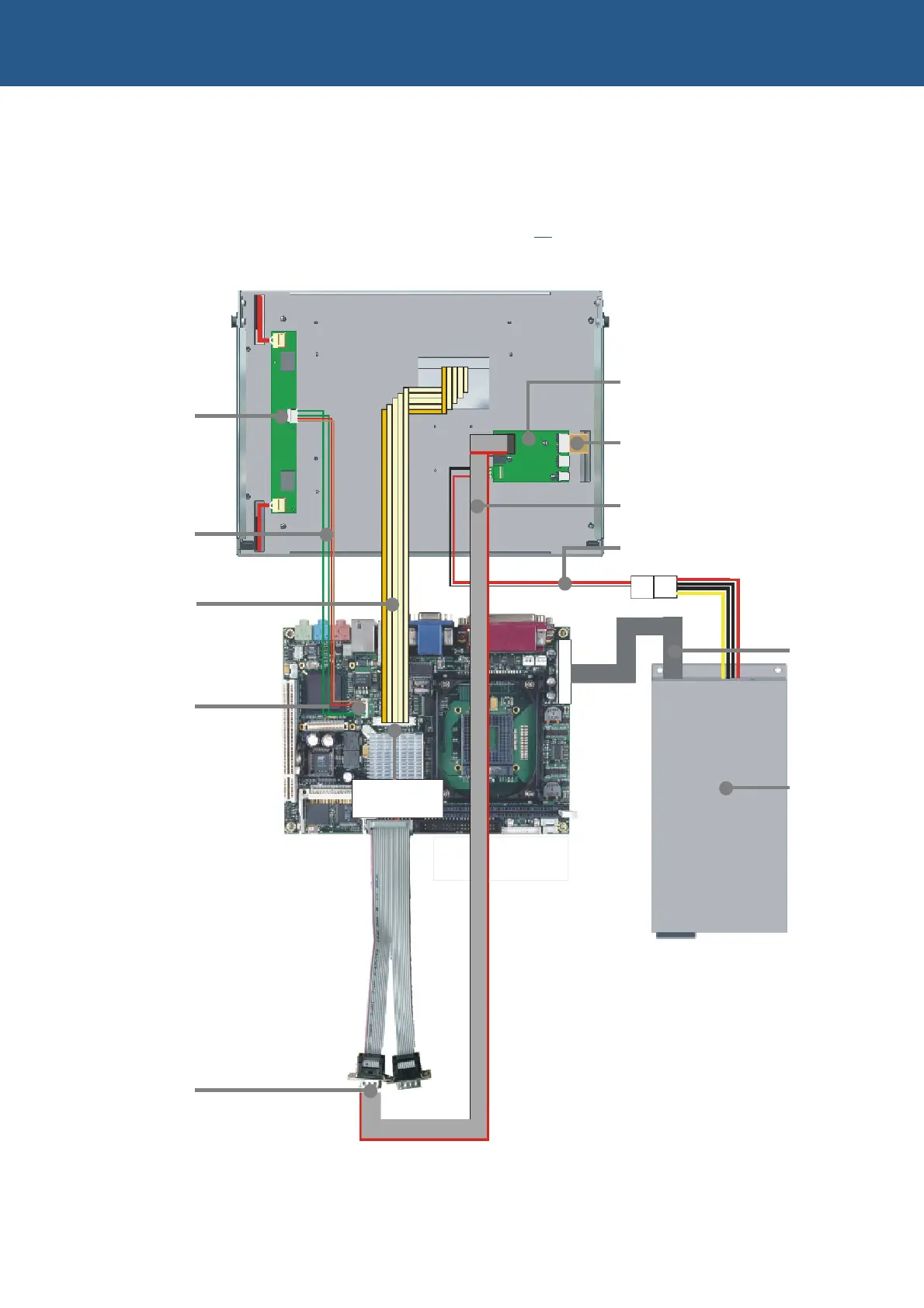

If you are using a flat panel monitor, you can get started quickly by referring to the
following diagram and procedure. For details of connections for the mouse, keyboard
and breakout board, see the diagram on page
11.
15" LCD enclosure
J17
LVDS
Backlight inverte
r
(safety cover not
shown for clarity)
Backlight inverte
r
cable
LVSD cable
J15 backlight
connecto
r
COM 3
TSC1
8-wire touch ribbon cable
COMMS cable
TSC1 power cable (+5V DC)
A
TX
CONN
Power
supply
