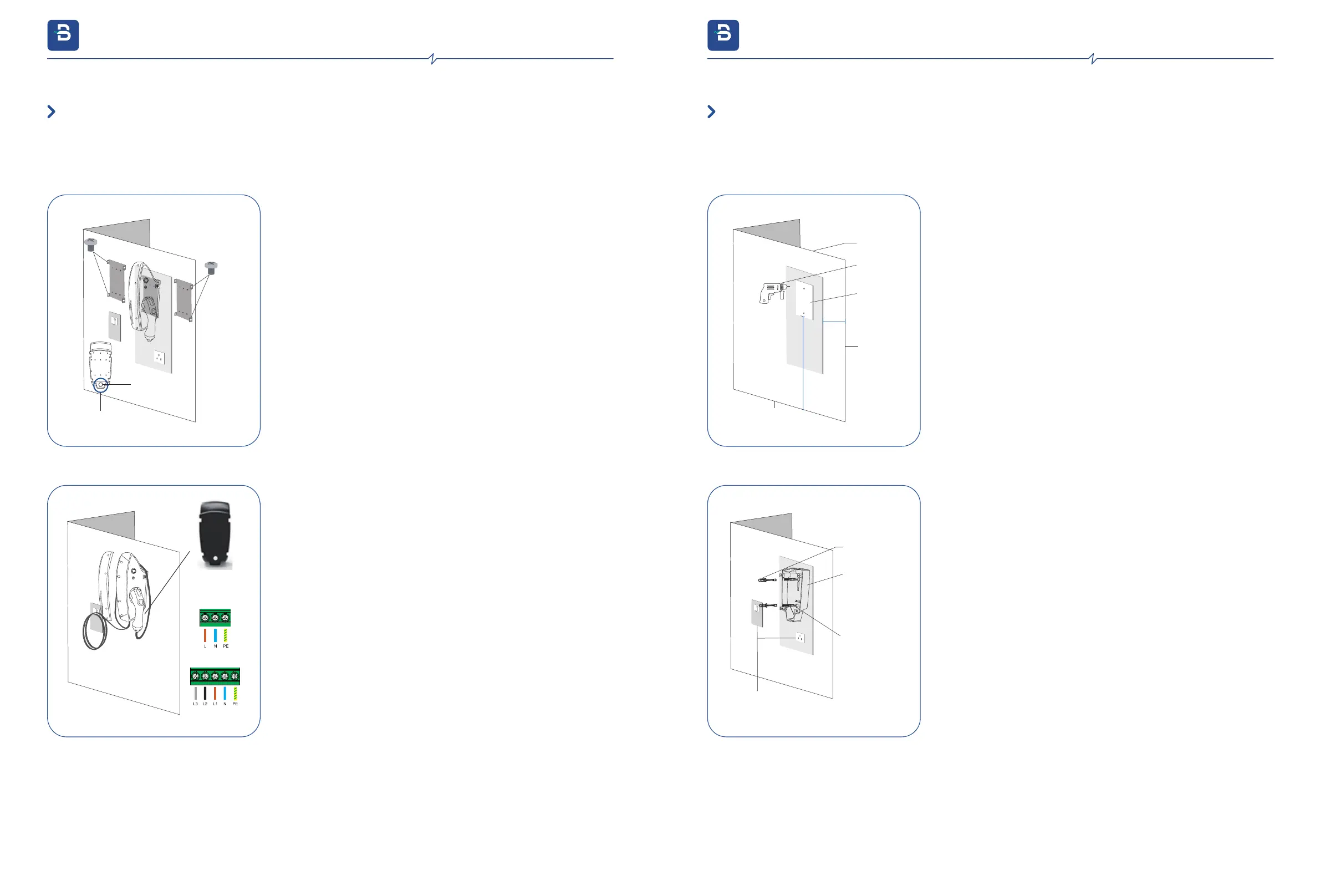

Step 3
Install the EV Charger to the mounting plate.
Find the hole for cut out on the back of EV charger.
Use the 4pcs M6*8 screws to fix the EV charger to the mounting plate as
picture shows (Screws torque 1.5NM-2.0NM).
Step 4
Wiring
Note: Consult with your local electrician or refer to your local code for proper
wire sizing appropriate for the currents in your EV Charger.
Note: It is the installer's responsibility to identify whether additional
grounding is required to ensure that local regulations are met. Grounding
must be installed at the power source and not at the cable entry to the EV
Charger.
As the picture at left shows, use the screwdriver loosing the screws on the
EV charger cover. Wire the cable to the according terminal.
Left hole position
Right hole
position
Back of EV charger
perforating
as image
M6*8 bolts
cable through the hole
on the wall and
connect to the back
hole of EV
Wiring terminals
Three-phase
wiring diagram
3.7.2. Step-by-step Installation Instructions (rear entry wiring)
Note: The torque applied to the screws should be 1.8N-m to
2.2N-m
Step 1
Position
The bottom of the ⑨ positioning plate is 1.2 m away (recommended), if
the EV charger is installed close to the edge of the wall, the positioning
plate should be more than 0.5 m away from the edge of the wall.
Drilling pilot holes
Drilling the holes according to the instruction on the Position template
for different installation and wiring ways.
Step 2
Fix the wire box
Put the 8*40 flat head screws'anchoring into the holes and use the screw
driver make the 2pcs 8*40 flat head screws to fix the Wire box Mounting
Template on the wall.
wall
≥0.5M
~1.2M
Floor Level
Drill
Side of wall
Two points on
the top and
bottom of
position plate
screwdriver
PS:Hooks and
socket excluded only for reference
Wire box
8*40
Expansion bolts
3.7.3. Step-by-step Installation Instructions (top entry wiring)
