EVCO S.p.A.
EV3 HRV & EVD HRV | Application manual ver. 1.0a | Code 1443DHRVE104
page 11 of 74
3 MEASUREMENTS AND INSTALLATION
3.1 Measurements and installation of EV3 HRV

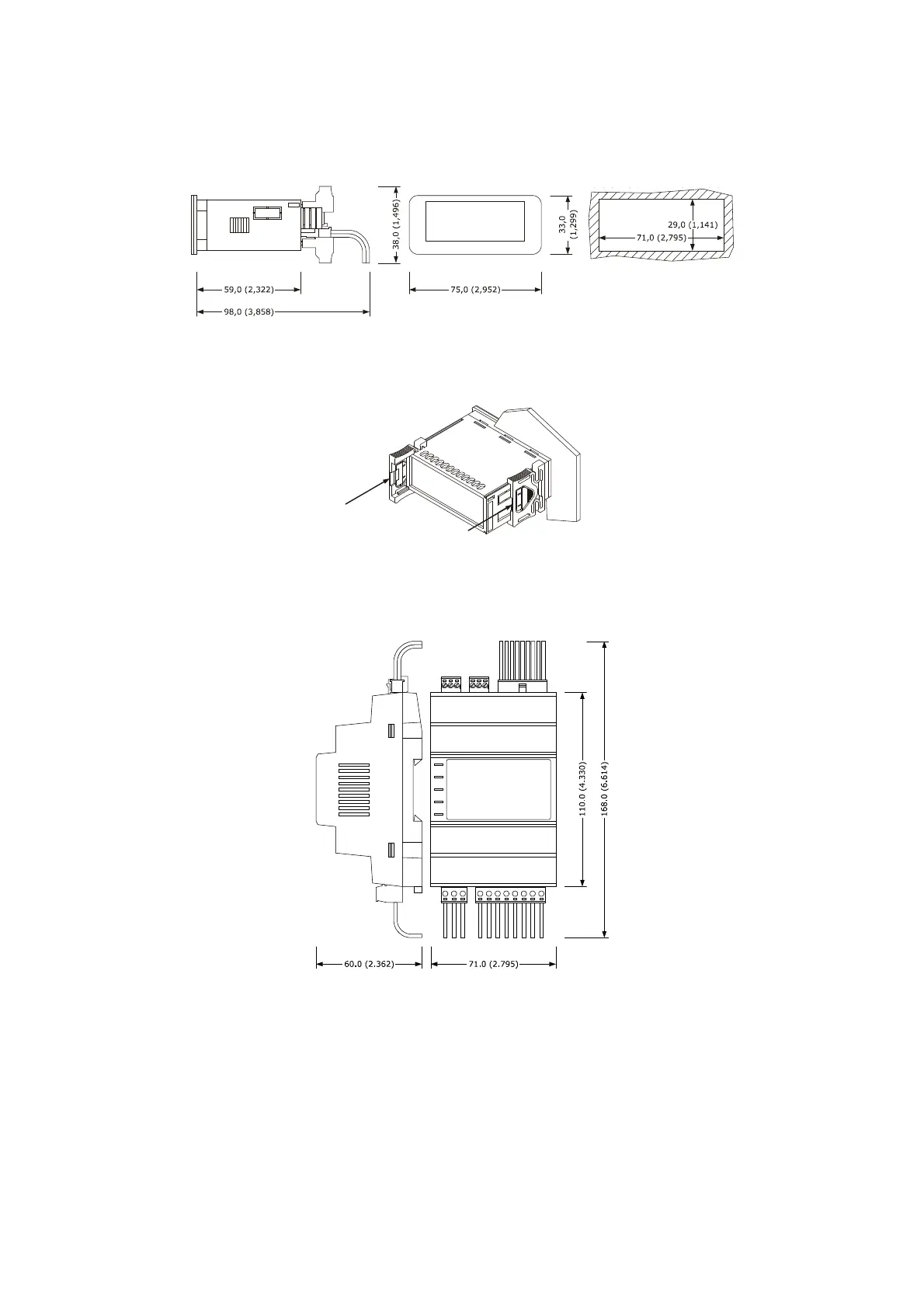

The pictures below show the measurements of EV3 HRV; measurements are expressed in mm (inches).
To be installed on a panel with the snap-in brackets provided.
The thickness of the panel on which EV3 HRV is to be installed must be between 0.8 and 2.0 mm (0.031 and 0.078 in).
3.2 Measurements and installation of EVD HRV
The picture below shows the measurements of EVD HRV (4 DIN modules); measurements are expressed in mm (inches).
Installation is on a DIN rail 35.0 x 7.5 mm (1.377 x 0.295 in) or 35.0 x 15.0 mm (1.377 x 0.590 in), in a control panel.
