5.4 Example of EVJ LCD electrical connection
5.4.1 Models for wall mounting

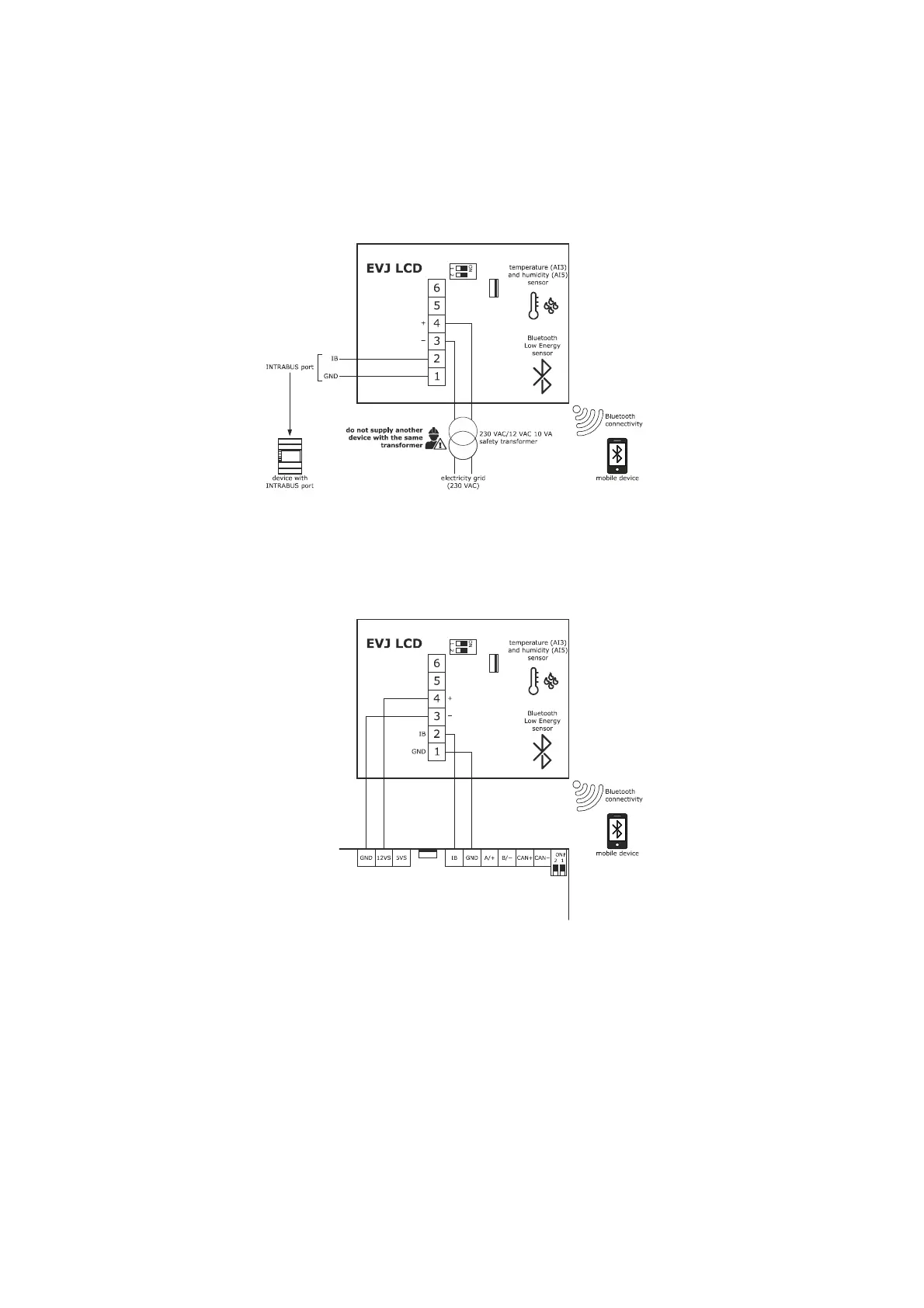

Example 1 of electrical connection: EVJ LCD is powered by a safety transformer.
N.B.:
- Do not supply another device with the same transformer
- The maximum permitted length for connection cables of the INTRABUS port is 30 m (98.4 ft).
Example 2 of electrical connection: EVJ LCD is powered by a device.
N.B.:
- Make sure that the current supplied by the controller is within the limits stated in the TECHNICAL SPECIFICATIONS section
- The maximum permitted length for connection cables of the INTRABUS port is 10 m (32.8 ft).
