3.4 Measurements and installation of EVJ LCD
3.4.1 Models for wall mounting

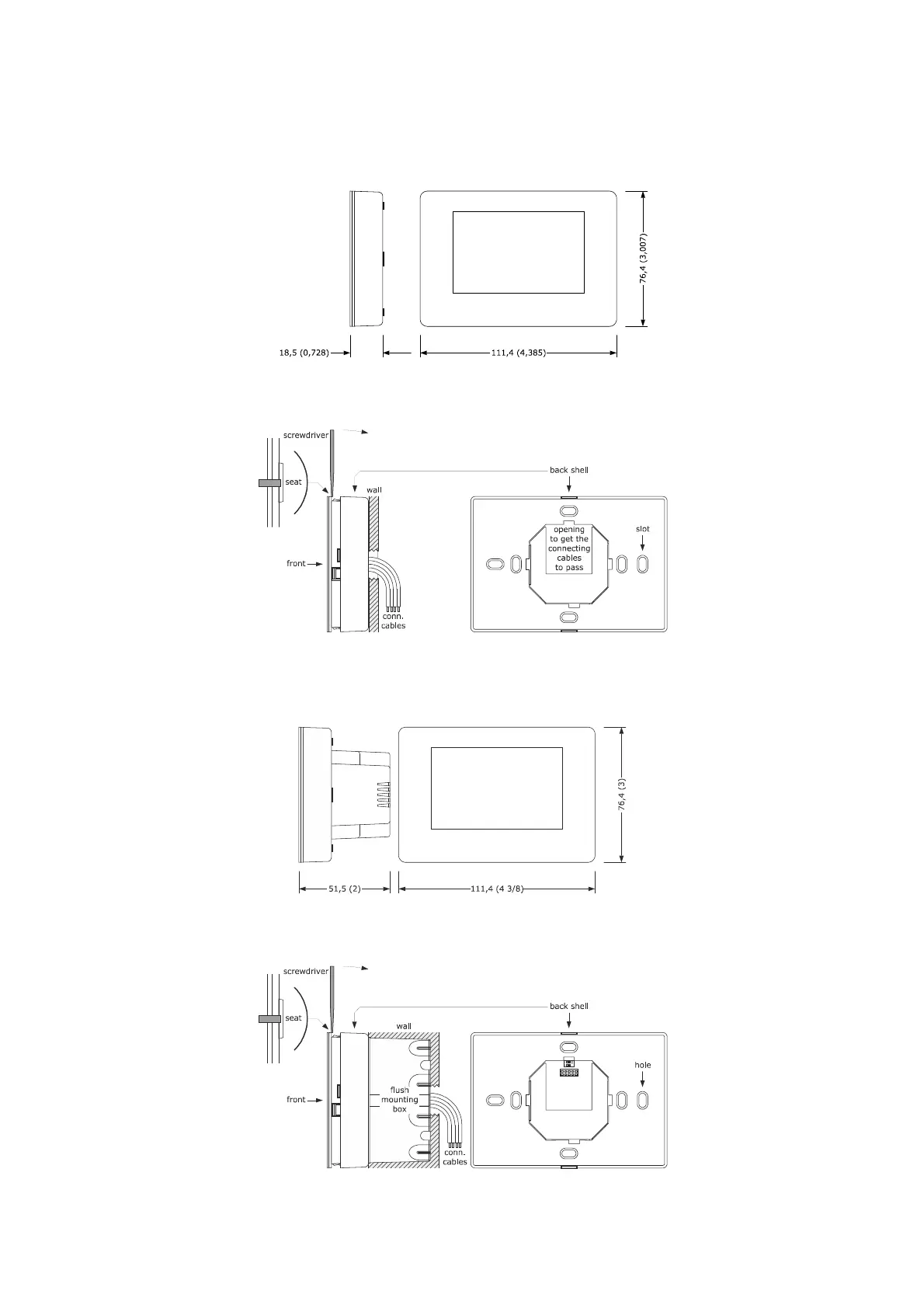

The pictures below show the measurements of EVJ LCD; measurements are expressed in mm (inches).
To be installed on a wall (with fixing screws and plugs) or in a 502E or 503E built-in box (with fixing screws).
3.4.2 Models for wall mounting with back-slot for flush mounting box
The pictures below show the measurements of EVJ LCD; measurements are expressed in mm (inches).
To be installed on a wall (with fixing screws and plugs) or in a 502E or 503E built-in box (with fixing screws).
