3 DIMENSIONS AND INSTALLATION
3.1 User interface dimensions

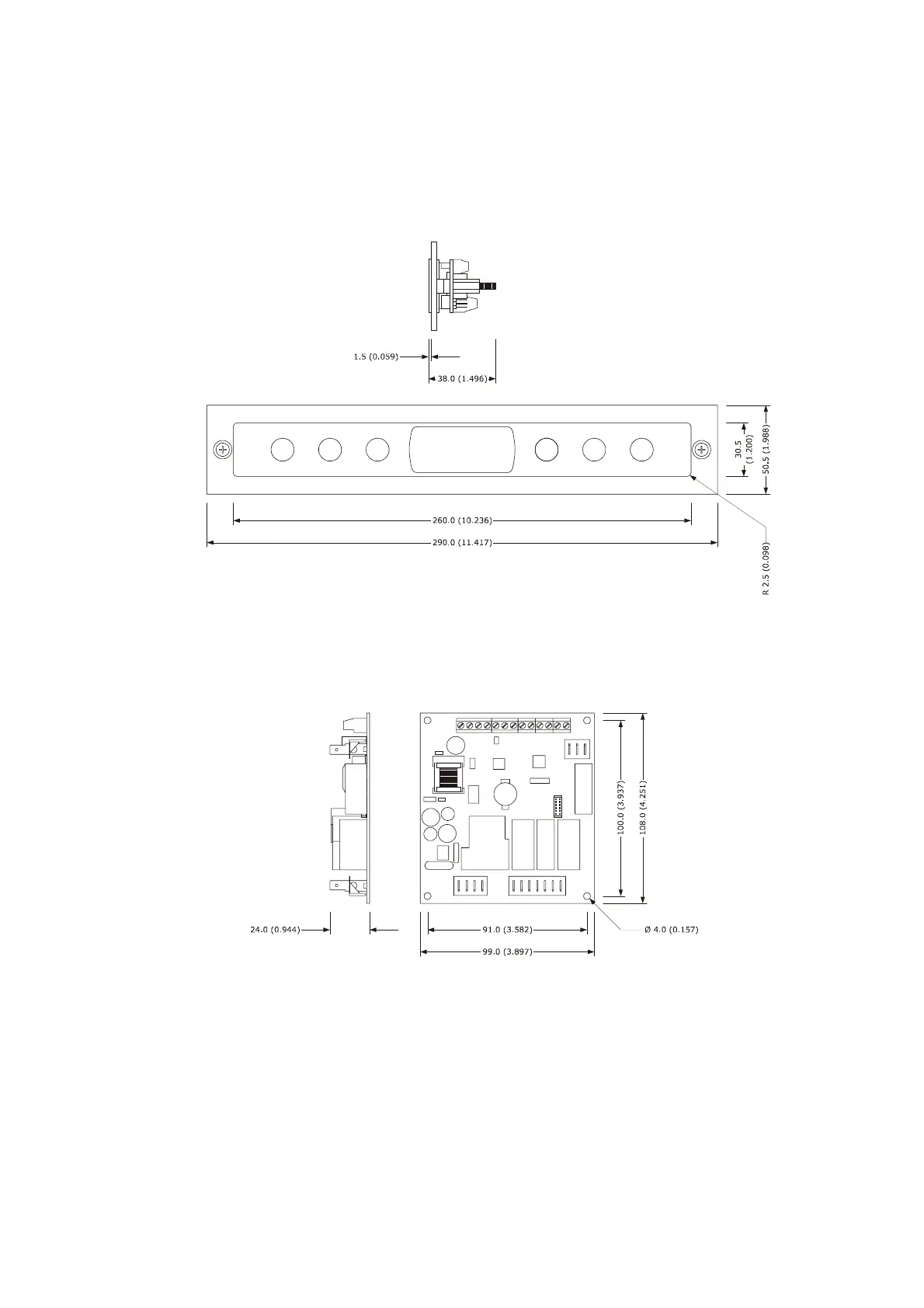

The following drawing illustrates the EVF815 user interface dimensions; these are expressed in mm (in).
3.2 Control module dimensions
The following drawing illustrates the EVF815 control module dimensions; these are expressed in mm (in).
