2 DESCRIPTION
2.1 Description of the user interface

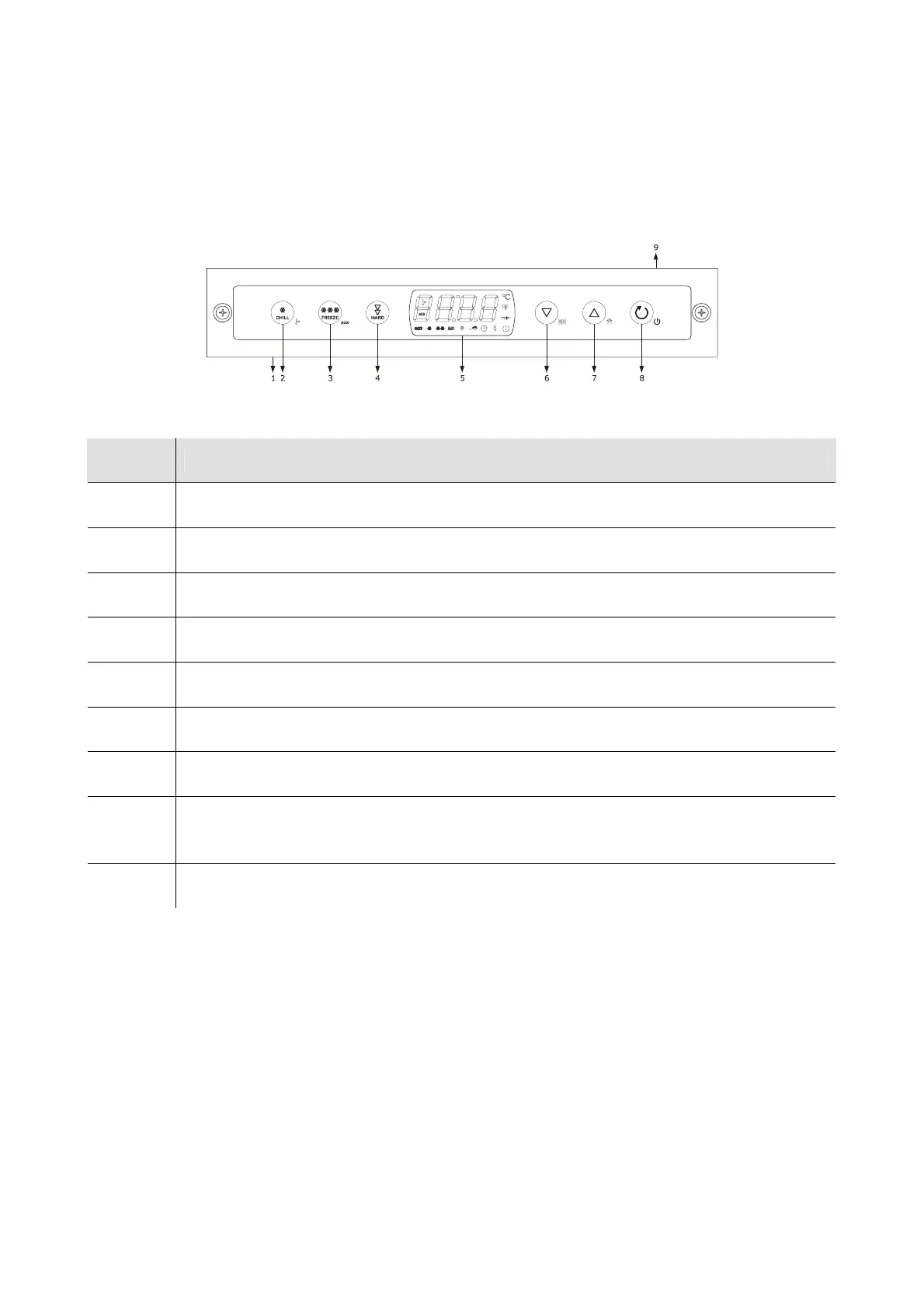

The following drawing illustrates the aspect of the EVF815 user interface.
The following table illustrates the meaning of EVF815 user interface parts.
Part Meaning
1 communication port with the control module (signal)
2 blast chilling key
3 defrosting/auxiliary key, hereon also called “DEEP FREEZING key”
4 hard blast chilling or soft deep freezing key, hereon called HARD/SOFT" key
5 display
6 decrease key, hereon call "DOWN key"
7 increase key, hereon call "UP key"
8 switch-on/switch-off/cycle start/cycle cut-off key, hereon called "START/STOP key"
9 communication port with the control module (power supply)
For further information, see the next chapters.
