Evco S.p.A. EVF815 | Installer manual ver. 1.1 | Code 144F815E114
page 51 of 58
The following table illustrates the meaning of EVIF20TRX parts.
Part Meaning
1 RS-232 port
2 TTL door on moveable support
3 TTL door on rigid support
4 reserved
5 non-optoisolated RS-232/TTL serial interface EVIF20TRX
6 1256800042 telephone cable
7 port for telephone connector
8 1256800079 adapter
9 RS-232 port
13.3.3 Dimensions

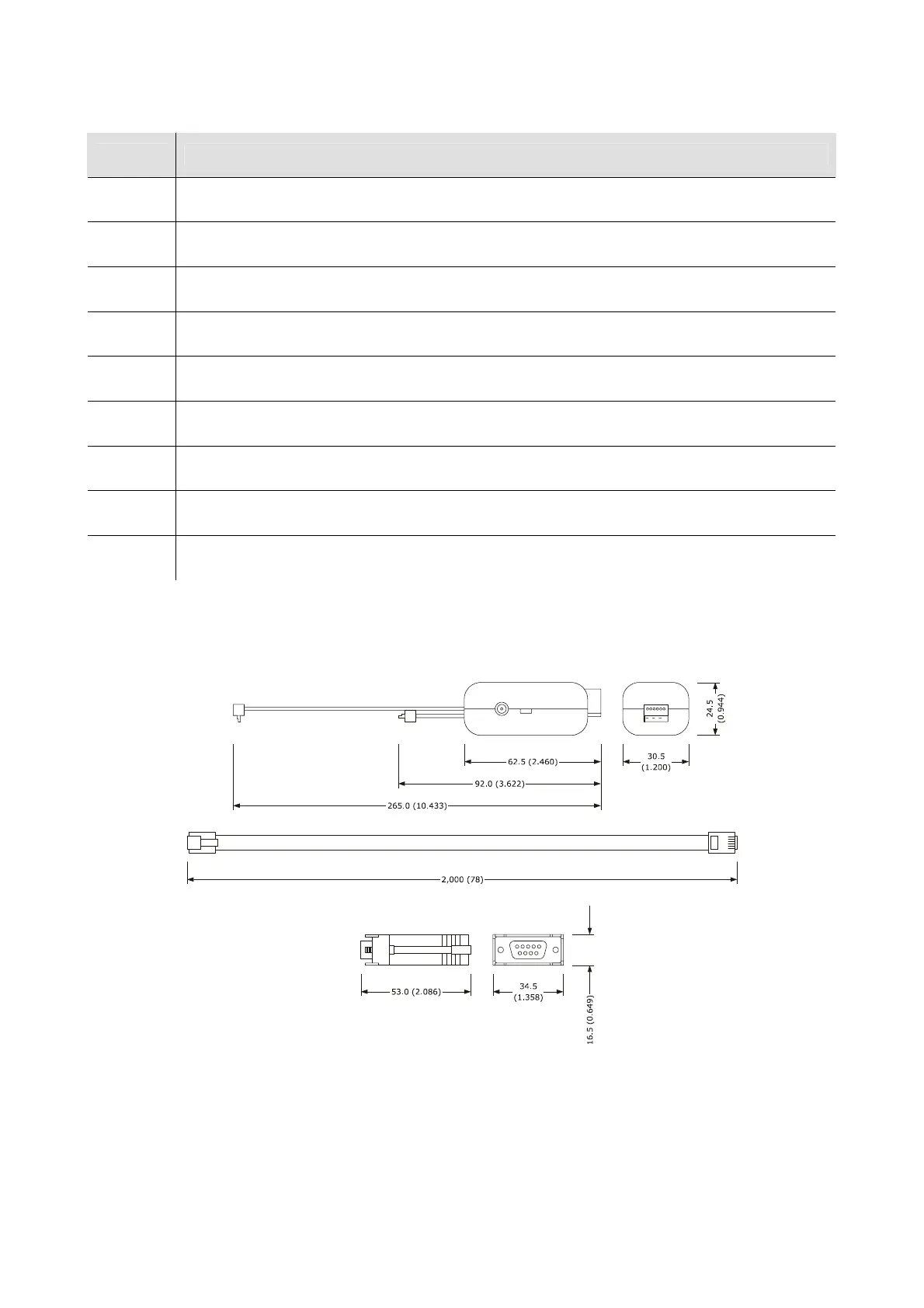

The following drawing illustrates EVPROG01 dimensions; these are expressed in mm (in).
