EVCO S.p.A. EV3 MVC & EVD MVC | Application manual ver. 1.0 | Code 144EV3MVI104
page 24 of 72
Description of connectors for EVJ LCD

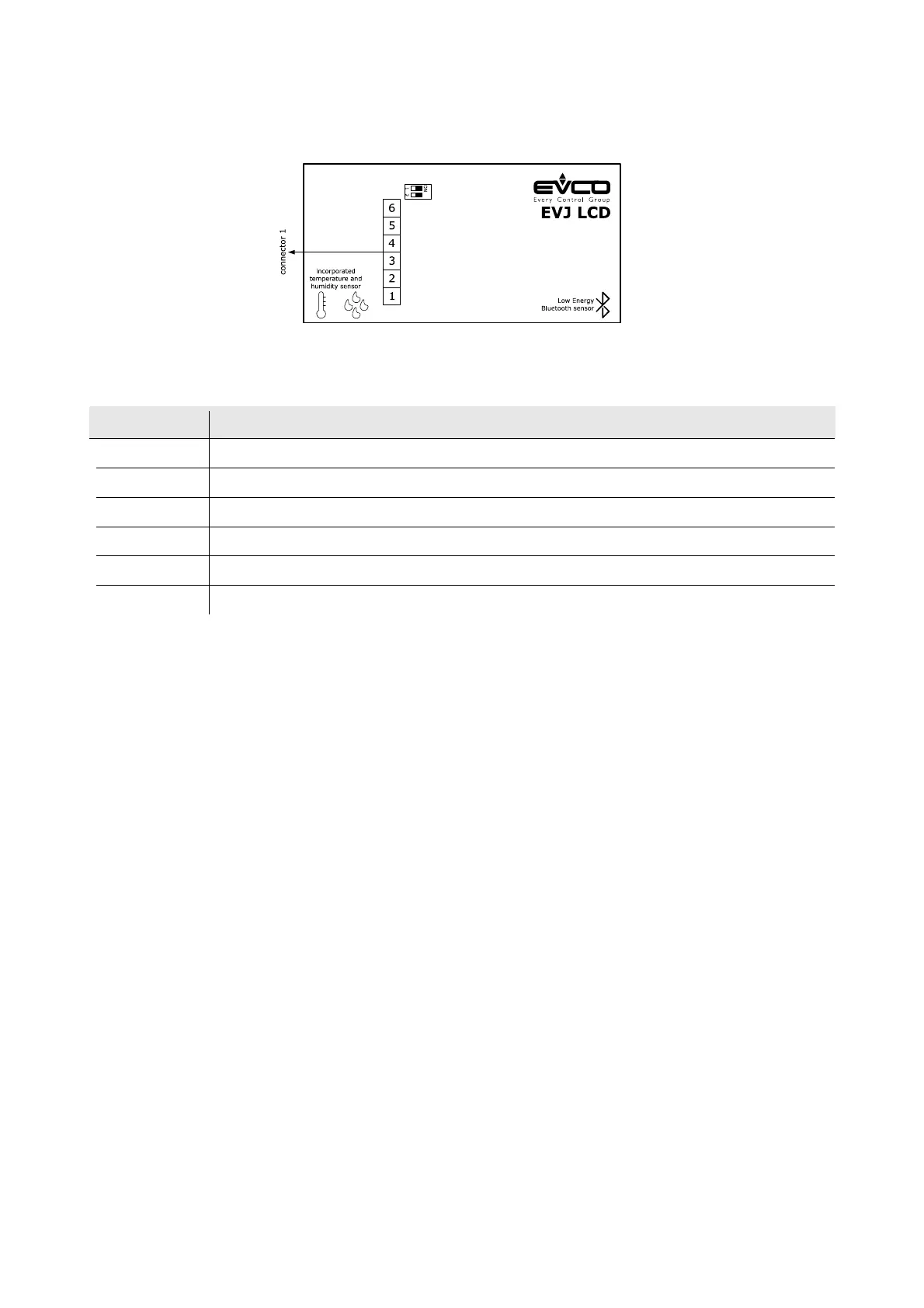

The picture below shows the layout of the EVJ LCD connectors.
The table below describes the EVJ LCD connectors. La tabella fa riferimento alla dotazione massima.
Connector 1
Part Description
1 INTRABUS port reference (GND)
2 INTRABUS port signal
3 EVJ LCD (12 VAC/DC) power supply; if EVJ LCD is fed by DC power, connect the negative pole
4 EVJ LCD (12 VAC/DC) power supply; if EVJ LCD is fed by DC power, connect the positive pole
5 unused
6 unused
