Evco EVlink Wi-Fi - 1 Introduction; Initial Information; Main Features; Schematic Diagram

EVCO S.p.A. EVlink Wi-Fi | Installer manual ver. 1.1 | Code 144IF25TWXE114
page 4 of 18
1 INTRODUCTION
1.1 Initial information
EVlink Wi-Fi is a hardware module with built-in Wi-Fi connectivity that can be connected to EVCO controllers to access the functions of the EPoCA cloud system. It is
available with the TTL or RS-485 communications port and can be powered by the controller or the mains, depending on the power of the controller. If powered by the
mains, ensure the correct 12 VAC/15 VDC cabling is used.
1.2 Main features
Purchasing code EVIF25TWX EVIF25SWX
Power supply controller-powered
(depending on the type of controller)
or independently powered 12 VAC/15 VDC
controller-powered
(depending on the type of controller)
or independently powered 12 VAC/15 VDC
Clock • •
Communications port TTL MODBUS RS-485 MODBUS
N.B.
The compatibility of the controller with the EPoCA remote monitoring system and the possibility of powering EVlink Wi-Fi from the controller depend on the
type of controller. See the document "EPoCA - List of compatible controllers" available on the website www.evco.it and/or the label on the controller.

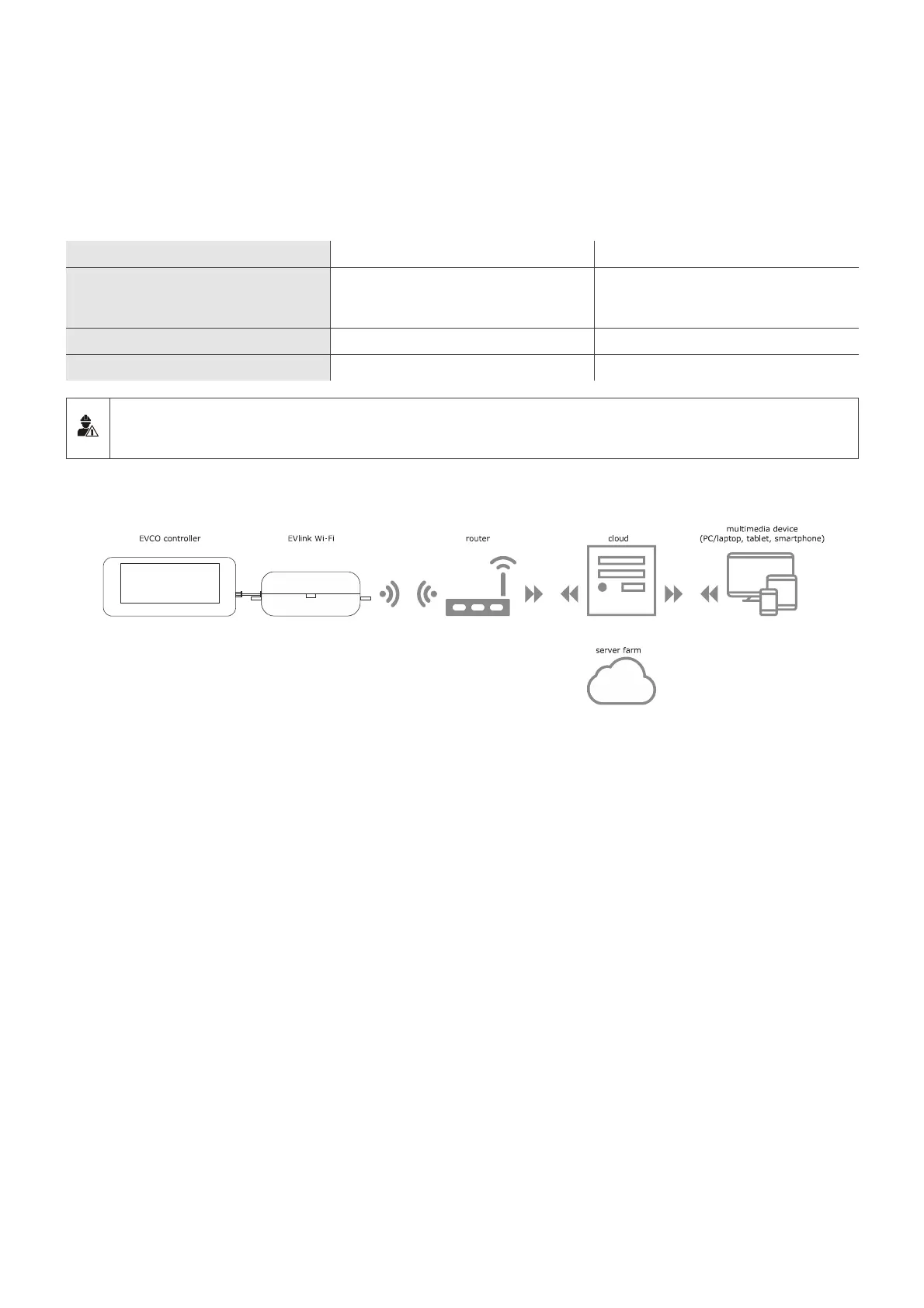

1.3 Schematic diagram
