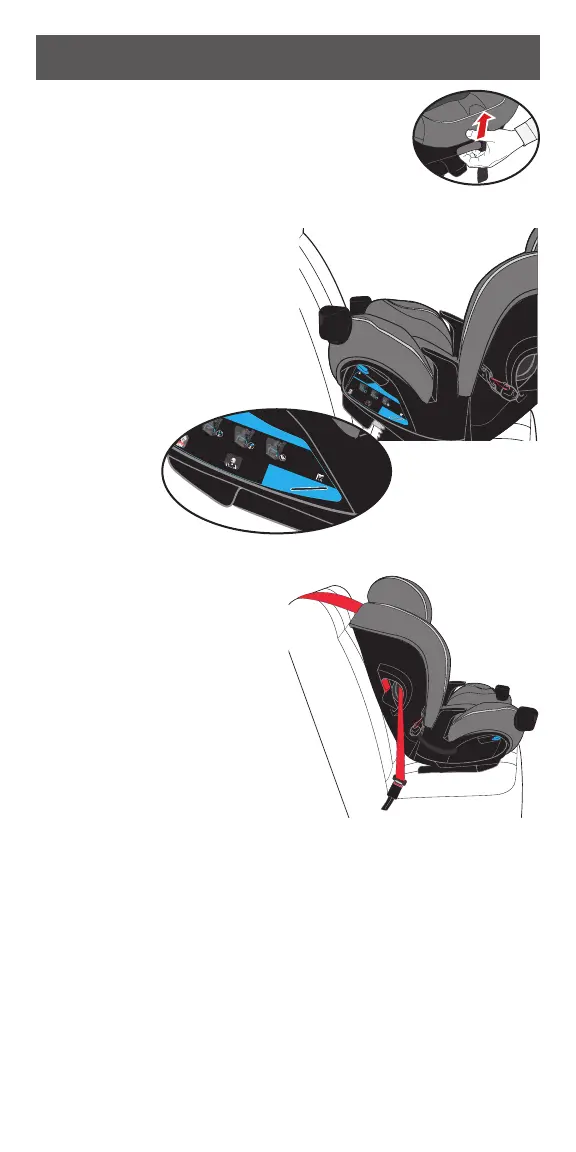

To raise or lower the recline, pull the
recline handle on the front edge of
the seat and push or pull seat into the
desired recline position as indicated
below:
• Rear-Facing:
The seat is
in one of the three rear-
facing recline positions,
so that the level line
is parallel to the
ground.
• Forward-Facing: T
he
seat is in the fully
upright position as
shown.
Reclining Child Restraint
Shoulder
straps must
be at or just
below child’s
shoulders
1,8 - 18,1 kg (4 - 40 lbs)
43 - 102 cm (17 - 40 in)
MUST be level with
ground with Rear Facing
installations
REAR FACING LINE
Top of head
MUST be 2.5 cm
(1 in.) or more
below top of
headrest or shell
Chest clip
25808432 8/19
Lap Shoulder Belt
LATCH / UAS
Lap Belt
Route shoulder belt
only through lock off.
See user manual for
additional information.
LOCK OFF
REAR FACING
BELT PATH
Shoulder
straps must
be at or just
below child’s
shoulders
1,8 - 18,1 kg (4 - 40 lbs)
43 - 102 cm (17 - 40 in)
MUST be level with
ground with Rear Facing
installations
REAR FACING LINE
Top of head
MUST be 2.5 cm
(1 in.) or more
below top of
headrest or shell
Chest clip
25808432 8/19
Lap Shoulder Belt
LATCH / UAS
Lap Belt
Route shoulder belt
only through lock off.
See user manual for
additional information.
LOCK OFF
REAR FACING
BELT PATH
