22 23
Using with the 5-pt Harness
Lower Anchor Bar
Lower Anchor Bar
Near Side

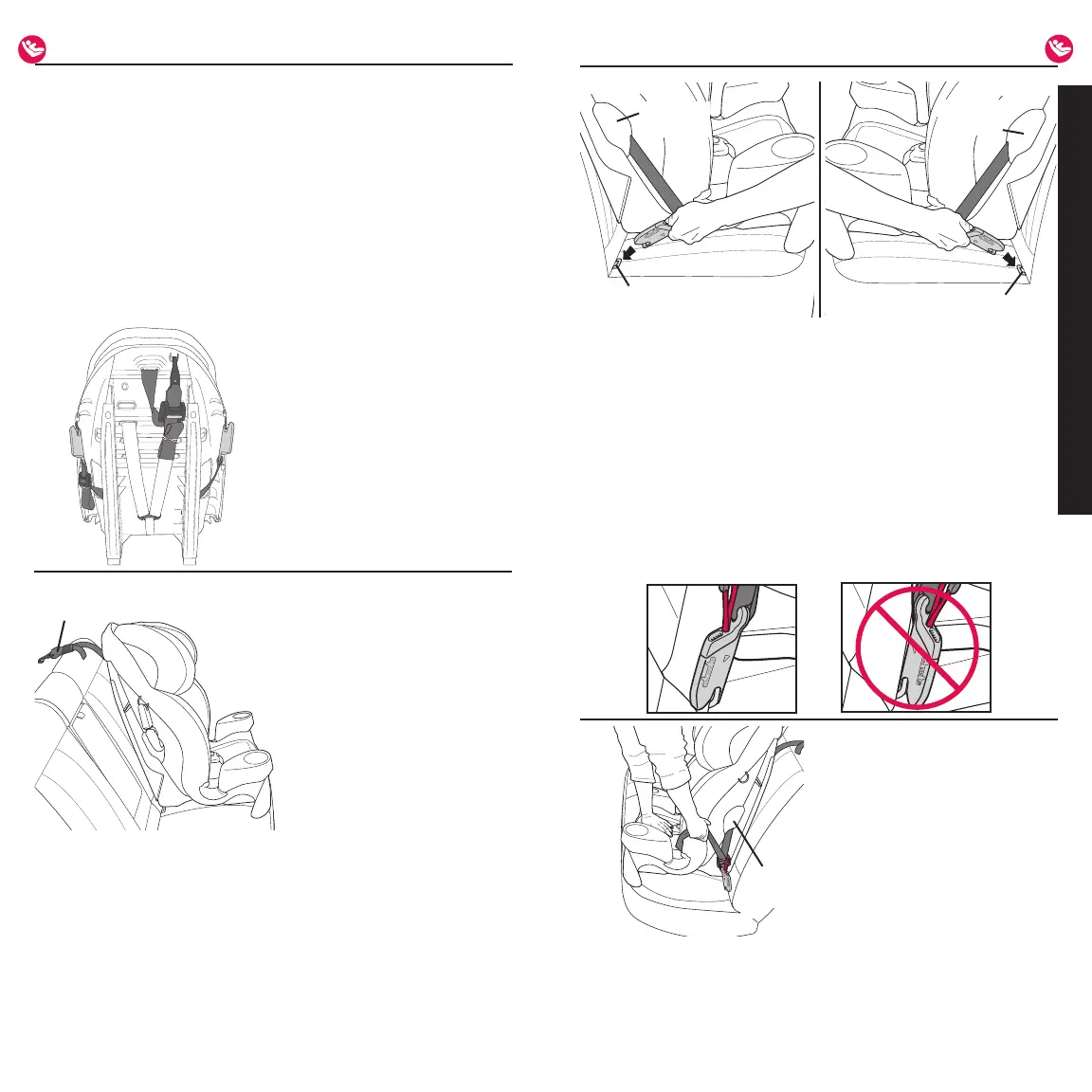

3. Attach Quick Connectors.
With the Quick Connector harness through the upper
belt path, as shown above, push a Quick Connector
onto the Lower Anchor Bar on each side of the child
restraint.
Note: You may need to vary the angle of the Quick
C
onnectors, as shown above, to attach to the anchor.
IMPORTANT: Make sure both LATCH Quick
Connectors are facing upward, above the LATCH
guide, as shown, and the straps are not twisted.
Far side
Installation with Quick Connectors
4. Secure the child
restraint.
Using your full weight,
push the child restraint
firmly into the vehicle seat
while pulling up on the
Quick Connector Strap to
tighten.
Upper
Belt Path
IMPORTANT: To properly secure this child restraint, it
MUST NOT move more than 25 mm (1 inch) from side-to-
side or from front-to-back at the upper belt path. If you
can not tightly secure the child restraint, try again, move it
to another location, or install with vehicle seat belt.
Upper
Belt Path
Upper
Belt Path
Installation with Quick Connectors
Correct Incorrect
1.
Disconnect Tether
Hook from the back
of the child restraint.
2.
Place the child
restraint in position.
Set child restraint on
vehicle seat, as shown.
Lay the Tether Strap over
the back of the vehicle
seat.
Tether
Strap
IMPORTANT:
• Some vehicle manufacturers have lower maximum
weight ratings for LATCH anchors. Consult your vehicle
owner’s manual, or call the vehicle manufacturer, to
confirm the limits on your vehicle’s LATCH anchors.
• If you are using the vehicle seat belt to secure the child
restraint, DO NOT use the Quick Connectors.
• Install this child restraint with the vehicle seat belt
(NOT Quick connectors) if the child weighs more than
22.6 kg (50 lbs).
To Next Page
