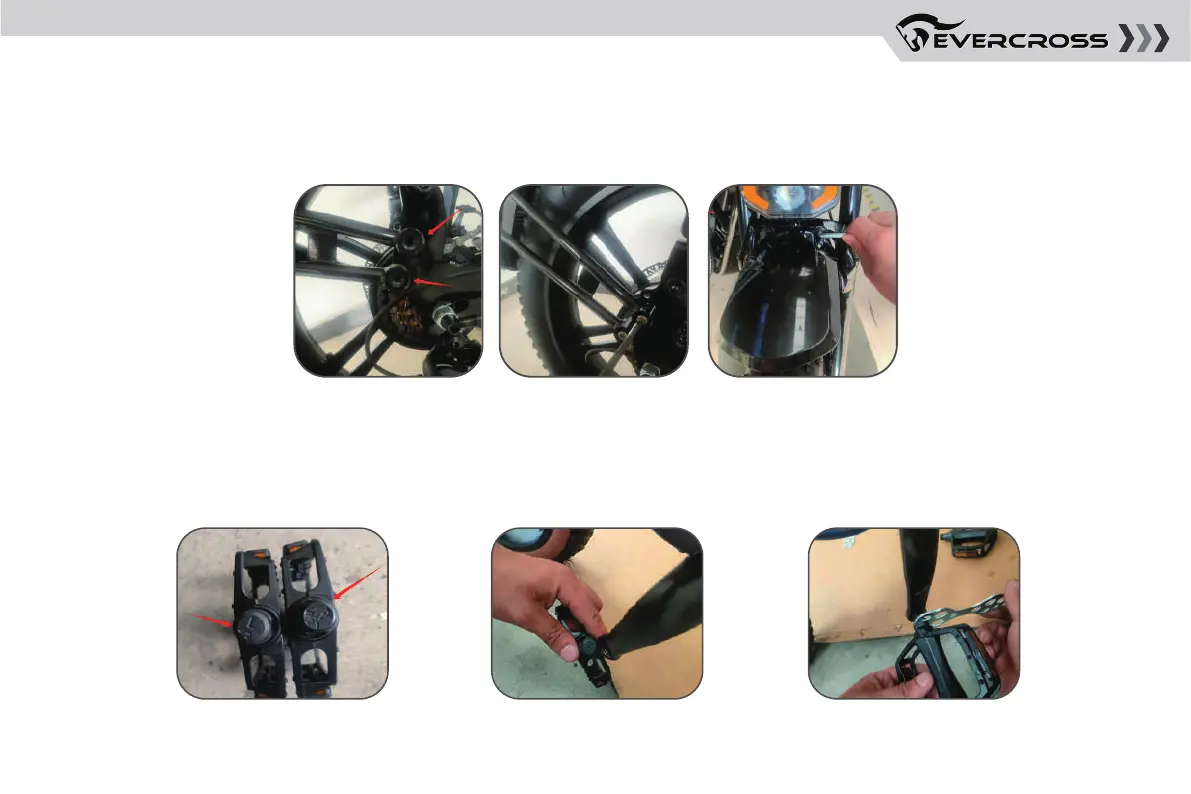

4.Mud board installation
Note: The longer bracket is for the front fender, and the shorter bracket is for the rear fender.
Note: The longer bracket is the front fender and the shorter one is the rear fender.
(1) Align the holes on the side fender brackets with the holes on the front insert.
(2) Then pre-install with mud plate screws.
5. Pedal installation
(1) The mark "R" on the pedal shaft is the right pedal, and the mark "L" is the left pedal.
(2) The pedals are pre-installed first and then tightened with a multi-function wrench.
(3) Tighten with a No. 5 Allen wrench.
