EVERGLIDER 253CC - Page 59

59
Electrical System
Fishbox
Press the switch once to activate the pump that
drains the forward shbox. Press the switch again
to turn the pump o. To avoid damage to the
pump, always monitor the water level as the pump
drains the shbox and turn it o immediately when
draining is complete.
Baitwell - Recirc
Press the switch once to activate the pump that
recirculates the water in the baitwell. Press the
switch again to turn the pump o.
Baitwell - Pump
Press the switch once to activate the baitwell pump.
Press the switch again to turn the pump o.
Baitwell - Lights
Press the switch once to activate the light in the
baitwell. Press the switch again to turn the light o.
Water - Fresh
Press the switch once to activate the fresh water
pump that supplies the fresh water washdown
hose connector in the cockpit and the windshield
washer. Press the switch again to turn the pump
o. The pump is the pressure demand type. A
pressure switch automatically controls the water
pump when the system is activated and properly
primed.
Water - Raw
Press the switch once to activate the raw water
washdown pump that supplies the raw washdown
hose connector in the cockpit. Press the switch
again to turn the pump o. The pump is the pres-
sure demand type. A pressure switch automati-
cally controls the water pump when the system
is activated and properly primed.
Windlass UP/Down Switches
Momentary switches that control the windlass
which is mounted to the deck forward of the rope
locker. Press and hold the UP switch to pull the
anchor line in. Press and hold the DOWN switch
to pay the anchor line out. The switches automati-
cally return to the OFF position when released.
Windshield - Wiper
Press the switch once to activate the windshield
wiper. Press the switch again to turn the wiper o.
Windshield - Washer
Press and hold the switch to activate the solenoid
that sprays water on the windshield washer from
the fresh water system. Release the switch to
deactivate the washer.
Notice:
The fresh water system must be activated
for the windshield washer to work.
Windshield UP/DOWN
Momentary switches that activate the hydraulic
rams that raise and lower the windshield to provide
ventilation for the helm area and/or improve vis-
ibility. Press and hold the UP switch to raise the
windshield. Press and hold the DOWN switch to
lower the windshield. The switches automatically
return to the OFF position when released.
Spreader Lights - Fwd
Press the switch once to activate the overhead
light at the front of the hardtop that illuminates
the forward cockpit. Press the switch again to turn
the light o.
Spreader Lights - Aft
Press the switch once to activate the overhead
light at the rear of the hardtop that illuminates
the aft cockpit. Press the switch again to turn the
light o.

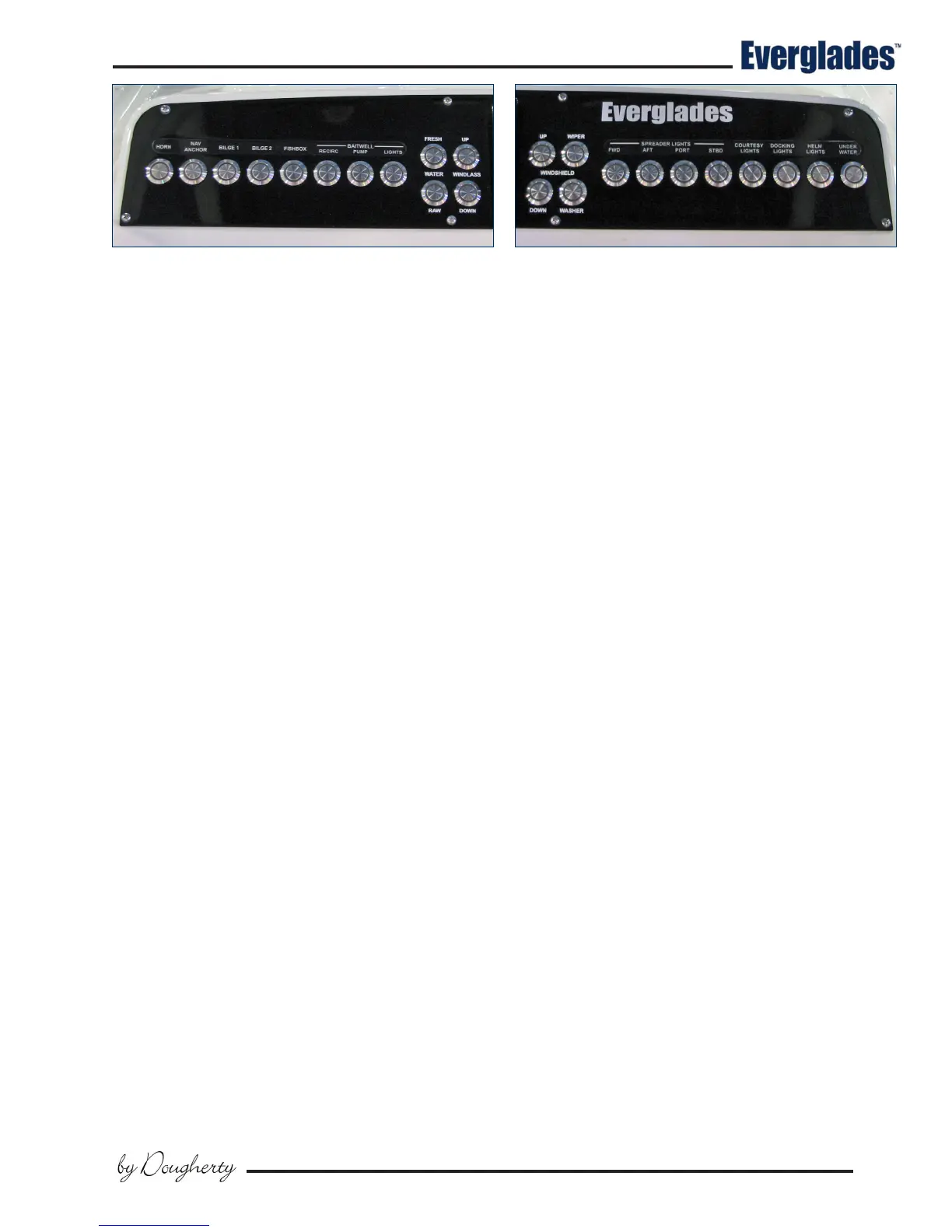

Port Side Helm Switches Starboard Side Helm Switches
