Electrical System
Spreader Lights - Port
Press the switch once to activate the overhead
light on the port side of the hardtop that illumi-
nates the port side cockpit. Press the switch again
to turn the light o.
Spreader Lights - Stbd
Press the switch once to activate the overhead
light on the starboard side of the hardtop that
illuminates the starboard side cockpit. Press the
switch again to turn the light o.
Courtesy Lights
Press the switch once to activate the blue LED
lights that illuminate the cockpit area. Press the
switch again to change the blue lights to white.
Press the switch again to turn the light o.
Docking Lights (Optional)
Press the switch once to activate the lights in the
hull on each side of the bow that illuminate the
area in front of the boat for better visibility while
docking at night. Press the switch again to turn
the lights o.
If the docking lights option is not installed, this
switch is reserved for additional 12 volt acces-
sories.
Helm Lights
Press the switch once to activate the red LED
lights in the hardtop liner. Press the switch again
to turn the lights o.
Red lights have less eect on night vision and
should be selected if you need to illuminate
the helm area while navigating at night.
Underwater Lights (Optional)
Press the switch once to activate the blue LED un-
derwater lights in the stern below the water line.
Press the switch again to change the blue lights to
white. Press the switch again to turn the lights o.
If the underwater lights option is not installed,
this switch is reserved for additional 12 volt ac-
cessories.
12 volt Receptacle
Provides electrical current for portable 12 volt
equipment. The receptacle is located on the
starboard side of the helm near the windshield.
MP3 Connection
Located on the starboard side of the helm near
the 12 volt receptacle. Provides an input for MP3
players to connect to the boat stereo system.
Additional DC Switches and Panels
Trim Tab Switch
Located in the helm. This switch controls the trim
tab planes located on the transom of the boat. It
is protected by a fuse located in the battery switch
fuse panel. Refer to the Helm Control Systems
chapter for detailed information on the operation
of the trim tab controls.
Engine Trim and Tilt Switch
Located in the helm. This switch is typically
installed in the engine throttle and shift control
handle. It controls the trimming and tilting of the
engine. Refer to the Helm Control Systems chapter
and the engine owner’s manual for information
regarding the proper use of the tilt and trim switch.

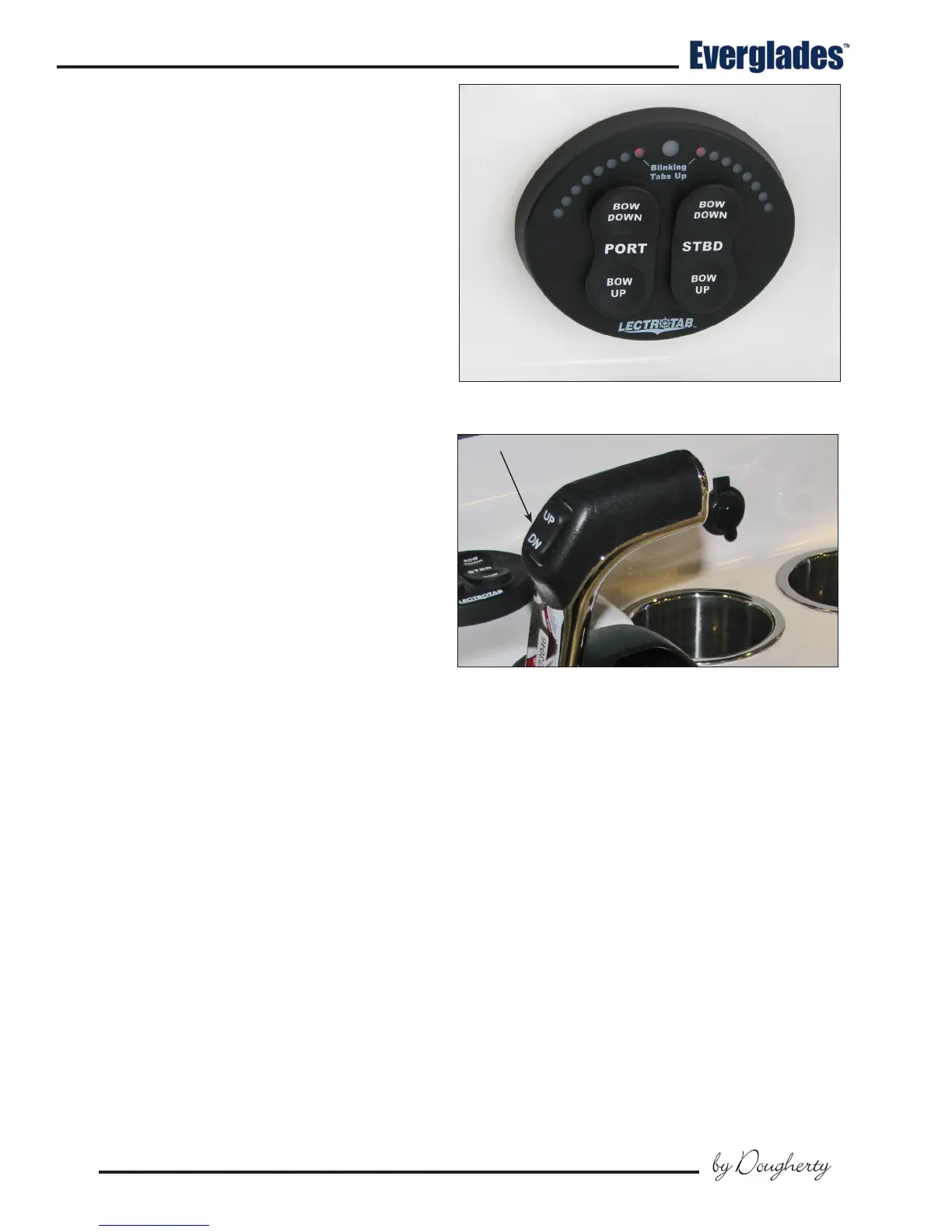

Typical Trim Tab Switches
Typical Power Tilt & Trim Switch
