Assembly Instructions

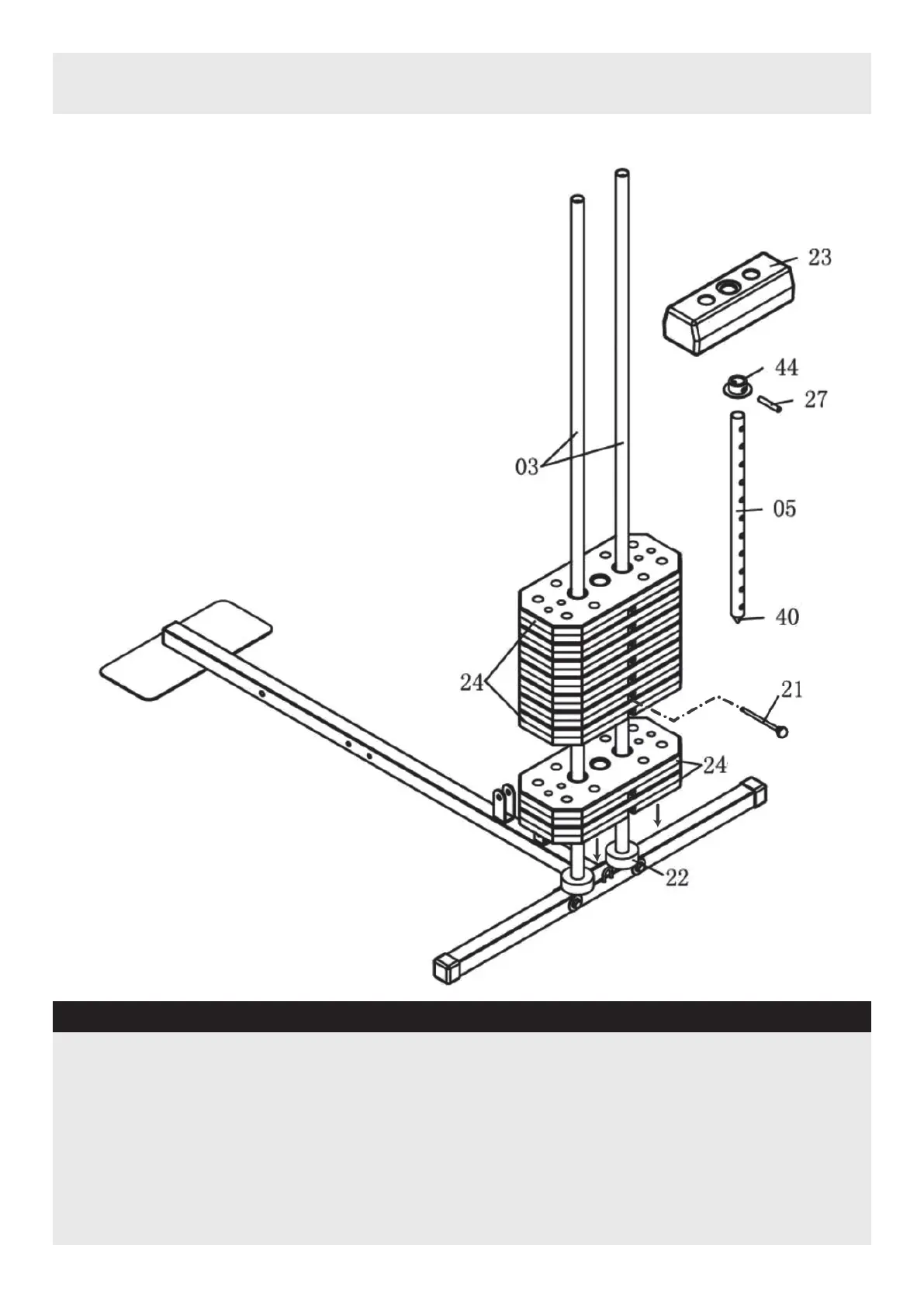

Step 2
a. Slide the two Rubber Rings (22)
onto the two Weight Guide Tubes
(3).
b. Slide the nine Weight Plates
(10LB) (24) down Weight Guide
Tubes (3).
c. Slide Selector Shaft Bushing (44)
down Selector Shaft (5) at First
hole fix with Selector Shaft Pin (27).
d. Insert Selector Shaft (5) into hole
of Weight Plate (24).
e. Slide Top Weight Plate (23) down
Selector Shaft (5). Insert Weight
Shaft Pin (21) into hole of desired
Weight.
