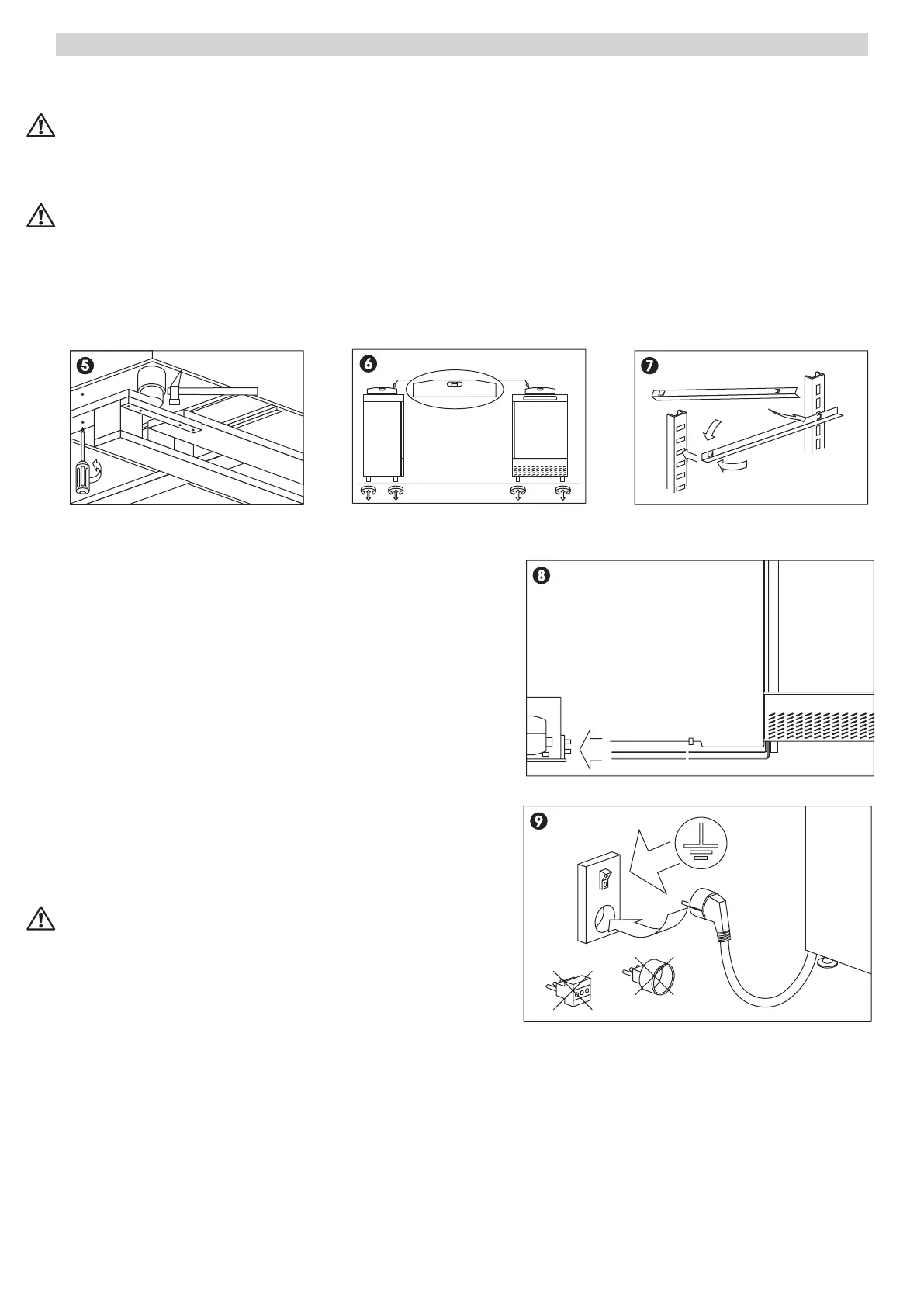

Specific positioning procedures
- remove packing material (polyethylene, cardboard box, crate, cage)
Polyethylene is potentially dangerous to children
- remove accessories from inside the unit
- take away the wooden basement: by means of a hammer unnail the feet-block hinder ledge, tilt the cabinet to one side and loosen
the two thread-forming screws (Fig.5), drag the cabinet from the back side holding the basement still until the 4 feet have gone out
from the containing holes, slightly tilt the cabinet backward and take the basement away pulling it from the front side.
-
use gloves when handling wooden packing materials and the wooden base to protect the hands from splinters
- position the appliance with the help of a spirit level. Adjust the leveling feet on the metal base of the unit if necessary (Fig.6)
- remove the protective PVC film from the external surfaces of the unit
- position the shelf runners in the holes in the uprights (Fig.7)
- insert the condensate collection tray in the relevant runners located beneath the unit.
3.2.1 Spm blast chillers and schock freezers (Fig.8)
- position the unit as described above (Figs. 5-6-7)
- N.B.: the plant is factory pressurized with refrigerant
- arrange the two pipes coming out of the unit for subsequent connection
to the relevant lines
- depressurize the circuit and then charge it with refrigerant
- make the electrical connections between the appliance and
condenser.
3.3 WIRING AND ELECTRICAL HOOK-UP
The electrical plant and electrical hook-up operations must be performed
by a qualified electrician
For safety reasons adhere to the following indications:
- check that the electrical plant is suitably sized for the absorbed power
of the unit
- if the electrical socket and the plug on the appliance power cord are
incompatible, change the plug with a suitable component, ensuring the
replacement part is of the approved type
- do not use reductions or multi-way adapters (ABF 03)(Fig.9)
It is important to connect the appliance correctly to an efficient earth
system executed in compliance with the relevant legislation.
3.4 SET-UP OPERATIONS
To avoid errors and accidents, perform a series of checks for possible
damage sustained during transport, installation and hook-up operations
before starting up the unit.
Preliminary checks
- check the condition of the power cord (no cuts or chaffing)
- check that the feet, door hinges and shelf supports are stable
- check the condition of internal and external components (pipelines, heat exchanger elements, fans, electrical components,
etc.); check also that all parts are firmly fixed into position
- check that the door seals are not damaged (broken or scratched) and that the doors close and are sealed properly
- make sure pipelines, unions are in perfect condition (SPM special model).
The user must also observe the following instructions to obtain the best operation from the appliance:
