EVGA X299 Micro (131-SX-E295)
- 37 -

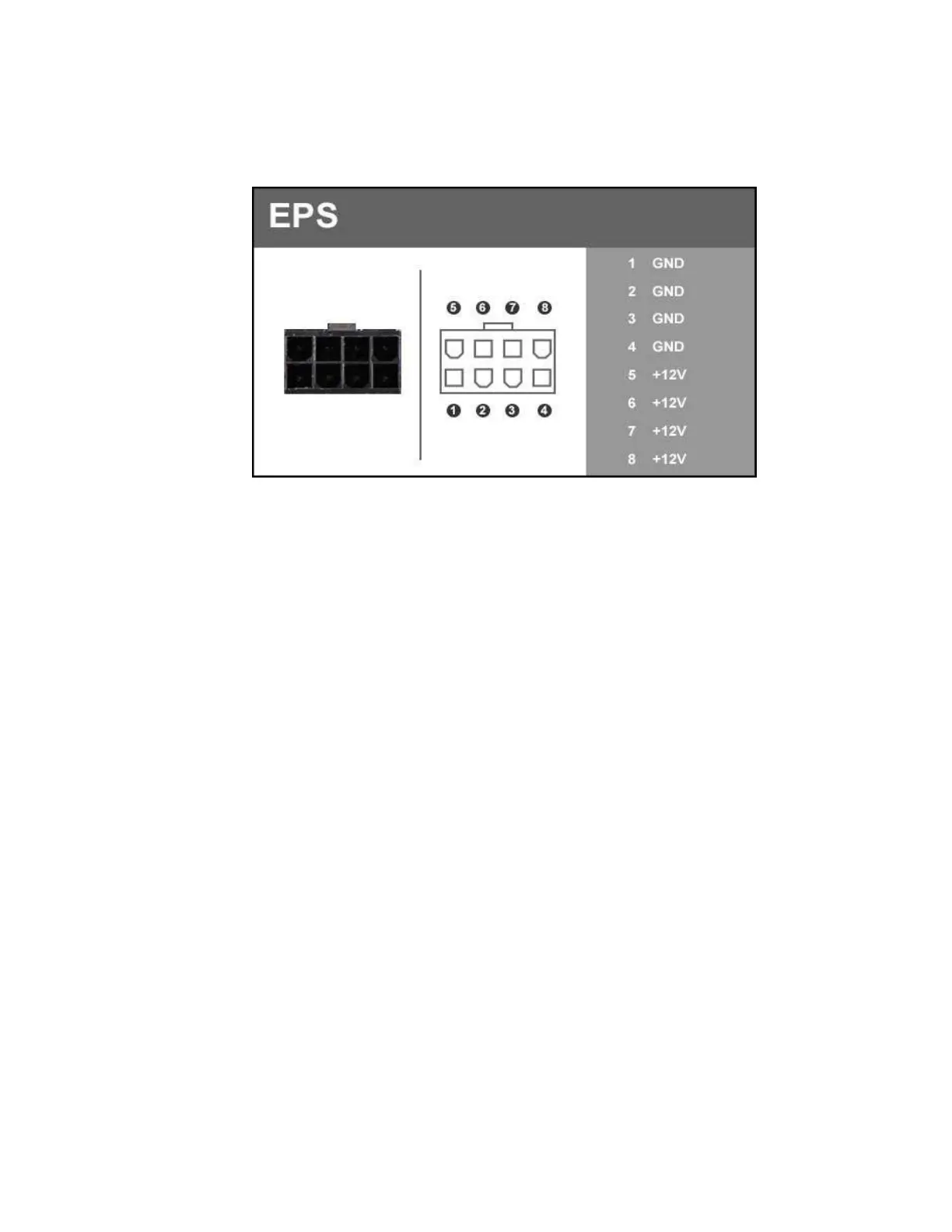

EPS 8-pin 12V Power (PWR 8P)
EP
S PWR 8P, the 8-pin ATX 12V power connection(s), is used to provide
power to the CPU. Align the pins to the connector and press firmly until
seated. The secondary EPS, if present, is optional for improved overclocking.
Please remember to make sure that the tab on the EPS socket is aligned with
the release clip on the cable. NOTE: If the tab and release clip are on opposite
sides, yet the power connector fits, then you are using a PCI-E 8-pin cable,
which WILL damage the board if powered on. Please review installation
instructions from your power supply manufacturer to verify which connectors
may be used for the CPU power.
