Evinrude & Johnson E75DSLSCS User Manual

251
MIDSECTION
STERN BRACKET
12

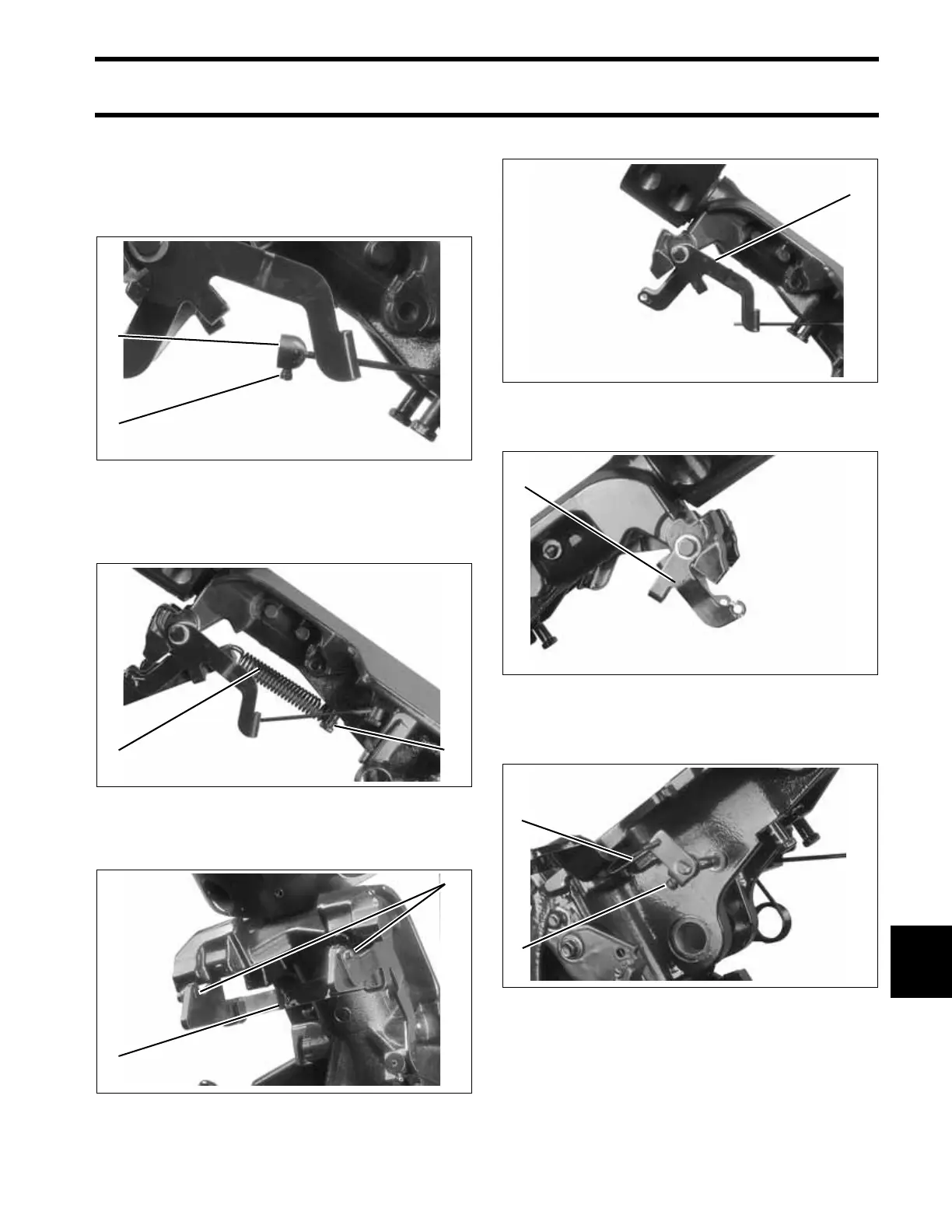

Swivel Bracket Disassembly
(Manual Tilt)
Loosen set screw and remove reverse lock
release collar.
Remove reverse lock springs from locking lever
and reverse lock spring screws.
Remove cotter pins, pins and locking lever.
Remove starboard reverse lock link.
Remove port reverse lock link.
Loosen bellcrank set screw, remove bellcrank and
handle link rod.
1. Reverse lock release collar
2. Set screw
006697
1. Reverse lock springs
2. Reverse lock spring screws
006700
1. Locking lever
2. Pins
006699
1
2
21
2
1
1. Starboard reverse lock link 006696
1. Port reverse lock link 006695
1. Handle link rod
2. Bellcrank setscrew
006694
1
1
1
2
