MIDSECTION
STERN BRACKET
12
Swivel Bracket Assembly
(Manual Tilt)
Reverse Lock and Trail Lock Reference
Place port and starboard trail lock shaft bushings
in the swivel bracket.
Apply blue Nut Lock to screw and assemble port
trail lock lever on trail lock shaft with screw,
washer and nylon washer. Install in swivel bracket
from port side. DO NOT tighten screw at this time.
Refer to Reverse Lock and Trail Lock Refer-
ence on p. 253 for correct orientation of reverse
lock and trail lock components.
Assemble reverse lock pivot shaft, reverse lock
lever rod and bellcrank shaft spacer as shown.

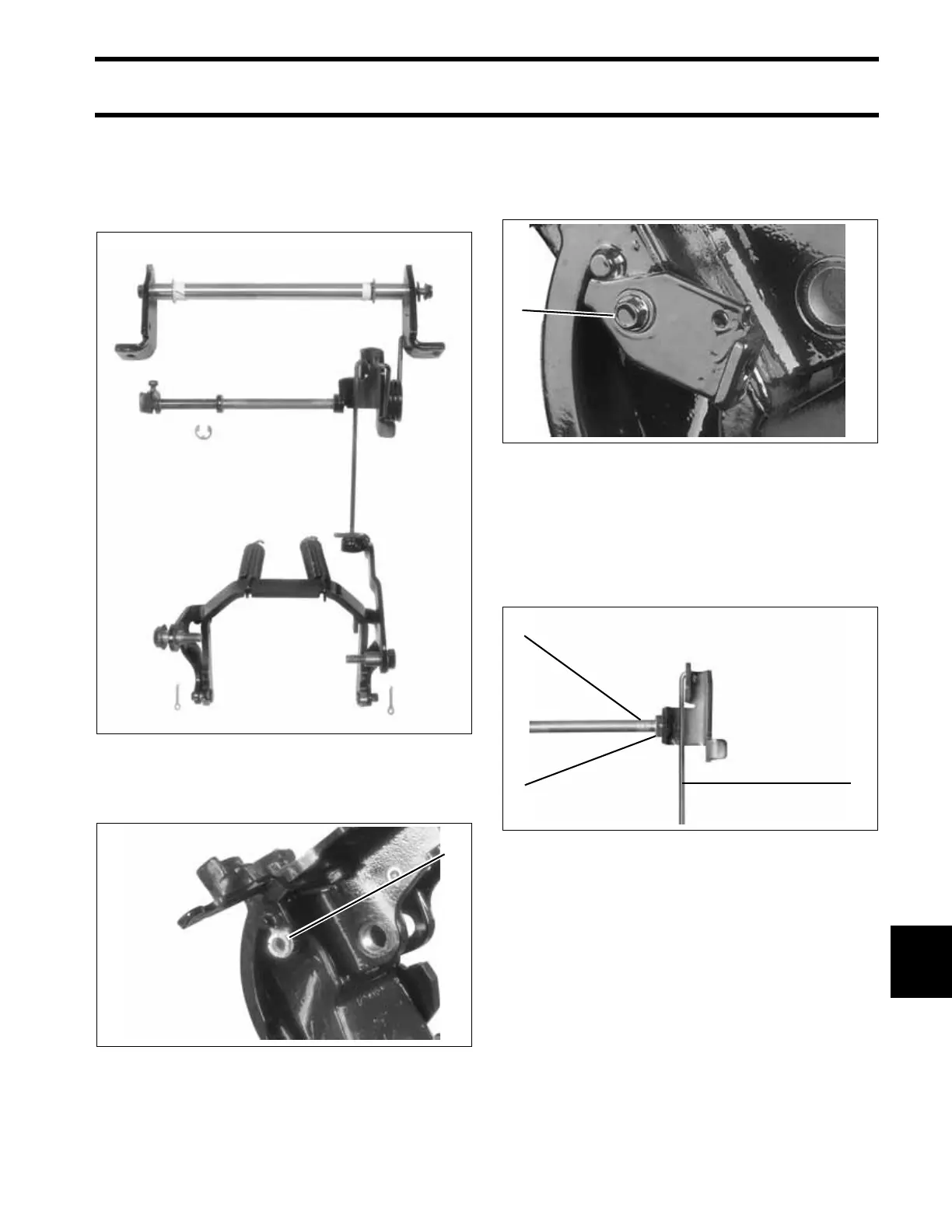

1. Component reference view 2 006686
1. Trail lock shaft bushings (port side shown) 006687
1
1. Port trail lock lever and shaft 006704
1. Reverse lock pivot shaft
2. Bellcrank shaft spacer
3. Reverse lock lever rod
006690
1
3
1
2
