296
TRIM AND TILT
TRIM AND TILT SERVICE

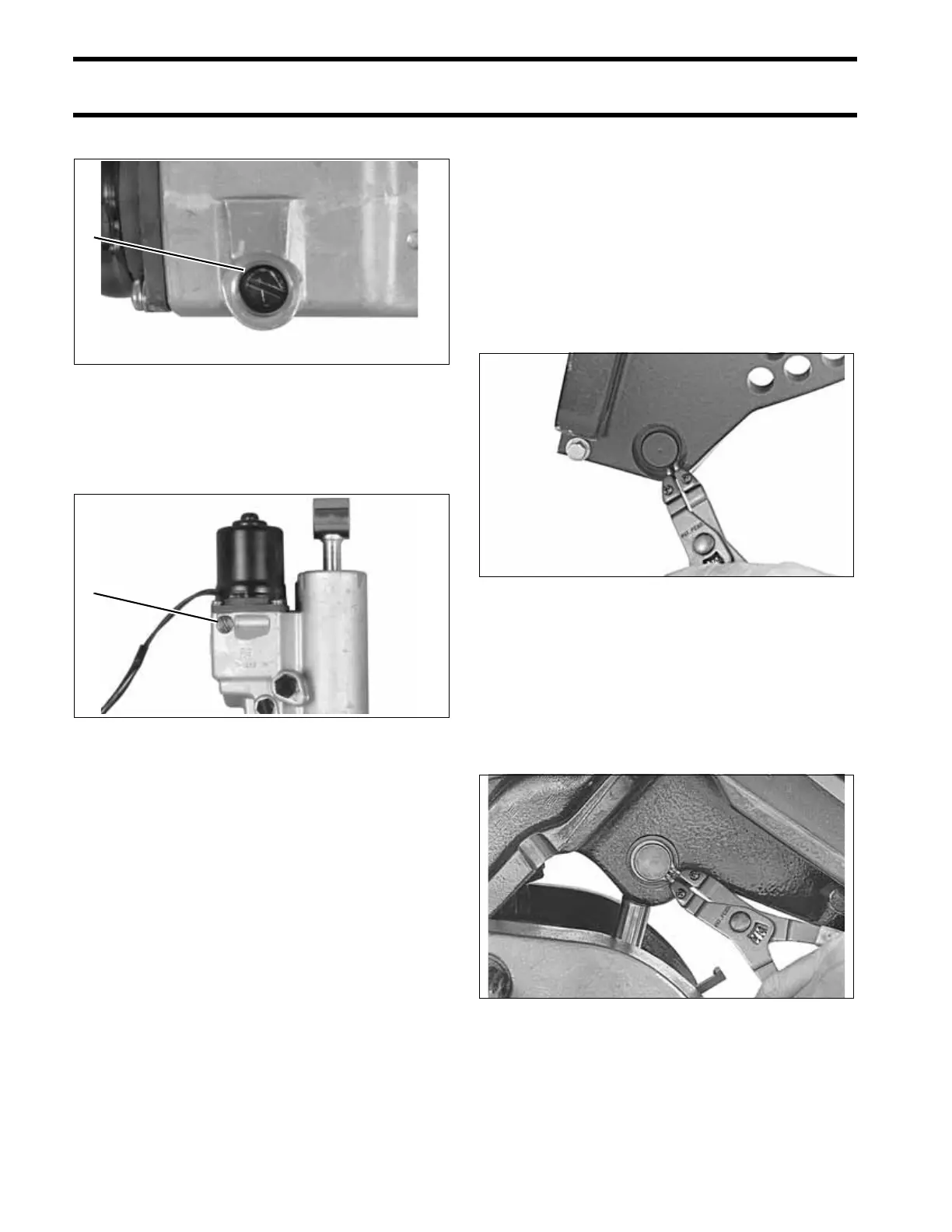

Install new retaining ring in groove.
Fill the oil reservoir up to the fill plug with
Evinrude/Johnson Biodegradable TNT Fluid.
Install and tighten the fill plug. Do not torque the
plug at this time.
Run the motor, then recheck oil level. Cycle the
unit several times and check the oil level when the
cylinder is fully extended. Oil should be level with
bottom of fill port. Install and tighten the fill plug to
a torque of 45 to 55 in. lbs. (5.1 to 6.2 N·m).
Installation
Install the ground lead.
Place trim/tilt unit into position. Apply Triple-Guard
grease to the lower pin and install the pin.
If loosened, tighten the tilt tube nut to a torque of
45 to 50 ft. lbs. (61 to 68 N·m).
Install external snap rings on lower pin with sharp
edge of ring facing out.
Extend tilt cylinder rod to match with holes in
swivel bracket.
Apply Triple-Guard grease to upper pin and install
the pin.
Install external snap rings onto upper pin with
sharp edge facing out.
1. Retaining ring 004283
1. Reservoir cap 004278
1
1
25077
25064
