GEARCASE
SHIFT ROD ADJUSTMENT
SHIFT ROD
ADJUSTMENT

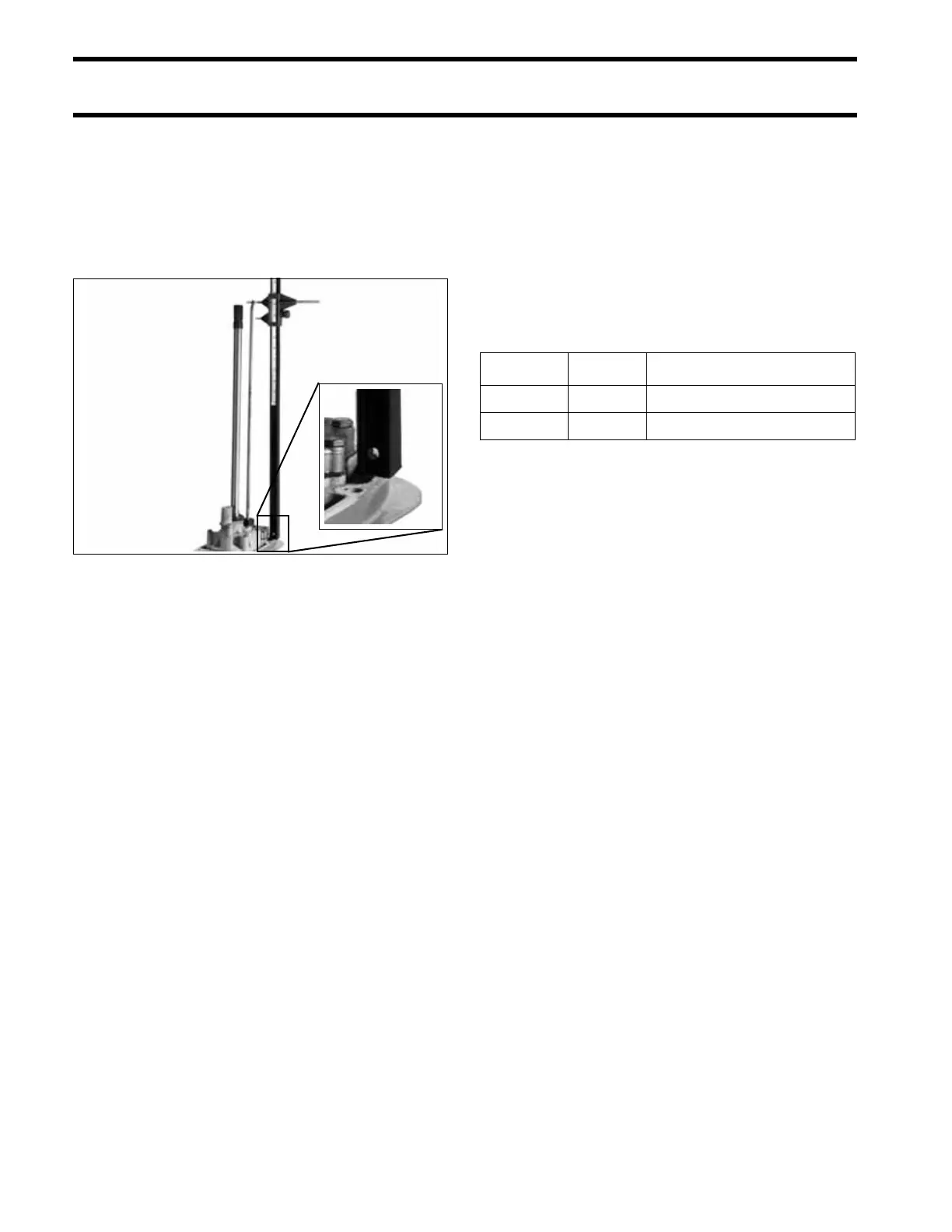

Check the shift rod height from the shift rod hole to
the surface of the gearcase using Universal Shift
Rod Height Gauge, P/N 389997.
With the gearcase in NEUTRAL, rotate the shift
rod up or down as necessary for correct adjust-
ment. Once correct height is achieved, rotate rod
one half turn or less to direct offset forward.
IMPORTANT: The NEUTRAL detent is a two-
step design. Make sure the NEUTRAL detent ball
is in the center step before checking shift rod
height.
Shift Rod Heights
COA6166
Model Type Height
20 in. (L) “S” 21.25 in. ± One-Half Turn
25 in. (X) “O” 26.25 in. ± One-Half Turn
To Next Page
